Factory Price Profession Pcb Transport Simulation Vibration Testing Machine for Carton Package
- T/T Credit Card
You May Like
-
Factory Price Electronic Products Electromagnetic Vibration Testing Machine
-
Factory Price Three Combined Climatic Chamber/Electrical Laboratory Apparatus
-
Factory Price 40kN Vibration Test System , Electrodynamic Shaker Tester With 100G Acceleration
-
Factory Price Ice 60068-2-6 Vibration Testing Systems
-
Factory Price Electrodynamic Vibration Exciter Modal Shaker
-
Factory Price Machine Manufactures Vibration Testing Systems
Product Details
| Brand Name | Hongjin | Place of Origin | Guangdong, China | |
| Model Number | HY-ZD-150D | Power | Electronic |
Wooden package,Non-fumigation
Product Description

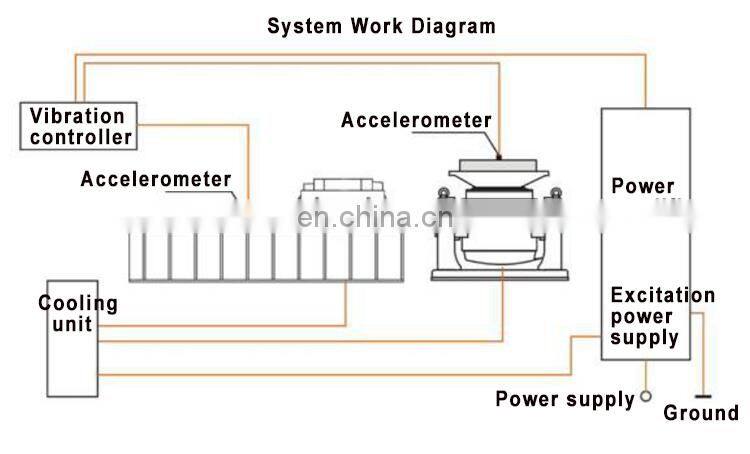

Test system composition
1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.
Technical performance of each part
(1) Vibration generator and power amplifi
| Maximum load | 120kg |
| Table weight | 1100kg |
| Mean time between failures | >3500 hours |
| Axial vibration isolation frequency | <3Hz |
| Magnetic leakage | ≤1mT |
| Impact displacement | 25mmP-P (maximum) |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 (100g) (no load) |
| Sinusoidal thrust | 2940N (300kg.f) |
| Random thrust | 2940N (300kg.f) |
| Impact thrust | 5880N(600kg.f) |
(2)Water smoothing station
| Table size | 600mm × 600mm (square) |
| Equivalent mass | About 30kg (connecting head) |
| Table thickness | 25 mm |
| Upper limit frequency | Sine 2000Hz, random 2000HZ |
| weight capacity | The test acceleration at 200kg is F=MA, the thrust must be less than F, |
| Countertop material | Aluminum alloy |

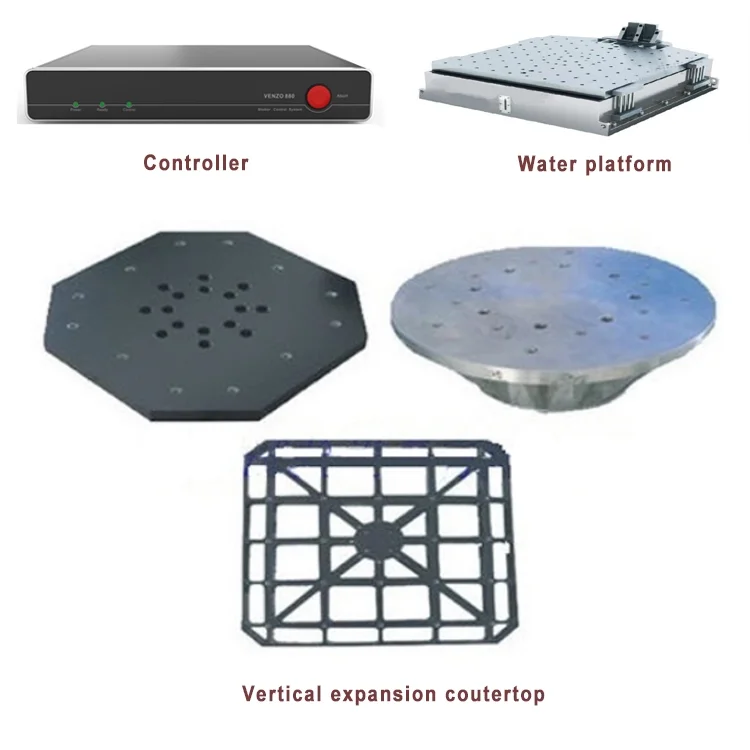

(3)Vertical expansion countertop
| Table size | 600mm × 600mm (method) |
| Equivalent mass | About 30kg (moving parts) |
| Table height | 140 mm |
| Upper limit frequency | Sine 1000Hz, random 1500HZ |
| Countertop material | Aluminum alloy |

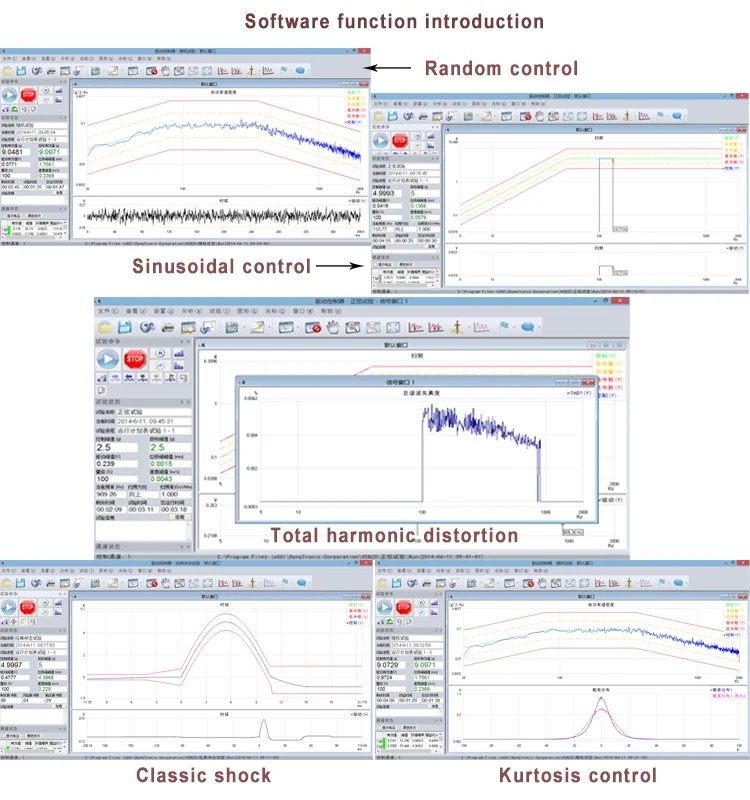

Software function introduction
Packaging & Shipping
Company Information
Certifications

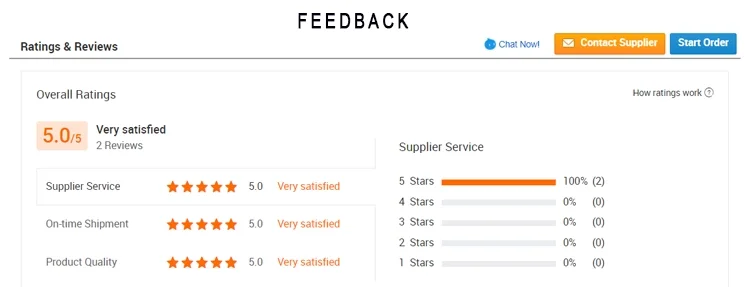

Customer Reviews
Company Profile
Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
