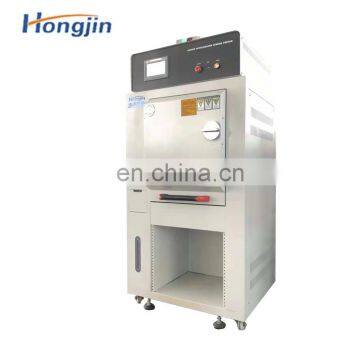

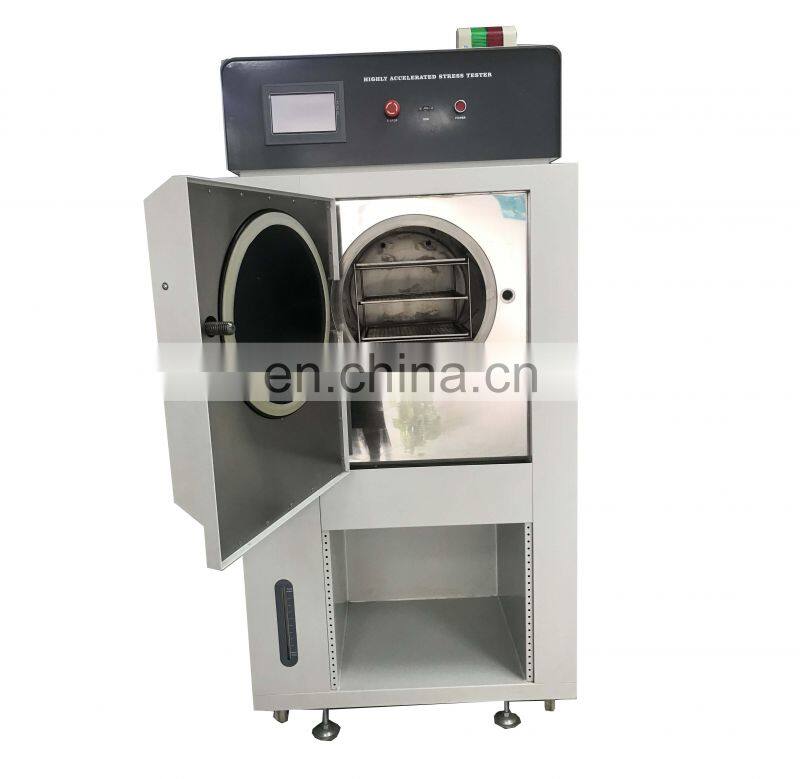

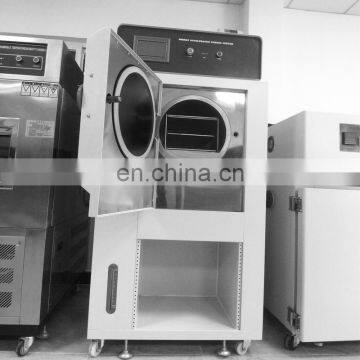

Laboratory Test Machine Hast Pressure Chamber

Standard wooden case

Climatic Hast high pressure accelerated aging testing chamber Price

Main Function

HAST test is generally called pressure cooker cooking test or saturated steam test. The most important thing is to test the test object under severe temperature, humidity (75%~100%RH) [saturated water vapor] and pressure environment. The product is resistant to high humidity, for printed circuit boards & FPC), for material moisture absorption test, high pressure cooking test, etc. For testing purposes, if the test object is a semiconductor, to test the moisture resistance of the semiconductor package, wait The test item is tested under the harsh temperature and humidity and pressure environment. If the half package is not good, the moisture will penetrate into the package along the interface of the colloid or colloid and the lead frame. Common causes of the cause: explosion effect, Corrosion caused by corrosion in the metallization area, short circuit caused by contamination between the pins of the package, etc.

Main feature

1. The imported double-temperature structure with high temperature resistant solenoid valve is used to minimize the failure rate.

 2. Independent steam generation chamber to avoid direct impact of steam on the product, so as not to cause partial damage to the product.

 3. The door lock labor-saving structure solves the shortcomings of the locking difficulty of the first-generation product disc handle.

 4. Cool air before the test; the design of the exhaust air in the test (air discharge in the test barrel) improves the pressure stability and reproducibility.

 5. Ultra long-term experimental running time, long time experimental machine running 1000 hours.

 6. Water level protection, through the test indoor water level Sensor to detect protection.

7.tank pressure design, the box body pressure (140 ° C) 2.65kg, in line with the water pressure test 6kg.

8. Two-stage pressure safety protection device, adopting two-stage combined controller and mechanical pressure protection device.

9.Safety protection button, emergency safety device, two-stage automatic pressure button

10. Support USB export data, history record three months of test data.

Studio size	HAST30:300mm x L500 mm Round test chamber The size of the whole machine is about:  1000x  800 x 1800 mm ( W * D *H)

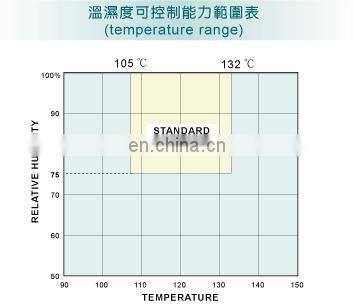

Temperature and humidity range	+100 ℃  ~ +147℃( Saturated vapor temperature ),75-100 % Vapor humidity
Temperature fluctuation	±0.3℃
Humidity distribution mean	3%
Pressurization time	0.00 Kg ~ 1.04 Kg / cm2  about 45 min
Temperature display accuracy	0.1℃
Pressure fluctuation	±0.02Kg
Use pressure range	1.2~2.89kg(including1atm)
Temperature and humidity operation control system
Controller	Imported LCD digital display P, I, D + S, S, R. Micro PLC + color touch screen
Range of accuracy	Setting accuracy: temperature ±0.1 °C, indicating accuracy: temperature ± 0.1 ° C, resolution: ± 0.1 ° C
Temperature Sensor	Platinum resistance PT100Ω
Heating system	Fully independent system, nickel-chromium alloy electric heating heater
Circulatory system	Steam convection hot row
Outer box materials	High quality carbon steel plate. Phosphating electrostatic spray treatment / SUS304 stainless steel matte line hairline treatment
Inner box materials	SUS316L stainless steel
Insulation material	Ultra-fine fiberglass

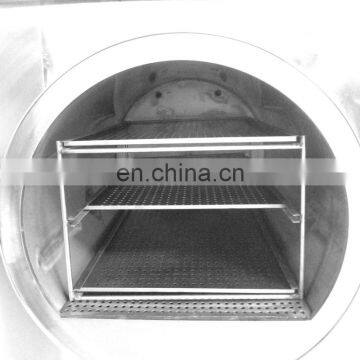

Standard configuration	1 sample rack, 3 layers of partition
safety protection	Overvoltage, short circuit, over temperature, over current protection
voltage	AC220V/ 50±0.5Hz single phase
