Iso 2019 Fast Rate Environmental Box Rapid Temperature Change Test Chamber
- T/T Credit Card
You May Like
-
Box Camera Temperature Control
-
Climatic Altitude Chamberclimatic Aging Test Room
-
Climatic Stability Test Room/chambers/instrument
-
Benchtop High Low Climatic Temperature Chamber
-
Pid Control Constant Temperature And Humidity Testing Equipment
-
FCC Detection Lab Testing Concrete Compressive Strength Testing Machine
Product Details
| Brand Name | HONGJIN | Place of Origin | China | |
| Model Number | HJ-7121 | Power | Electronic |
standard wooden cases
Product Description
Sample limit
This test equipment is suitable for:
Electrical, electronic products, components, components and materials are stored in high and low temperature environments
Adaptability tests for storage, transportation and use.
This test equipment is prohibited:
Testing or storage of flammable, explosive, volatile materials
Testing or storage of corrosive substance samples
Testing or storage of biological samples
Testing or storage of samples of strong electromagnetic emission sources
Technical Parameters
Model | HJ-80 (A~G) | HJ-150 (A~G) | HJ-225 (A~G) | HJ-408 (A~G) | HJ-608 (A~G) | HJ -800 (A~G) | HJ-1000 (A~G) |
Inside size WxHxD (cm) | 40x50*40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 | 100x100x80 | 100x100x100 |
Outside size W*H*D (cm) | 90x136x94 | 100x146x104 | 100x161x117 | 110x171x137 | 130x181x137 | 150x186x137 | 150x186x157 |
Temperature range | -70 degree ~ +100(150) degree | ||||||
Humidity range | 20%~98%R.H.(10%-98%R.H / 5%~98%R.H is the specific condition ) | ||||||
Accuracy/ uniformly | ±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H. | ||||||
Accuracy / volatility | ±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H. | ||||||
Heating / cooling time | About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is the specific condition ) | ||||||
Inside material | Stainless steel SUS 304 # | ||||||
Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||||
Cooling system | Air-cooled/ single-stage compressor(-20 degree) , wind, water cooled/two-stage compressor(-40~-70 degree) | ||||||
Protection | compressor overload switch, high and low pressure protection switch, over-humidity- temperature protection switches, fuses,warning system | ||||||
Accessories | recorder(purchase), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball | ||||||
Controller | TEMI300 digital controller from South Korea | ||||||
Compressor | France Taikang | ||||||
Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||

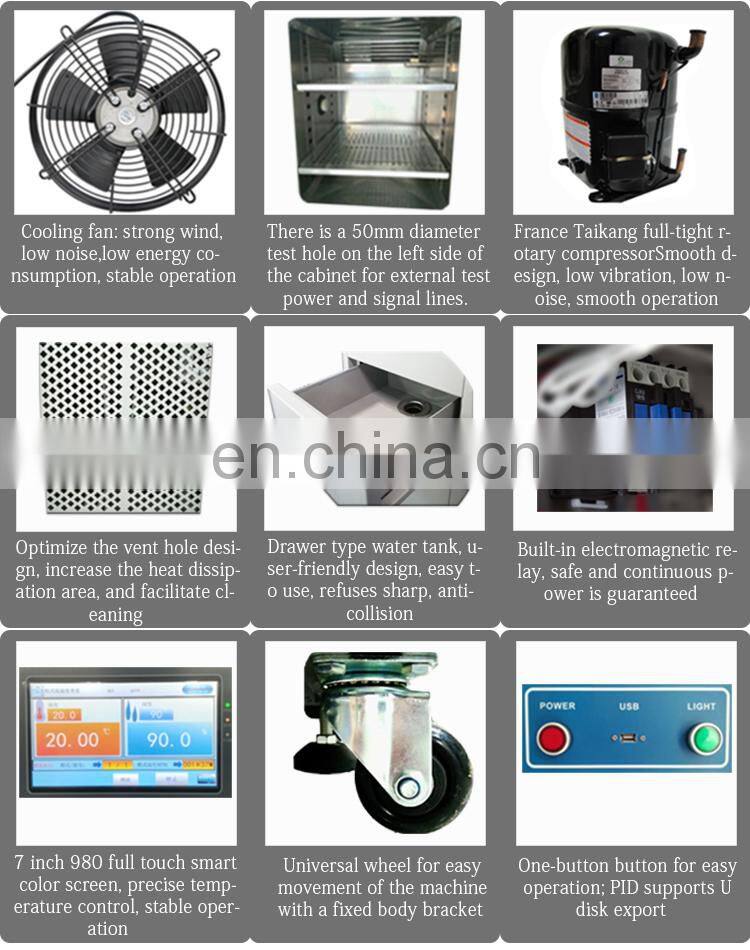

Internal structure
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15 working days, if we have finished products, we can arrange delivery within 3 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
Company Profile
Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
