Climatic Environmental Chamber/drug Test Chamber
- T/T Credit Card
You May Like
-
Temperature & Chamber/environmental Humidity Test Chamber
-
Temperature Humidity Test Machine/high Humidity Temperature Test Chamber
-
Environmental Testing Instrument/high-low Temperature Humidity Test Chamber
-
Humidity Climatic Chamber/Pharmaceutical Humidity Chamber
-
Constant Humidity/Hot Sale Testing Equipment Humidity Temperature Chamber
-
Environment Aging Test Chamber/humidity Dry Chamber
Product Details
| Brand Name | HY | Model Number | HYG-TH-80DH | |
| Power | Electronic |
wooden case
Product Description

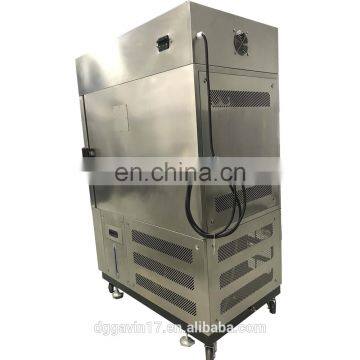

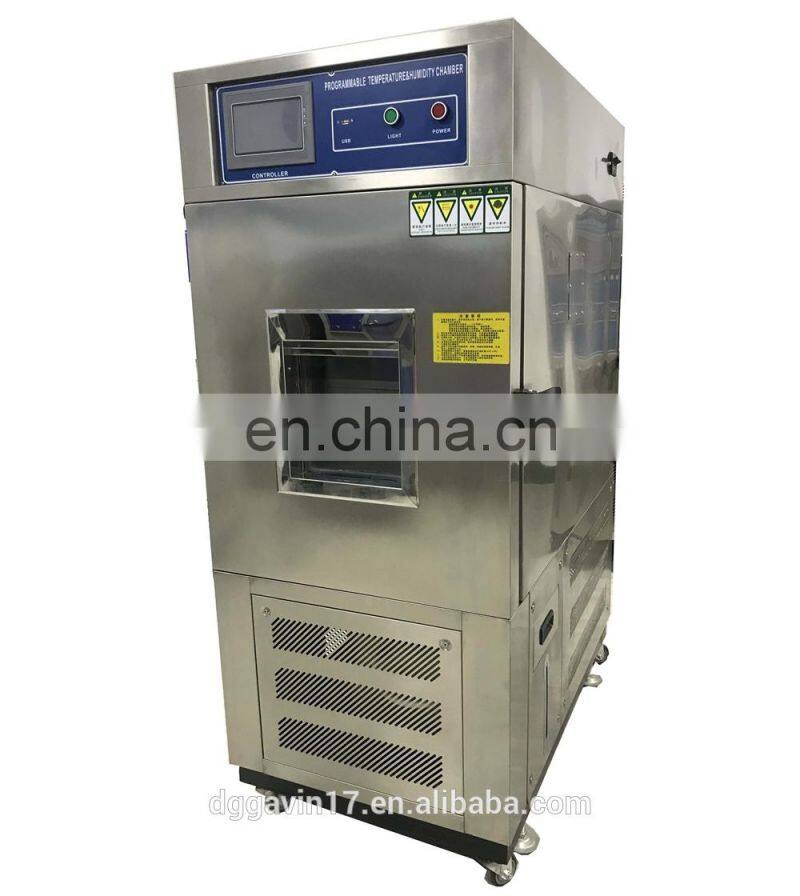

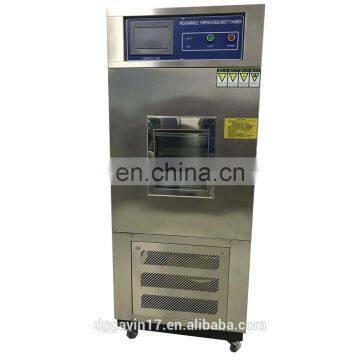

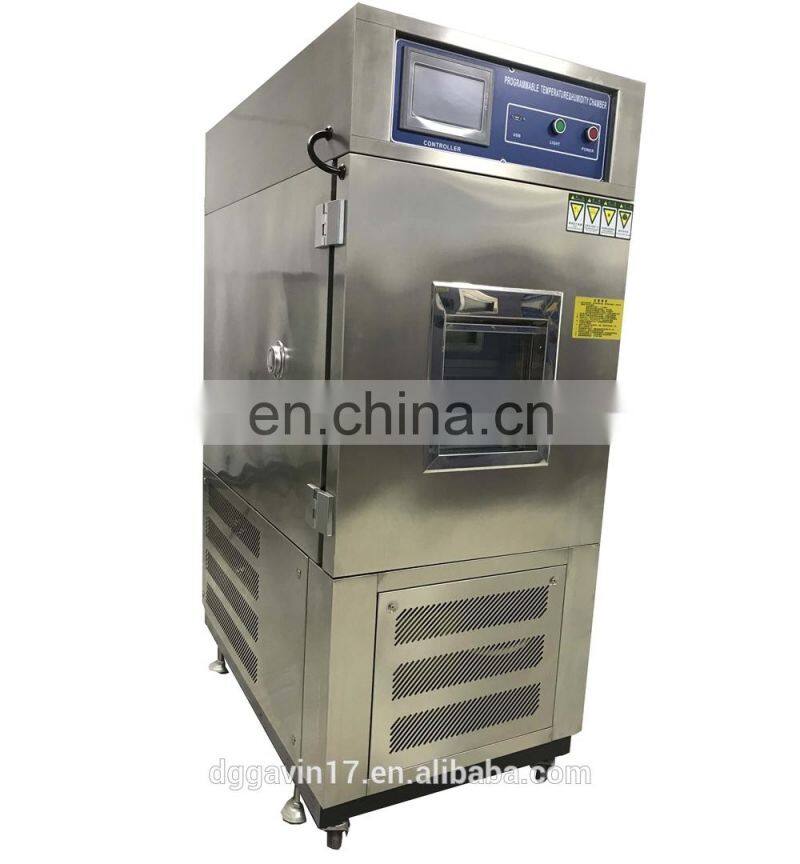

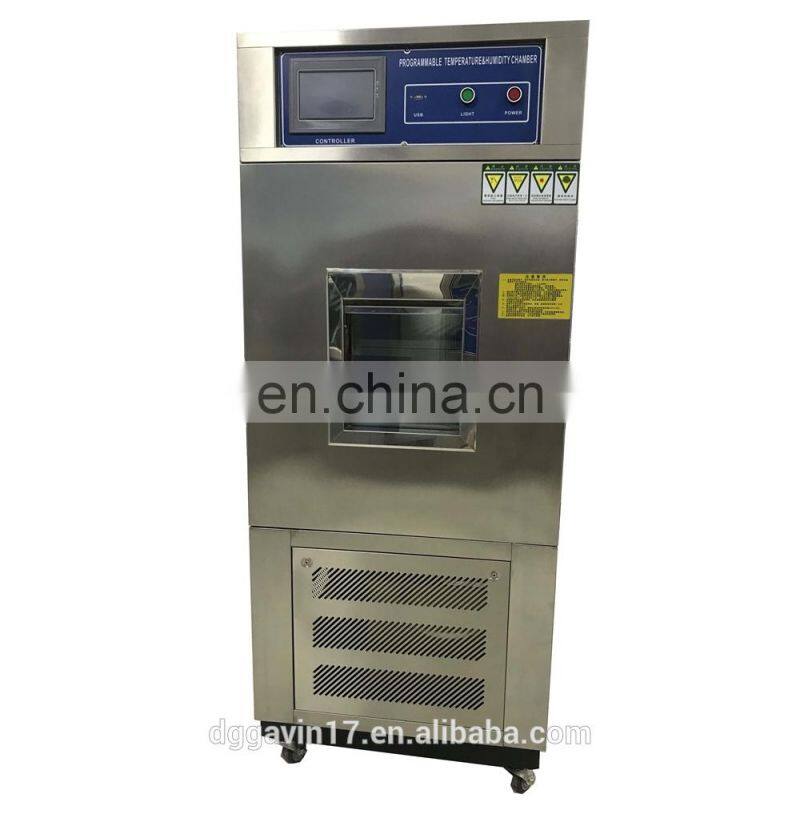

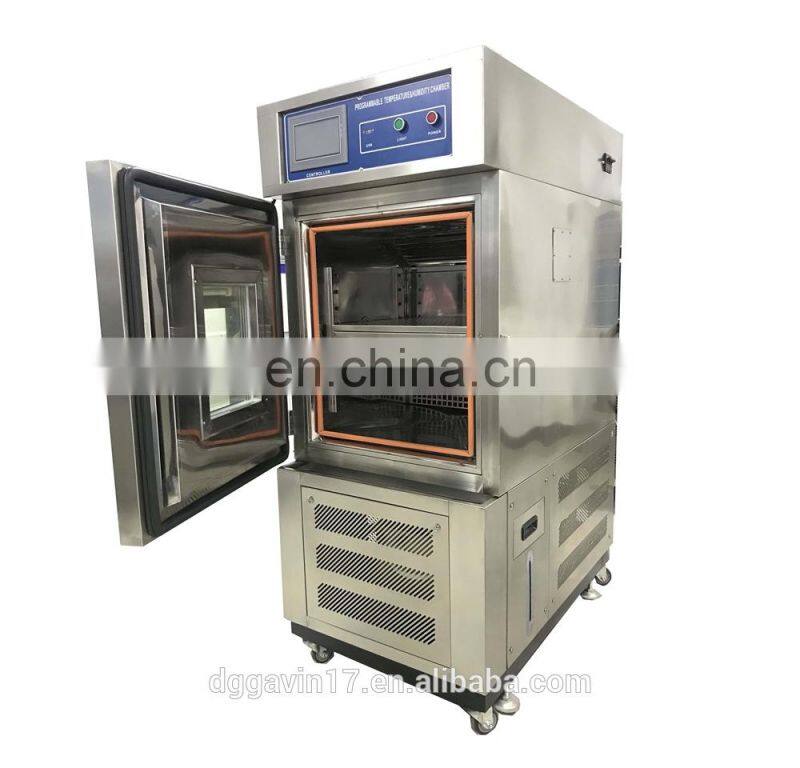

climatic environmental chamber/drug test chamber
Simulate product in the condition of climatic environment (high and low temperature operation&storage,temperature loop,high temperature and humidity,low temperature and humidity, moisture condensation etc),inspect product adaptive capacity and character if change. Conform to international standard(IEC,JIS,GB,MIL)Reach international measurement program consistency (including test process,condition and method)
Structure performance:
Model | HY-TH-80 | HY-TH-150 | HY-TH-225 | HY-TH-408 | HY-TH-800 | HY-TH-1000 | |
Inner size: W×H×D(mm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 | |
External size W×H×D(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 | |
Temperature range | (low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) ( high :+100℃/+150℃) | ||||||
Temp analytic accuracy/uniformity | 0.1℃/±2.0℃ | ||||||
Temperature control accuracy | ±0.5℃ | ||||||
Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | ||||||
Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | ||||||
heat insulation material | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | ||||||
cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) | ||||||
Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system | ||||||

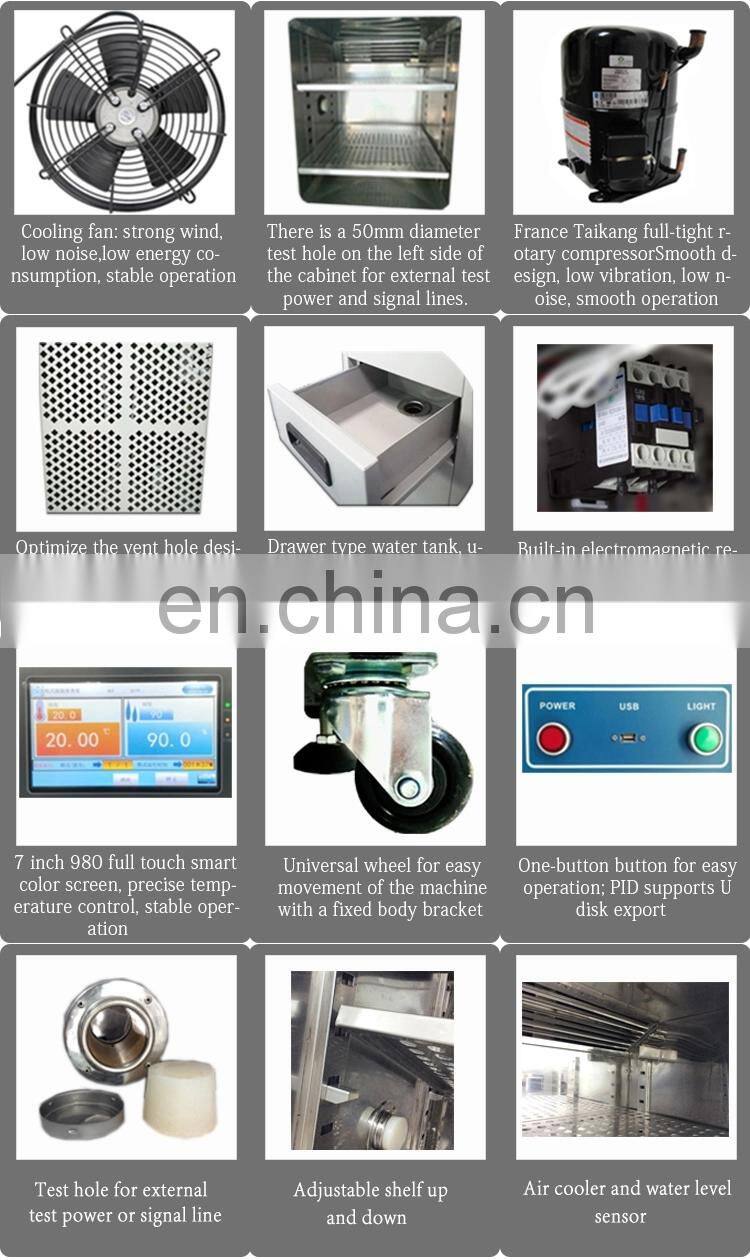

Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 | ||||||
Compressor | Original France"Tecumseh"brand | ||||||
Controller | TEMI South Korea | ||||||
Power | AC220V 50/60Hz & 1,AC380V 50/60Hz 3 | ||||||
weight (kg) | 150 | 220 | 270 | 320 | 450 | 580 | |

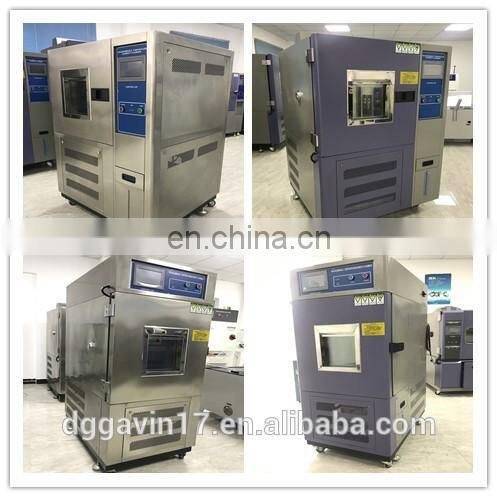

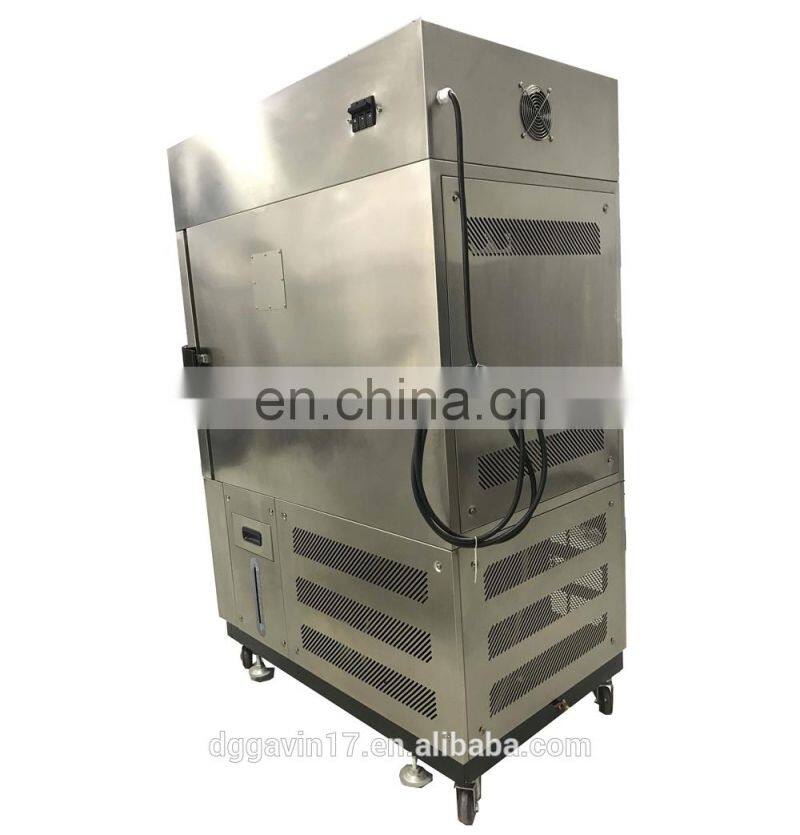

Different Appearances
Our support is guaranteed for one year.
For all my customers, we will help you repair. Send us questions through text, images or videos, and we will tell you about them and help you fix them.
If the machine parts are damaged during the warranty period, we can send you a new machine parts free of charge. We have English specifications, online service personnel, video teaching of machine operation, and our machine operation is very simple.
About the after sale service:
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
About the production time:
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
About the install:
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Company Profile
Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
