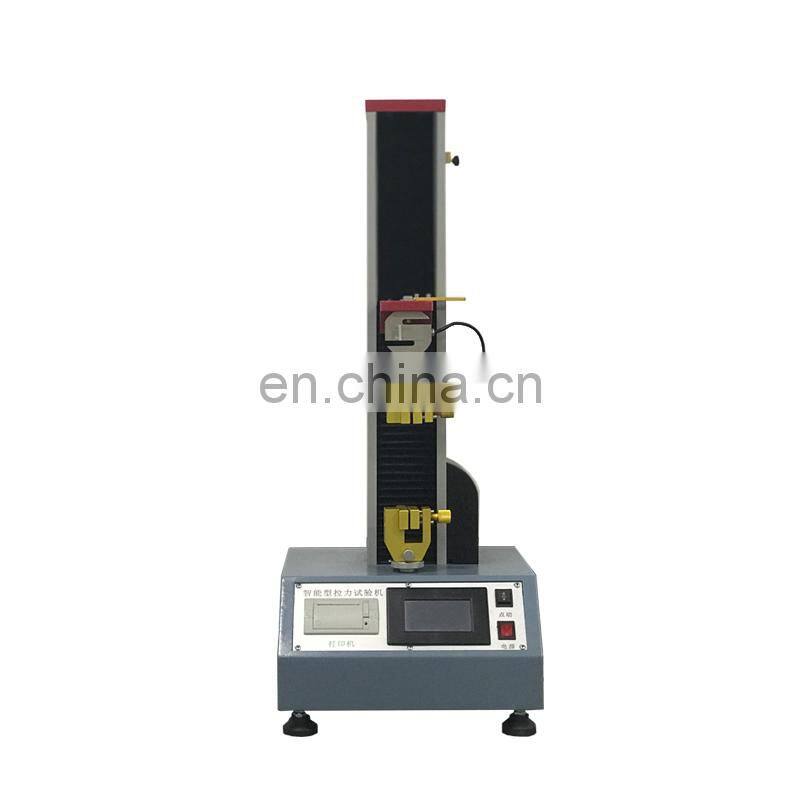

Hot Selling Fiber Strength Tester Equipment With Low Price
- T/T Credit Card
You May Like
-
Economical Fan Testing Equipment With Good Guarantee
-
Single Column Tensile Testing Machine
-
Easy to Control Fabric Tearing Tensile Tester With Low Price
-
Multifunctional Four Point Bending Equipment With Good Price
-
CE Certification 250kn Universal Testing Machine Customize
-
Lcd Touch Screen Humidity Control Equipment Price Iso Test Iec60068 Machine Plastic Product Temperature Stability Cabinet
Product Details
| Brand Name | Hongjin | Place of Origin | China | |
| Model Number | HY-UT-10PC | Power | Electronic |
Wooden package,Non-fumigation
Product Description
The main purpose:
Mainly used for testing of metal and non-metal materials, such as: rubber, plastic, wire and cable,textile, fiber optic cable, safety belt, leather belt composite, plastic profile, waterproof coil, steel pipe, copper, profile, spring steel.
Test Funcation:Stretching, compression, bending, shearing, peeling, tearing, two-point extension of bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, non-ferrous metal wires, etc. A variety of experiments.
Technical Parameters
| Maximum load | 500kgf |
| Accuracy level | Level 0.5 |
| Effective force range | 0.4% to 100% (0.5 level) |
| Force measurement accuracy | Within ±0.5% of the indicated value |
| Test machine resolution | he maximum load is 1/300000, the internal and external are not divided, and the resolution is unchanged. |
| Load cell | Basic configuration: pull and pressure sensor (maximum load)Extended configuration: multiple sensors can be added |
| Effective test width | 400mm (can be widened according to customer requirements) |
| Effective stretching space | 800mm (can be increased according to customer requirements) |
| Test speed range | 0.1~500mm/min |
| Displacement measurement accuracy | Within ±0.5% of the indicated value |
| Deformation measurement accuracy | Within ±0.5% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
| Test bench safety device | Electronic limit protection |
| Test bench lifting device | Fast/slow speed automatic control, can be jogged Manual or automatic selection, automatic or manual return the initialposition of the test at the highest speed after the test is over |
| Test bench return function | Manual or automatic selection, automatic or return to the position of the test at the highest speed the test is over |
| Overload protection | Over 10% of maximum load, automatic machine protection |
| Fixture configuration | Set of stretching fixtures |
| Host size | 1200*530*1800mm (length * width * height) |
| power system | Servo motor high precision ball scre |
| power supply | 220V/50HZ |
| power | 0.75KW (standard power motors are standard according to different force requirements) |
| Host weight | (about) 100 Kg |
multiple choice
click picture
touch control type |
Double column type(10kn-200kn for choice)
|
Hydraulic type |
