Product Details
| Brand Name | Hongjin | Place of Origin | China | |
| Model Number | HY-UT-30TC | Power | Hydraulic |
Wooden package,Non-fumigation
Product Description
Products Description

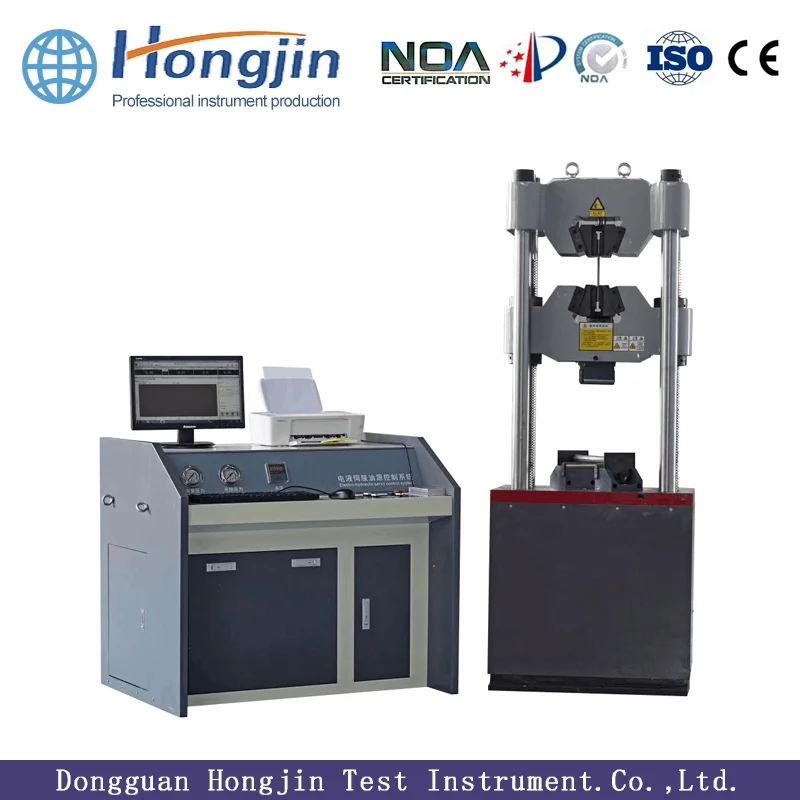

A hydraulic material testing machine that can perform various tests such as drawing, compression and bending. Hydraulic universal testing machine is used for tensile, compression, bending and shearing tests of various metals and non-metallic materials, as well as special tests of some products.
Overview use
Hydraulic universal testing machine is mainly used for tensile, compression, bending, shearing and other mechanical properties of metal, non-metal, composite materials and products. It can also be used for testing and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users.
Max load (KN) | 100 | 300 | 600 | 1000 | |
Range | whole journey didn't sub-file ,equivalent 3 grade | ||||
Test force measuring range (KN) | 4%-100%FS | ||||
Test Force showed the relative error | ≤indicating value±1% | ||||
Test Force Resolution | 0.01kN | ||||
Displacement measurement resolution (mm) | 0.01 | ||||
Max tensile test space (mm) | 550 | 650 | 750 | ||
Max compression space (mm) | 380 | 460 | |||

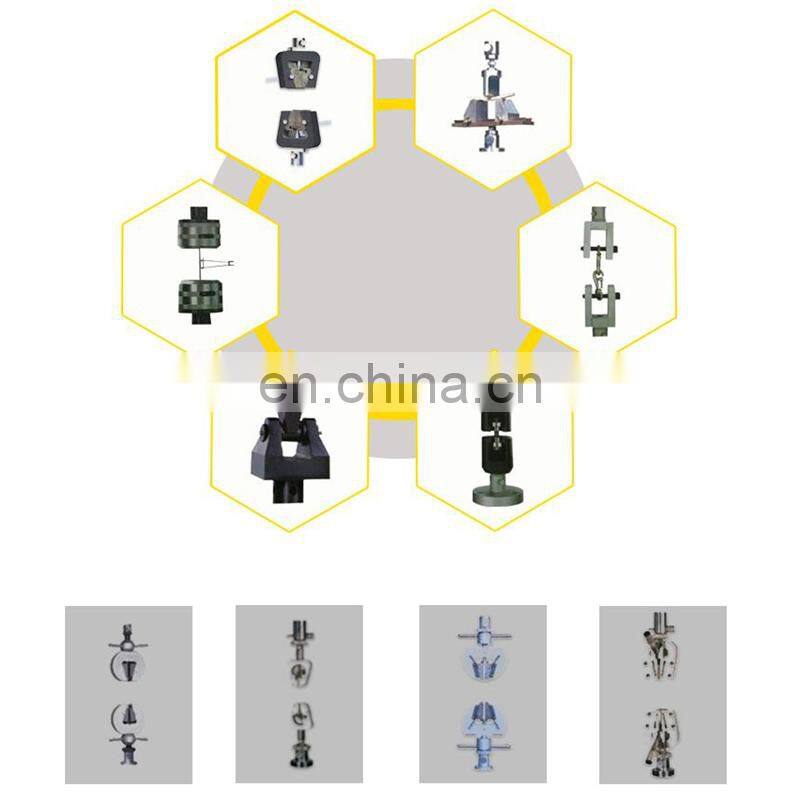

Diameter of round specimen clamp jaw (mm) | Φ6-Φ26 | Φ13-Φ40 | |||
Thickness of flat specimen clamping jaws (mm) | 0-15 | 0-15/15-30 | |||
Maximum clamping width of the flat specimen (mm) | 70 | 75 | |||
Maximum clamping width of the flat specimen(Column number) | 2 | 2/4 | |||
Clamping method | Manual clamping | Automatic clamping/Manual clamping | |||
Shear specimen diameter (mm) | 10 | ||||
Upper and lower compression plate size (mm) | Φ160(option 204×204) | ||||
multiple choice
click picture
touch control type |
Double column type(10kn-200kn for choice)
|
computer control type |
