Home > Products > Tensile testing machine > HongjinC Gold and Silver Digital Tensile Tester

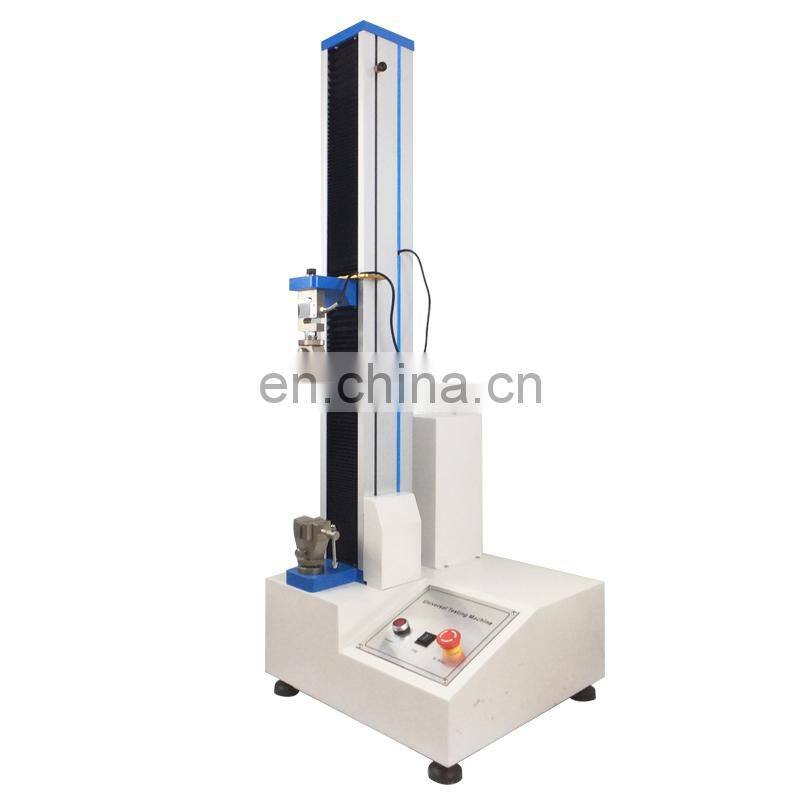

HongjinC Gold and Silver Digital Tensile Tester
- 1000 Set / Sets per Month
- T/T Credit Card
You May Like
Product Details
Brand Name | HONGJIN | Place of Origin | Guangdong, China | |
Model Number | HJ-D6 | Power | Electronic |
Product Description
It's mainly applicable to the testing of metal and non-metal materials. Such as rubber, plastic, wire and cable, fiber optic cable, safety belt, leather belt composite material, plastic profile, waterproof roll material, steel pipe, copper, profile material, spring steel, bearing steel, stainless steel (and other high hardness steel), casting, steel plate, steel belt.Tensile, compression, bending, shear, stripping, tearing, two point extension (with additional extensometer) of nonferrous metal wire.This machine adopts mechanical and electrical integration design.It is mainly composed of force sensor, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer.It has a wide and accurate loading speed and measuring range.Have high precision and sensitivity of the load measurement,control,and displacement. It can also carry out the automatic control test of isokinetic loading and isokinetic displacement.Floor model,the modern industrial design has been fully considered in modeling and painting and principles of ergonomics.
Maximum load | 5000N |
Accuracy class | 0.5 class |
Effective range of force measurement | 0.4%~100%(0.5 class) |
Force measurement accuracy | Indicating value within ±0.5% |
Test machine resolution | Maximum load1/300000,resolution of the whole process remains the same |
Load sensor | Basic configuration: pull, pressure sensor (maximum load) 1pcs. Extended configuration: multiple sensors can be added |
Valid test width | 400mm(Can be widened according to customer requirement) |
Effective tensile space | 800mm(can heighten according to customer's requirement) |
Test speed range | 0.1~500mm/min |
Offset measurement accuracy | Indicating value within ±0.5% |
Deformation measurement accuracy | Indicating value within ±0.5%(Large deformation or small deformation can be selected according to customer requirements) |
Test platform safety device | Electronic limit protection |
Test platform lifting device | Fast/slow two speed automatic control, can point to move |
Test platform return function | Manual or automatic return to the initial position of the test at the highest speed |
Overload protection | Over 10% maximum load, automatic protection machine |
Fixture configuration | Stretch fixture one set |
Mainframe dimension | 1000*530*1000mm(long*width*height) |
Dynamical system | Servo motor high precision ball screw |
Power supply | 220V/50HZ |
Power | 0.75KW(According to different force value requirement, different power motor is standard) |
Mainframe weight | 80 Kg |
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer. You will be weclome to visit our facory or we also can let you see through video.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.
5. We haven't do business before, how can I trust your company and machine?
We are a factory with more than 13 years and without amy complaints on Alibaba. and our machine have exported to many countries and have a good feedback.
6. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, if you come, I can give you a detail instruction.
7. Does your product have CE certification ?
Yes, all our products passed CE certification
8. If there is not any size meet my need, can I customiz ?
Yes, just provide me your detail requirement, we can do as yours.
Company Profile

Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
