Product Details
| Brand Name | HONGJIN | Place of Origin | China | |
| Model Number | HJ-D6 | Power | Electronic |
Product Description
The main purpose:
Mainly used for testing of metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, safety belt, safety belt, leather belt composite, plastic profile, waterproof coil, steel pipe, copper, profile, spring steel, Stretching, compression, bending, shearing, peeling, tearing, two-point extension of bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, non-ferrous metal wires, etc. A variety of experiments.
This machine adopts mechatronic design, which is mainly composed of load cell, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. It has a wide and accurate loading speed and force range. It has high precision and sensitivity for load and displacement measurement and control. It can also perform automatic control test of constant velocity loading and constant velocity displacement. Floor-standing models and styling coatings fully consider the principles of modern industrial design and ergonomics.
Technical Parameters
| Maximum load | 500KG |
| Accuracy level | Level 0.5 |
| Effective force range | 0.4% to 100% (0.5 level) |
| Force measurement accuracy | Within ±0.5% of the indicated value |
| Test machine resolution | he maximum load is 1/300000, the internal and external are not divided, and the resolution is unchanged. |
| Load cell | Basic configuration: pull and pressure sensor (maximum load)Extended configuration: multiple sensors can be added |
| Effective test width | 400mm (can be widened according to customer requirements) |
| Effective stretching space | 800mm (can be increased according to customer requirements) |
| Test speed range | 0.1~500mm/min |
| Displacement measurement accuracy | Within ±0.5% of the indicated value |
| Deformation measurement accuracy | Within ±0.5% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
| Test bench safety device | Electronic limit protection |
| Test bench lifting device | Fast/slow speed automatic control, can be jogged Manual or automatic selection, automatic or manual return the initialposition of the test at the highest speed after the test is over |
| Test bench return function | Manual or automatic selection, automatic or return to the position of the test at the highest speed the test is over |
| Overload protection | Over 10% of maximum load, automatic machine protection |

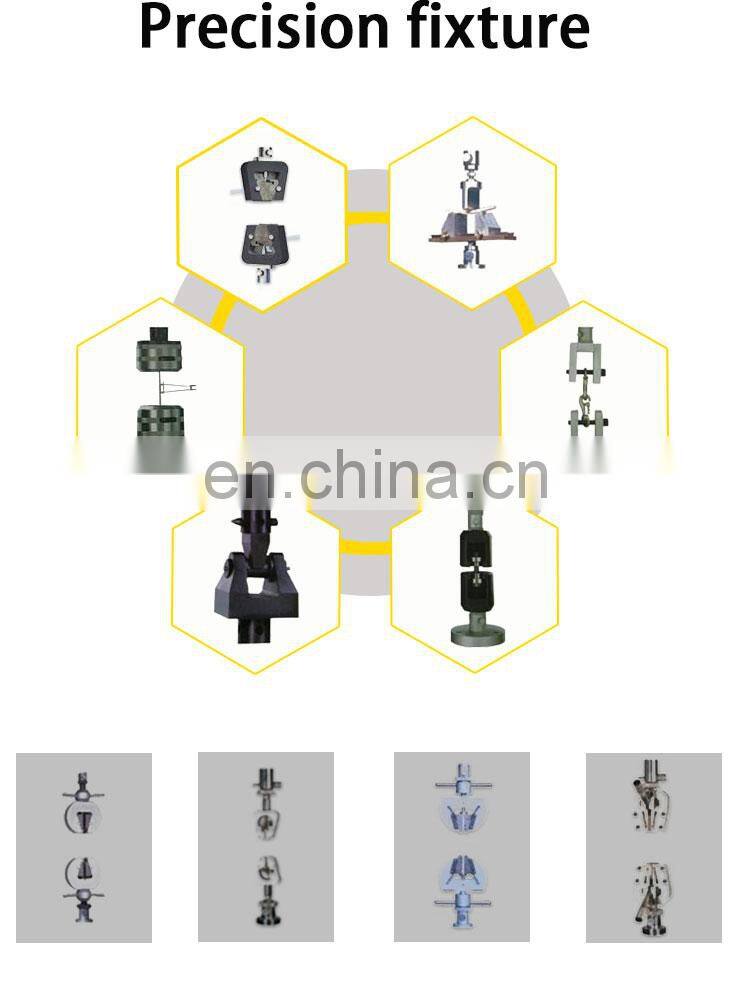

| Fixture configuration | Set of stretching fixtures |
| Host size | 1200*530*1800mm (length * width * height) |
| power system | Servo motor high precision ball scre |
| power supply | 220V/50HZ |
| power | 0.75KW (standard power motors are standard according to different force requirements) |
| Host weight | (about) 100 Kg |
