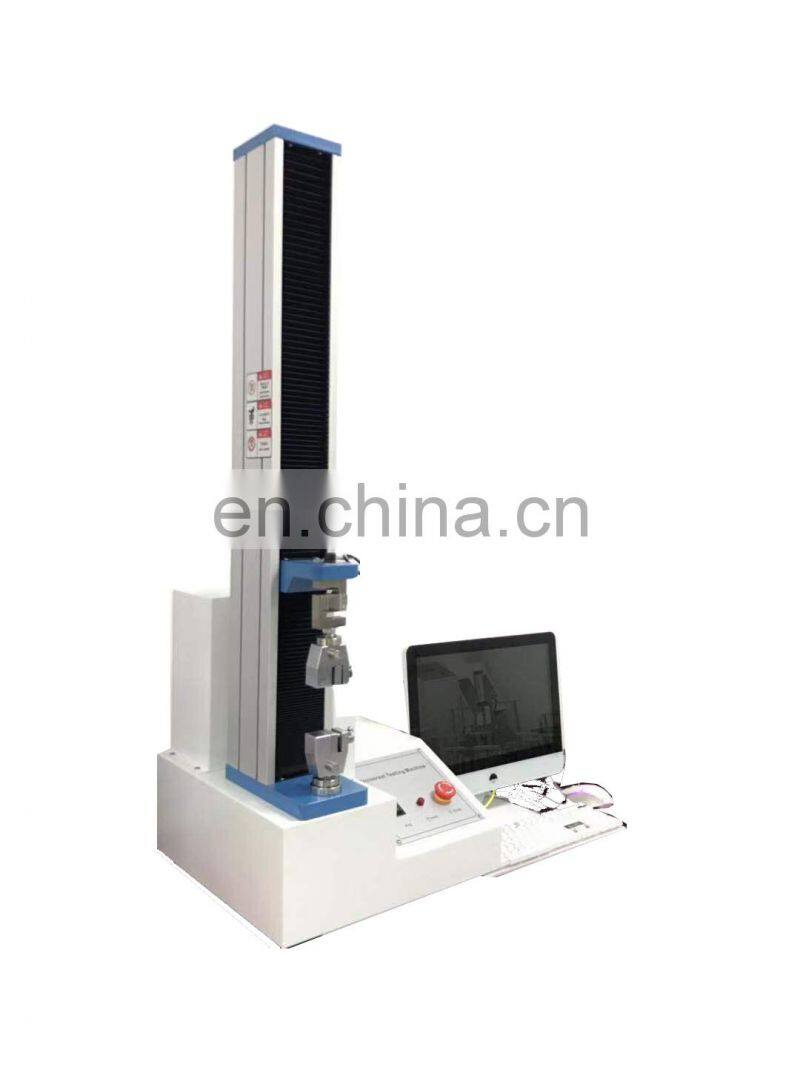

For Material Deformation Universal Tensile Testing Machine Price With 1 Year Guarantee
- T/T Credit Card
You May Like
-
Precision Bend Testing Machine Price With High Quality
-
Economical 1N Universal Tensile Testing Machine Customize
-
For Textile Test Zwick Tensile Testing Machine With Low Price
-
For Textile Test 100kn Tensile Strength Testing Machine With Low Price
-
For Bending Test Universal Testing Machine Price With Good Quality
-
For Compression Test 100KN Strength Tensile Tester With Good Price
Product Details
| Brand Name | Hongjin | Place of Origin | China | |
| Model Number | HY-UT-5TC | Power | Electronic |
Wooden package,Non-fumigation
Product Description

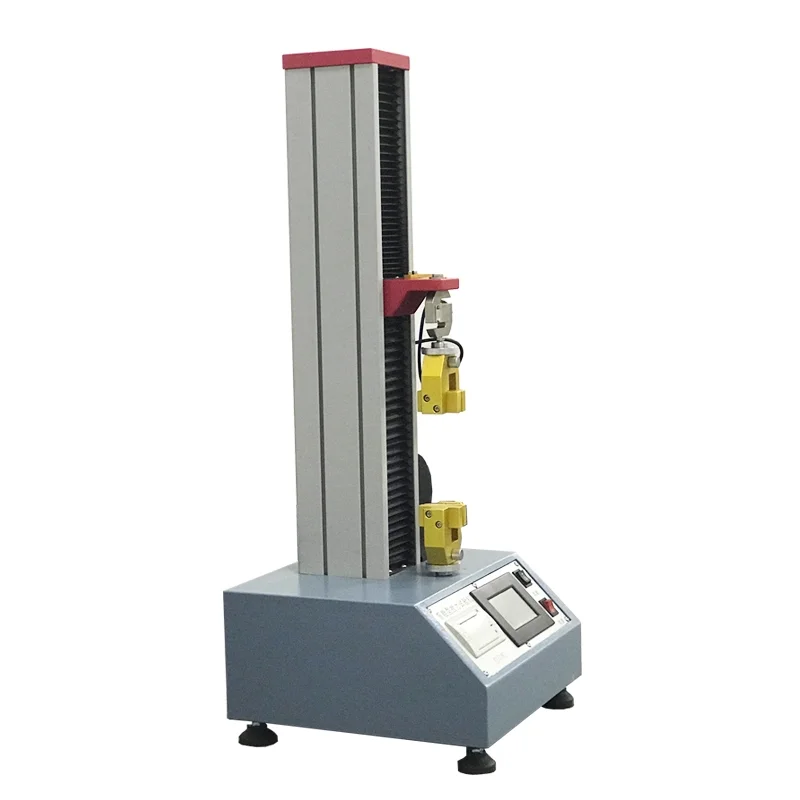

universal tensile test machine

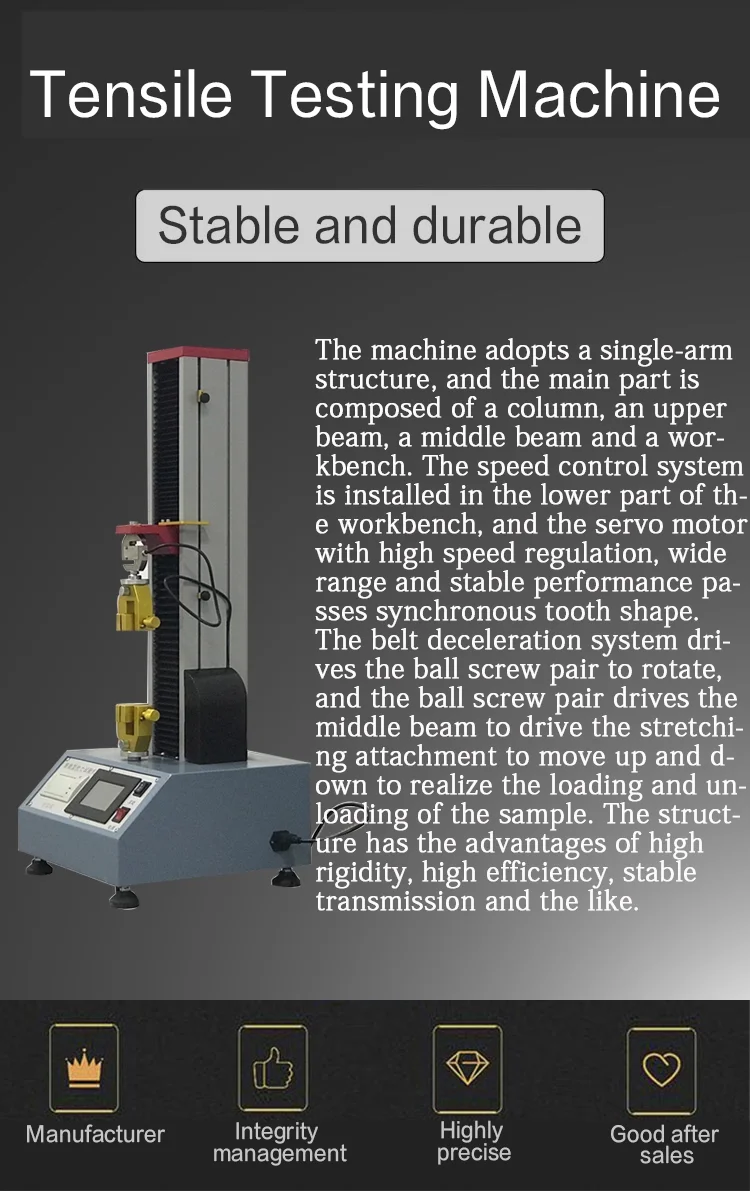

| structure type: | Single arm structure |
| Maximum test force (N): | 1000N |
| Test force level: | Level 1 |
| Test force measurement range: | 2%--100%FS |
| Test indication relative error: | ±1% of the indicated value |
| Force resolution: | 1/100000 |
| Displacement measuring device: | Photoelectric encoder |
| Displacement indication relative error: | ±1% of the indicated value |
| Displacement resolution (mm): | 0.01 |
| Displacement rate (mm/min): | 1-500 stepless speed regulation |
| Safety protection device: | Mechanical limit protection and software overload protection |
| Effective stretching space (mm): | 400 |
| Stretching fixture: | According to material selection |
| Mainframe dimensions (mm): | 420×280×680 |
| Host power: | 0.3KW/AC220V±10% |
| Host weight (KG): | 60 |
multiple choice
click picture
Computer control type |

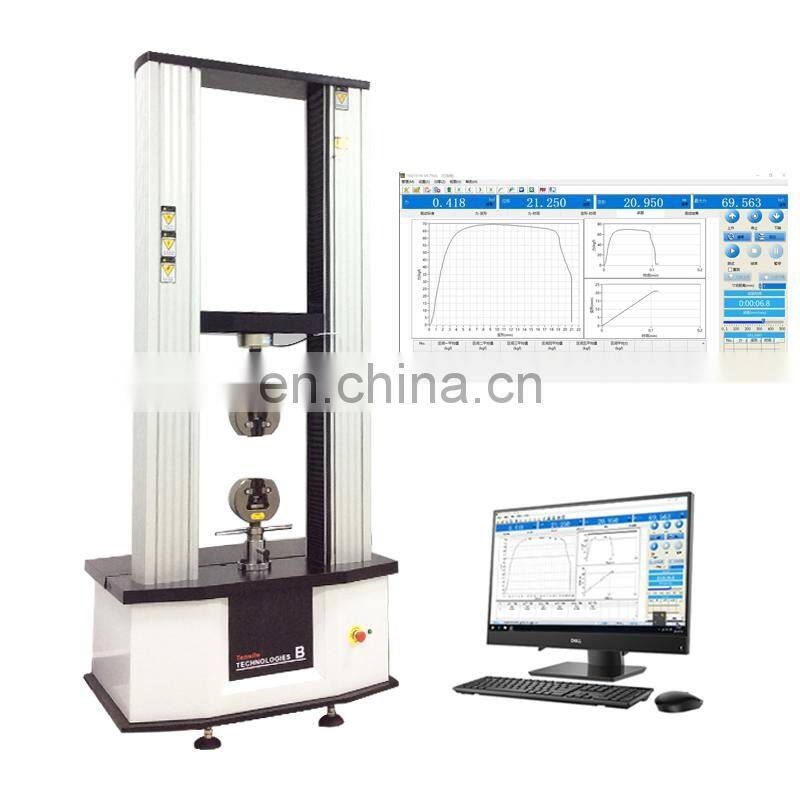

Double column type(10kn-200kn for choice)
|

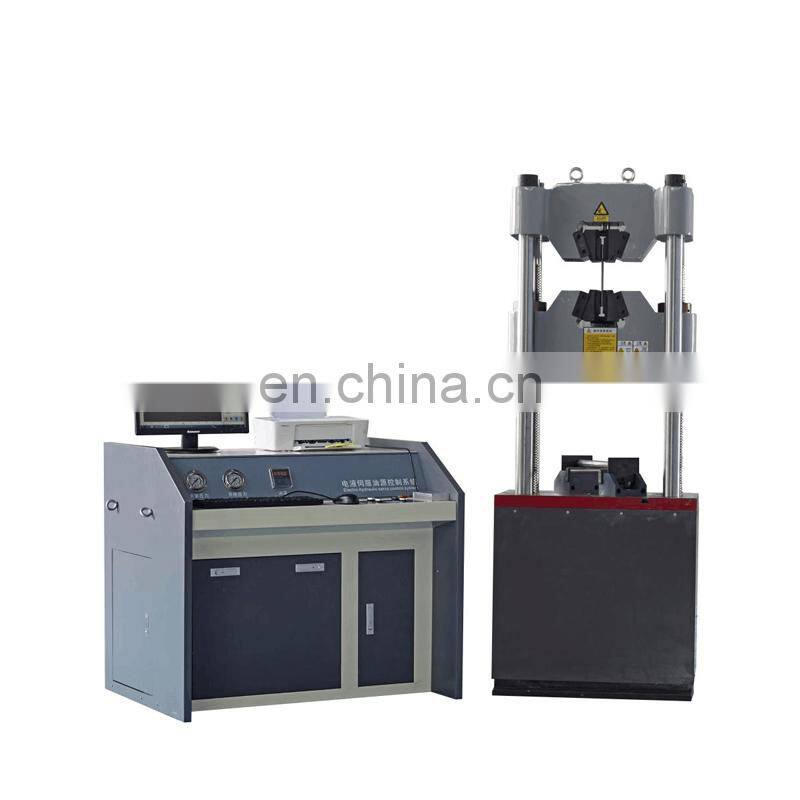

Hydraulic type |
Packaging & Shipping
About us
Company Profile
Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
