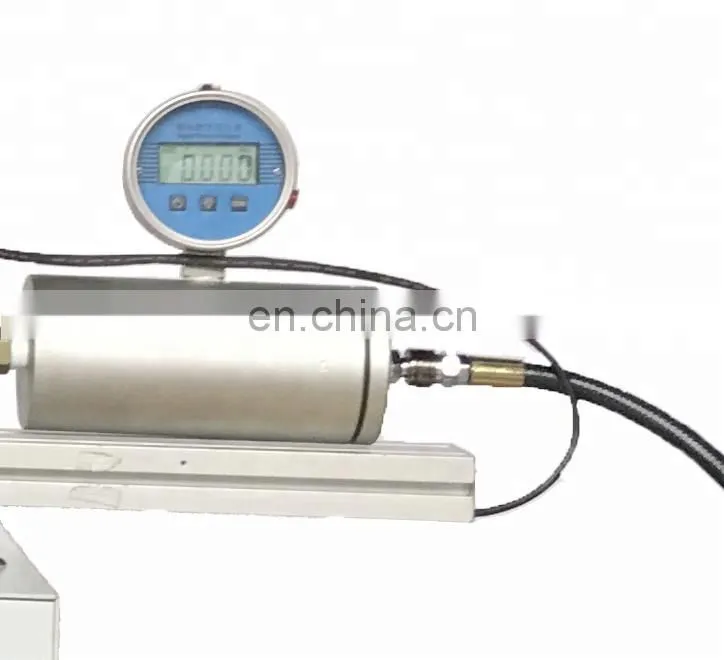

High velocity Impact testing machine for face shield
High velocity Impact testing machine purpose
This test is tended to determine the capability of a protector to resist impact from high velocity , low mass porjectiles
High velocity Impact Testing Machine standard
It's according to EN166 ,EN168 standard
High Velocity Impact Testing Machine specifications
1.Steel ball lead pellet diameter:6.35mm (0.25in)
2.Steel ball lead pellet mass:1.06g (0.25in)
3.Impact speed :190+5m/s (can adjustable)
4.The PC control the machine's all operate and exhibits the shooting speed (m/s)
5.All the parameters can through the software free setting
6.The headfrom can rotate , up and down adjustalbe
7.The machine have history check function
8.The test report can convert the EXCEL, Word, PDF files etc , and connection the printer can print out
9.The control board by HOTOTECH researched and developed
10.Emergency stop system to ensure safety
11.Adjustable headfrom holder to facilitate operation
12.High accuracy laser velometer
13.A safety warning bulb , the system will not turn to working condition when either the door or the air entry outlet is not closed
14.Test space is completely shut off, with only one viewing window to ensure safety
High velocity impact testing machine main technical parameter
| Product Name | High velocity impact testing machine |
| Testing standard | EN166,EN168 etc standard |
| Steel ball lead pellet diameter | 6.35mm (0.25in) |
| Steel ball lead pellet mass | 1.06g (0.25in) |
| Impact speed | 190+5m/s (can adjustable) |
| Control ways | Computer |
High velocity impact testing machine
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
-Do we support OEM or ODM?
-Will the original R&D manufacturing paint have a price advantage?
-Are you products high quality products?
-Do we have a good team?
-Does our product support global after-sales service ?
-Are our product certified?
every answer is "YES"
