Motorcycle helmet Impact Testing Machine/Helmet Testing equipment with ECE R22.05, EN1078,EN1077 etc testing standard
- 50 Set / Sets per Month
- ShenZhen YanTian
- T/T Credit Card
- EN397 standard Shock absorption testing machine for safety helmet
- ANSI Z89.1Safety helmet Impact Testing Machine/ Helmet shock absorption testing machine/ Helmet testing equipment
- ANSI Z89.1 standard Safety Helmet Force Transmission Test apparatus
- Helmet Anti Drop off testing machine/Helmet stability testing/Helmet retention detaching testing machine for IS 4151 ECE R22.05
- ECE R22.05 standard 15kg weights motorcycle helmet Projection Surface Friction Testing machine
- Motorcycle helmet Strap Retention Machine/Helmet testing equipment
Product Details
Brand Name: | HOTOTECH | Place of Origin: | Guangdong, China | Model Number: | HT-6011-E |
Power: | Electronic |
Product Description

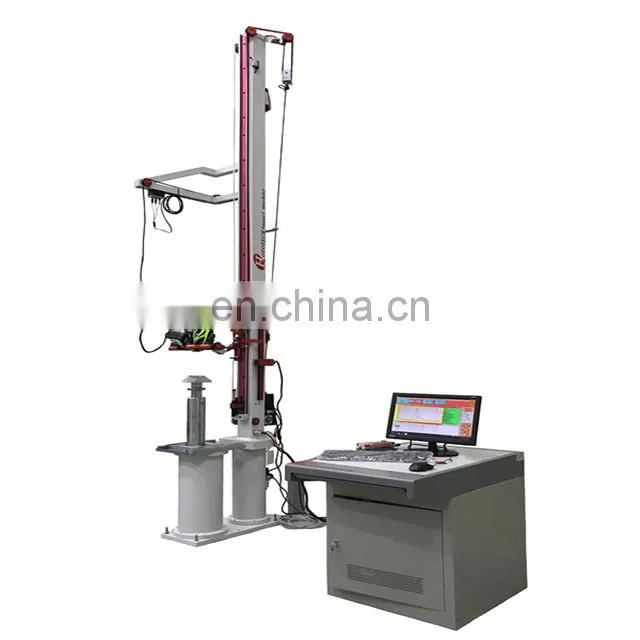

Motorcycle helmet Impact Testing Machine with ECE R22.05, EN1078,EN1077 etc testing standard
use range

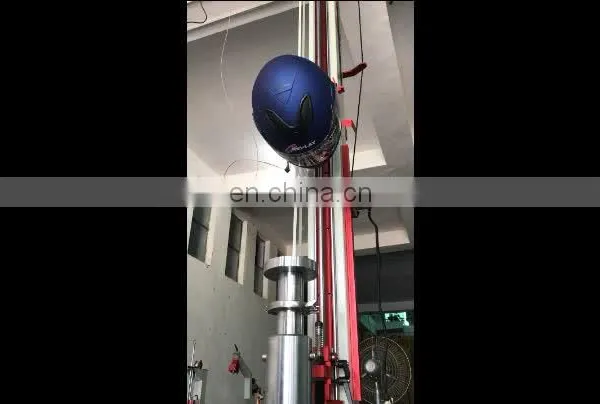

For helmet impact test , estimating the impact resistance and penetration resistance of a helmet , fullcomputerized. The drop weight raised and lowered to a specified height,the computer exhibits the changing height with time ,acceleration , HIC, action time and impact
energy. This machine has good degree of reliability , high accuracy
Standard
According to ECE R22.05 standard
Feature
1.Height:5.26 m;
2.The width of base:31 cm
3.Acceleration sensor (Uniaxial,triaxial each one)

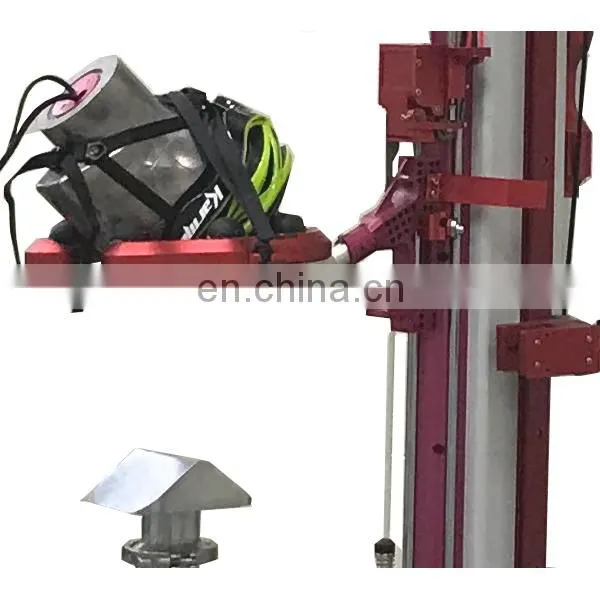

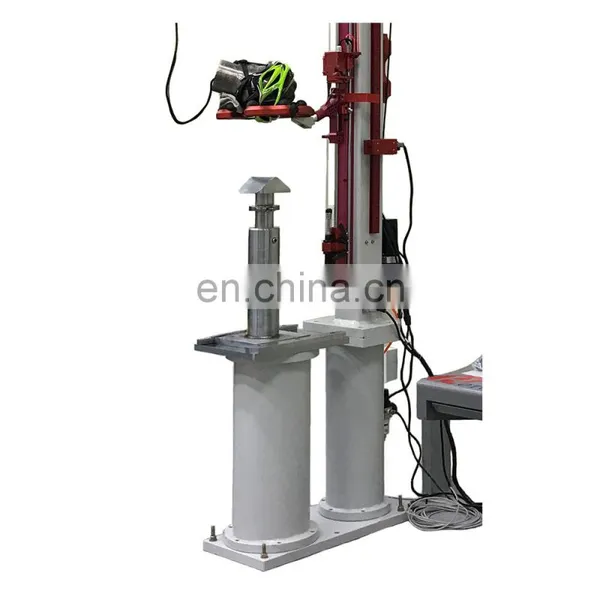

4.Include impact test device , clamp ;
5.Include HOTO dedicated computer and company specially designed software.
The Main Technical Specifications
Product Name | Motorcycle helmet Impact Testing Machine |
Testing standard | ECE R22.05 |
Function | It's used for helmet withstand impact performance |
Drop ways | Free drop ways |
Rise ways | Automatic rise |
Impact height | 3m (adjustable) |
Sensor type | Accelerometer |
Bearing | American import bearing |
Speed sensor | High precision displcement sensor |

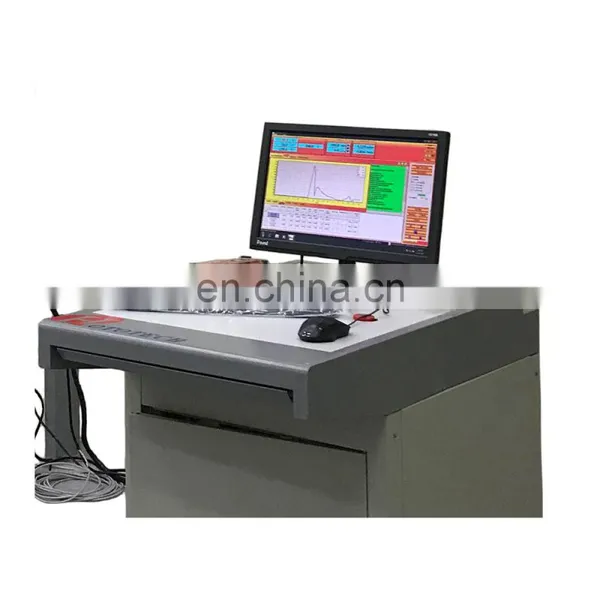

Control ways | Control computer with real-time curve display |
Electricity | 220V 50HZ |
Software feature
1.dealing with software (Windows 7 system interface, VC program , both once collect data and continuous collect data .
2.interface guide function easy and convenience to operate
3.Provide all kinds of FIR digital filter for filtering the acceleration signals, promise signal
does not lost .
vide all kinds of curve fitting , convenient test result comparison
5.Automatic naming files
6.more than a figure line tool, can put in a linear coordinate or logarithmic coordinate multiple
curve in a picture , in order to research , compare all kinds of material different situation’s buffer performance offer convenient

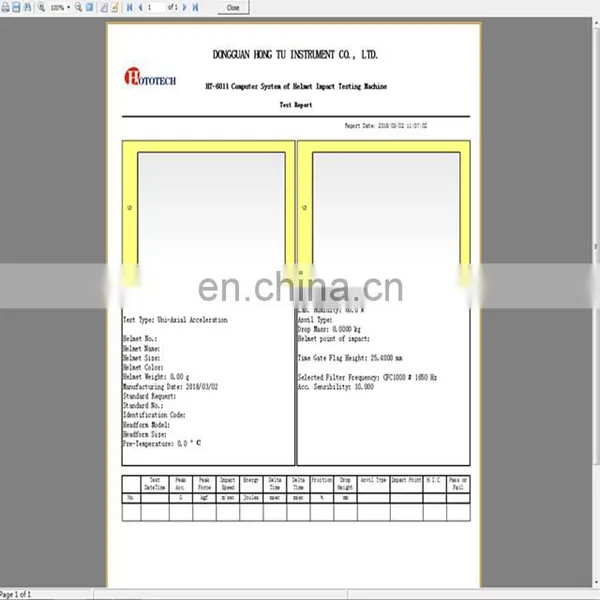

test report button , test data automatic change test report . The report can save and print
Product picture
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
Q: Are your company a trading or factory ?
A: Factory +Trade (integration) , 8 years focusing n test machines field and exporting experience , OEM also acceptance for us
Q: After an order is placed , when to deliver
A: Generaly about 30 work days
Q: Do you have any certificate about your factory ?
A: We are already got SGS , ISO 9001 and some testing machine's patent certificate
Q: What about the Warranty with after-sales service ?
A : We have one year warranty time , when the testing machine have problems and the customer notice us
We received the customer problems feedback ,we will reply and help customer to solve the problem at first time
Q: How about your testing machine's data accurate ?
A: About our testing machine's data accrate, customers can be assured, because many government's lab by our factory help to plan and established
