Home > Products > PV Module Tester > Photovoltaic Module Breach Testing Machine/Solar Module Testing Equipment/Solar Panel Testing Apparatus for IEC 61730 Stndard

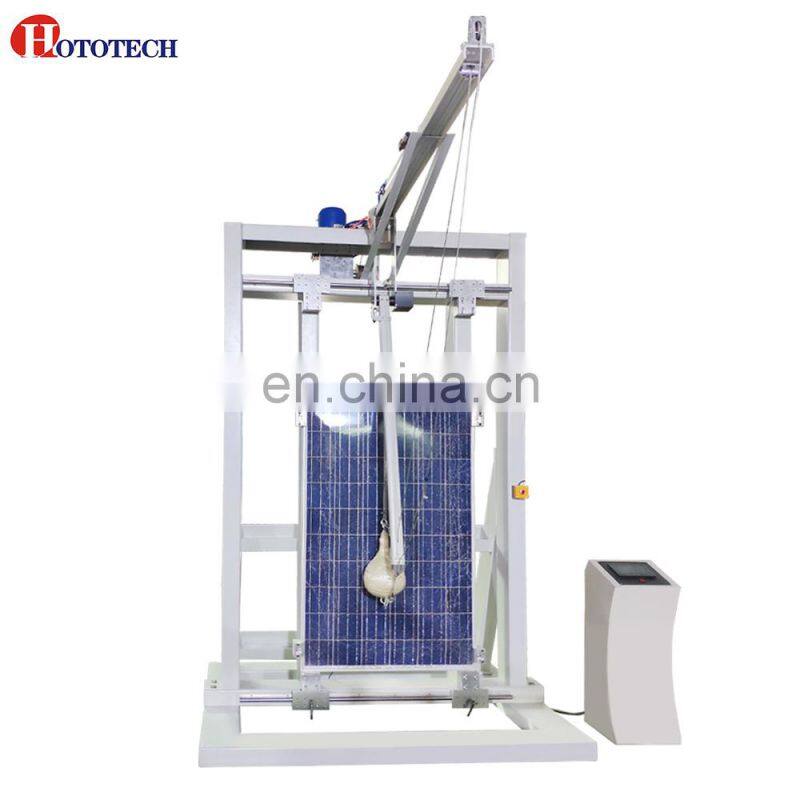

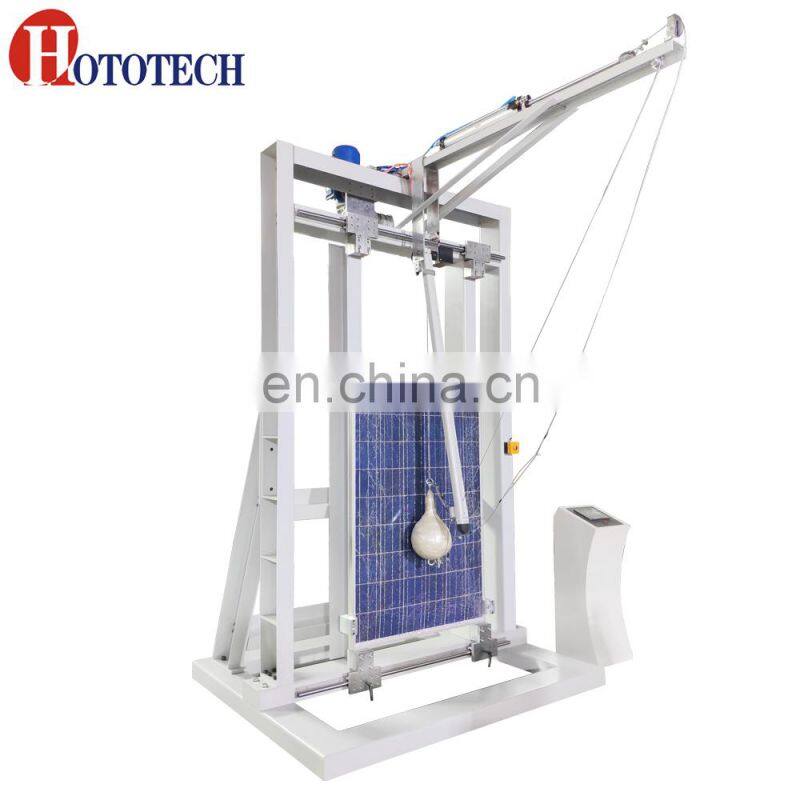

Photovoltaic Module Breach Testing Machine/Solar Module Testing Equipment/Solar Panel Testing Apparatus for IEC 61730 Stndard
US$ 6,287 - 7,784
/ Set
1 Set(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
-
PV Module Damp Heat Testing Machine/constant Temperature and Humidity Testing Chamber/evnironment Chamber
-
PV Module Damp Heat Tester/Solar Panel Damp Heat Testing Machine / Constant Temperature and Humidty Environment Chamber
-
Solar Panel Ice Ball Impact Testing Machine/Clash Testing Machine/Solar Panel Testing Machine With IEC61215-2:2016 Standard
-
Salt Spray Testing Machine /PV Module Testing Chamber/Salt Mist Testing Machine for pv Module With IEC61701 Testing
-
Photovoltaic Conduit Bend Testing Machine/guide Tube Winding Testing Equipment /testing Apparatus With IEC Standard
-
IEC61215 Standard Solar Panel UV Preconditioning Testing Machine/UV Preconditioning Test Chamber/solar Panel Testing Machine
Product Details
| Brand Name | HOTOTECH | Place of Origin | China | |
| Model Number | HTPV-03CD | Power | Electronic |
Product Description
Company logo
Testing standard
It's conform IEC61625-2:2016 & IEC61730-2:2016 testing standard
Purpose
The purpose of this test is to provide confidence that risk of physical injuries can be minimized if the module is broken in its specified installation
The Main Technical Specifications
Testing frame Struction frame raw materials | Steel channel ( approx the width ≥100mm ) |
The inner dimension of test frame | 2m×1m (Adjustable) |
The sample frame with the rubber bar and the thickness | 3mm, wide 15mm, hardness shore A50° |
The inner filling diameter | 2.5-3.0mm ( the material is pellets or steel ball ) |
The mass of impactor | 45.5 ± 0.5kg |
The ratio of widest diameter to height is between | 1:1,5 to 1:1,4 |
Safety Function | 1.With the safety protection frame 2.Anti-secondary impact function |
Impact height | 300mm , 450mm, 600mm, 750mm, 900mm, 1200mm |
Impact height display accurate | 0.1mm |
Impactor rise ways | Automaitc rise/ Jog rise |
Release ways | arriving predetermined height, the cylinder automatic release |
Control ways | Touch screen control |
Electricity | 220V 50HZ |
