Solal panel infrared test speed sensor Simulate climate Hail Impact resistance testing machine with 6-8bar air pressure
Purpose
It's use to verify that the module is capable of withstanding the impact of hailstones
standard
It's according to IEC61215 IEC61646 etc

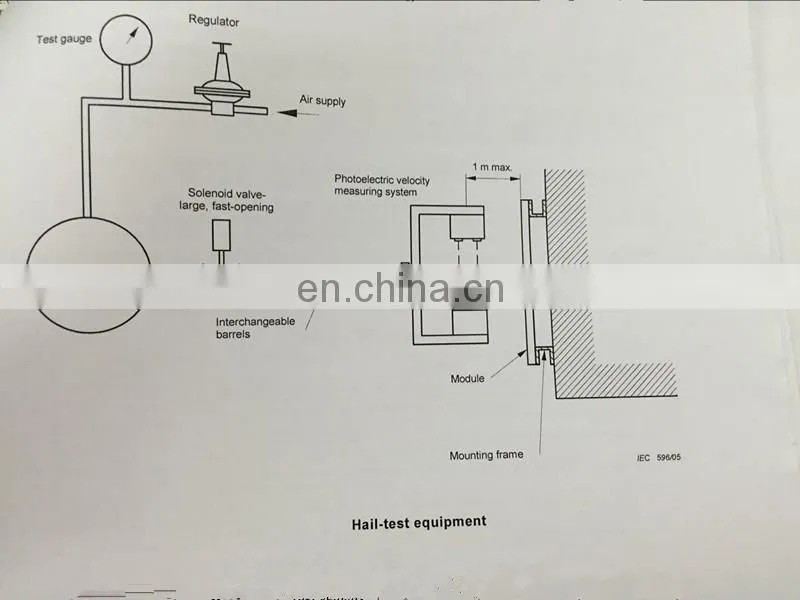

apparatus

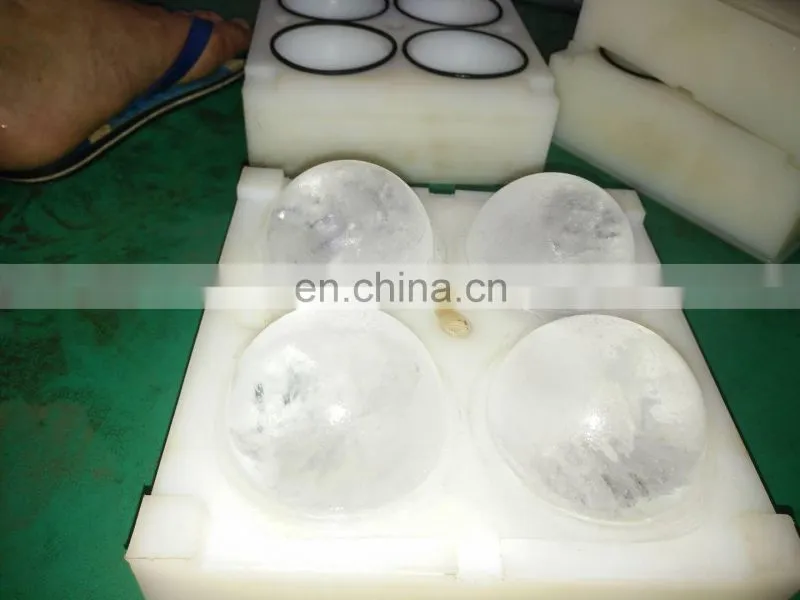

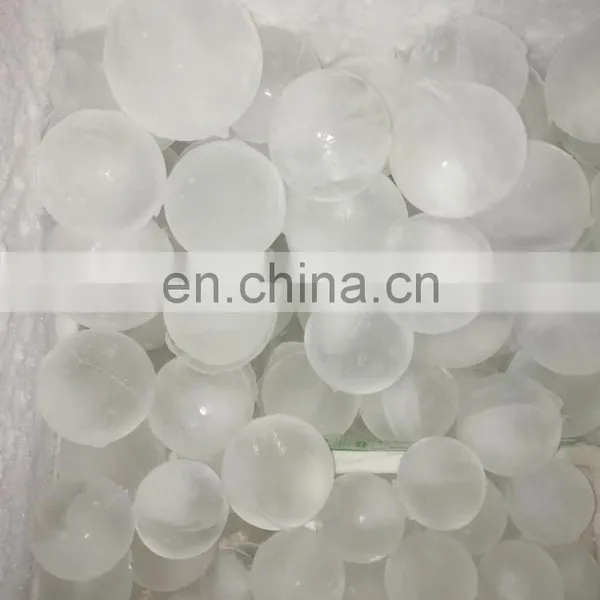

a) Moulds of suitable material for casting spherical ice balls of the required diameter . the standard diameter shall be 25mm
b) A freezer, Controlled at -10°c±5°c
c) A storage container for storing the ice balls at a temperature of -4°c±2°c
d) A launcher capable of propelling an ice ball at the speciifed velocity, within ±5%, so as to hit the odule within the specified impact location. the path of the ice ball from the launcher to the module amy be horicontal , vertical or at any intermediate angle, so long as the test requirements are met
e) A rigid mount for supporting the test module by the method prescribed by the manufacturer , with the impact surface normal to the path of the projected ice ball
f) A balance for determining the mass of an ice ball to an accurac of ±2%
g) An insturment for measuring the velocity of the ice ball to an accuracy of ±2% . the veloctiy sensor shall be no more than 1m from the surface of the test module
Testing Machine's image show
Dongguan Hong Tu Instrument Co.,Ltd , specializes in developing and producing sales of testing instrument for helmet ,photovoltaic , leather ,footwear ,luggage ,sport equipments, metal and rubber , we have firm connections and full cooperation from China's National Third-part Quality Inspection and Notarization Center on producing and developing high-precision testing machines
We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit
Please feel free to contact us for any enquires from our wide range of products
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
