Home > Products > Electrical tools > Digital Clamp Multimeter Pocket digital ammeter Clamp Meter Auto Shutdown Capacitor Anti-Burn

Share|

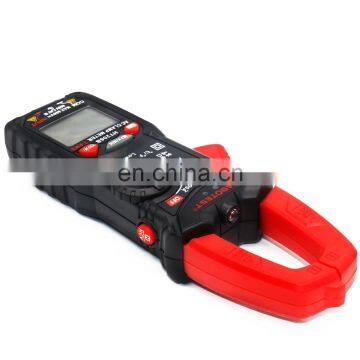

Digital Clamp Multimeter Pocket digital ammeter Clamp Meter Auto Shutdown Capacitor Anti-Burn

FOB Price

USD $28.79 - $31 / Set

100 Sets(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	HOTOTECH	Place of Origin:	Guangdong, China	Model Number:	HT208D
Weight:	Appro*.380g	Operating Temperature:	-40℃~1000℃	Dimensions:	240mm85mm40mm
Measuring Inductance Range:	no	Measuring Capacitance Range:	60nF to 60mF	Measuring Resistance Range:	600Ω to 60MΩ
Measuring Voltage Range:	6V/60V/600V/1000V	Measuring Current Range:	60A/600A/1000A	Display Type:	Digital Only

Product Description

HT-208D

Measure true effective value Crossflow clamp meter/portable clamp multimeter

feature
--Pocket-size clamp meter
--6000 counts
--Sample Rate is 2 times/sec
--AC current measuring capability up to 1000Amps
--True RMS measurement on AC mode
--Inrush Current Measurement
--NCV (Non-Contacted Voltage detection)
--Data hold
--Auto Power Off (15 min)
--Backlight
--Auto Ranging
--Low Power Indication
--EN61010 600V CAT III

specifications	range	accuracy
specifications	range	HT208A	HT208B	HT208D
DC Voltage	6V/60V/600V/1000V	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)
AC Voltage	6V/60V/600V/750V	±(1.2%+3)	±(1.2%+3)	±(1.2%+3)
DC Current	60A/600A/1000A			±(3.0%+5)
AC Current	60A/600A/1000A	±(3.0%+5)	±(3.0%+5)	±(3.0%+5)
Resistance	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)
Capacitance	60nF/600nF/6uF/60uF/600uF/6mF/60mF	±(4.0%+3)	±(4.0%+3)	±(4.0%+3)
	100mF	±(5.0%+5)	±(5.0%+5)	±(5.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/ 100kHz/1MHz/10MHz	±(1.0%+3)	±(1.0%+3)	±(1.0%+3) ±(1.0%+2)
Duty	1%~99%	±(1.0%+2)	±(1.0%+2)	±(1.0%+3)
Temperature(℃/°F)	-40℃~1000℃	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)
Temperature(℃/°F)	-40°F~1832°F	±(1.0%+3)	±(1.0%+3)
Counters		6000	6000	6000
Auto/manual range		√	√	√
Bargraph			√	√
NCV (LED and Buzz)		√	√	√
Diode		√	√	√
Continuity (LED and Buzz)		√	√	√
MAX/MIN hold		√	√	√
Data hold		√	√	√
True RMS		√	√	√
AC bandwidth		1KHZ	1KHZ	1KHZ
Low battery indication		√	√	√
Auto power off		√	√	√
Double color backlight		√	√	√
Flashlight		√	√	√
LPF			√	√
V-Loz			√	√

Power:2*AA batteries

Weight:Appro*.380g

Size:240mm*85mm*40mm

Safety rating:EN61010-1,-2-030

EN61010-2-033

EN61326-1

CAT III 1000V

CATIV 600V

company

Packing & Delivery

FAQ

-Do we support OEM or ODM?

-Will the original R&D manufacturing paint have a price advantage?

-Are you products high quality products?

-Do we have a good team?

-Does our product support global after-sales service ?

-Are our product certified?

every answer is "YES"
