Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-5321 |
Packed with customized box +carton box
Product Description

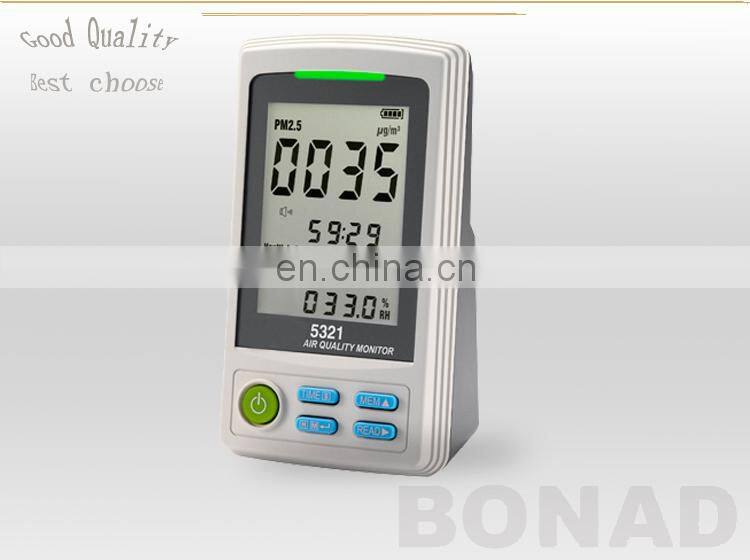

PM2.5 Air Quality Monitor
PM2.5 Air Quality Monitor
- Fine particulate matter (PM2.5) measurement.
- Mix gases (VOCs-Volatile organic compounds) measurement.
High sensitivity to H2, C2H5OH, C4H10, CO and CH4. (5322) - Temperature and Humidity measurements.
- Health index (0 ~ 9) detection and alarm.
- PM2.5 time weighted average reading.
- VOCs time weighted average reading. (5322)
- Data hold and MAX/MIN with time stamp function.
- Six-color LED indication Air Quality Index Category.
- Preset warning point of buzzer alarm, LED and alarm output.
- Manual data memory and read function.
- Auto data logger function. (5322)
- USB Interface. (5322)
Electrical Specifications:
Air Pollution Regulation | WHO | European Union | USA | Canada | Australia | Japan | South Korea | Hong Kong | China | Thailand | Taiwan | ||||||
IT-1 | IT-2 | IT-3 | AQG | United States | California | Class1 | Class2 | ||||||||||
PM2.5 mg/m3 | Yearly average | 35 | 25 | 15 | 10 | 25 | 12 | 12 | - | 8 | 15 | - | 35 | 15 | 35 | 25 | 15 |
Dailyaverage (24-hour) | 75 | 50 | 37.5 | 25 | - | 35 | - | 30 | 25 | 35 | - | 75 | 35 | 75 | 50 | 35 | |
SPECIFICATIONS
Measurement Range | PM2.5 : 0 to 500mg/m3 VOCs : 1 to 50ppm (5322) Humidity : 1% to 99%R.H. Temperature : -20℃ to +60℃ (-4℉ to +140℉) |
Resolution | 1mg/m3, 1ppm, 0.1% R.H., 0.1℃, 0.1℉ |
Accuracy | PM2.5 : ±10% of reading±10mg VOCs : ±10% of reading±1ppm (5322) Temperature : ±0.8℃, ±1.5℉ Humidity : ±3%RH (at 25℃, 30 to 80% RH). ±5%RH (at 25℃, 0 to 20% RH and 80 to 100% RH). |
Response time | PM2.5 : <=1min Humidity : 45%R.H. to 95% R.H. <=1min 95%R.H. to 45%R.H. <=3min Temperature : 10℃/2 sec. |
Sampling rate | 1 sample/second. |
Data Memory Capacity | 39 sets. (Direct reading from LCD display) |
Data Logger Capacity | microSD CARD 4GB (5322) |
Alarm Output | Open-collect output. Input impedance: 490W Maximum applied Voltage: 24V DC Maximum drive current: 50mA DC |
Operating temperature and humidity | 0℃ to 60℃, below 95% R.H. |
Storage temperature and humidity | -10℃ to 60℃, below 70% R.H. |
Power supply | Four 1.5V LR-6/AA size batteries, AC adapter |
Battery life | Approx. 8 hour |
Dimensions | 165mm(L)×93mm(W)×75mm(T) , (6.5”L×3.7”W×3”T) |
Weight | Approx. 380g (13.4oz) |

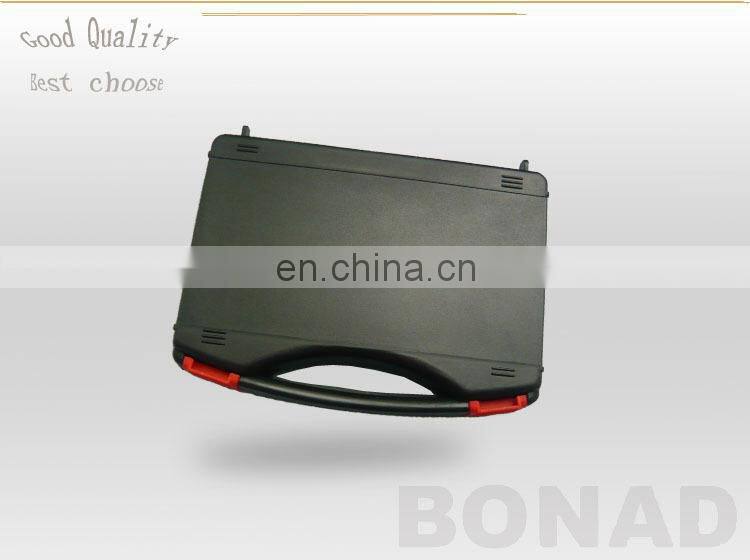

Accessories | Instruction manual, Battery, AC adaptor DC6V, (CD software & Micro-USB cable) (5322) |
Shipping
1. FedEx/DHL/UPS/TNT/EMS;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: about 3-7Days working days after receiving payment.
Payment Terms
1. Payment: T/T,L/C ,D/A,Western UNION ,MoneyGram
2. MOQ: 1pcs
3. Warranty : 1 year
