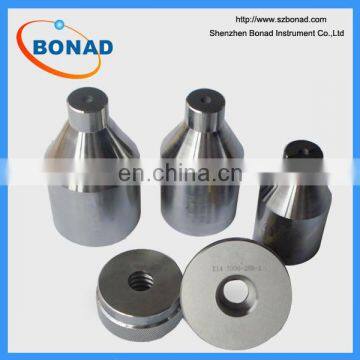

7006-26-4 Go Gauge For Lampholders gauge E27
- 100 Piece / Pieces per Month
- Shenzhen.China
- T/T Credit Card
You May Like
-
IEC60061-3 E27 Lampholder gauges GO GAUGE
-
PLUG GAUGE FOR E14 7006-30-2 LAMPHOLDER FOR TESTING CONTACT-MARKING
-
Gauge For Testing Contact-Making of Lamps In Lampholders E14 7006-30-2
-
BS 1363 Figure 16 Insert pull-out force gauges
-
BS 1363 Figure 33 British Standard Plugs Socket-Outlets Gauges
-
BS 1363 Figure 15 - Turning Moment Gauge
Product Details
| Brand Name | BONAD, BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND- E27, BND- E27 |
aluminum box +carton box
Product Description
"Go" Gauge For Lampholders E27, 7006-25A-2
"Go" Gauge For Lampholders E27, 7006-25A-2
Purpose: to check
a) the minimum dimensions of the lampholder screw thread according to sheets 7004-21 and 7004-27
b) dimension X according to sheet 7005-20
c) the machnical compatibility of the lamp holder with respect to lamps have adverse dimensions
Testing: It shall be possible to screw the threaded part of the gauge into the lampholder without using undue force.
when the gauge has be screwed in as far as it will go, mark Y on the plunger shall be co-planar with mark A on the shaft.
the sleeve is then placeed over the shaft of the gauge with its open end resting on the top edge of the screw shell of the holder. with the sleeve in this position, the plunger is pushed down as far as it will go.
surface B of the gauge shall then lie between the marks X1 and X2 on the plunger or be co-planar with either of them; it shall not lie beyond them.
