Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-PG |
aluminum box +carton box
Product Description

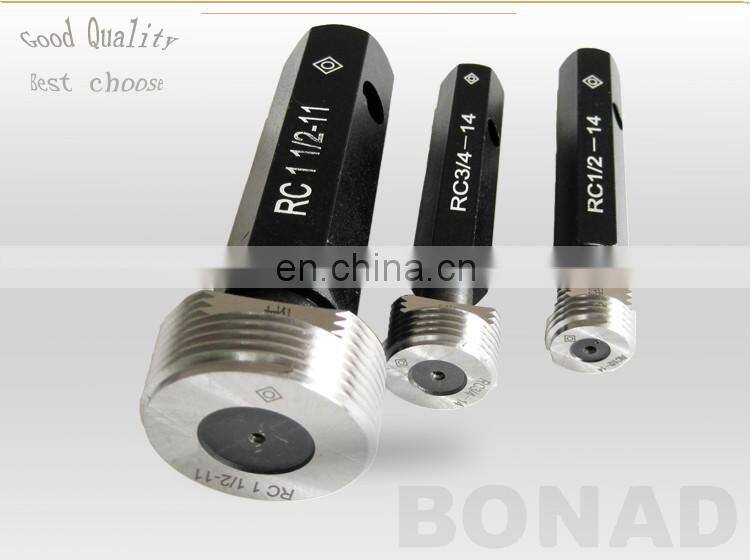

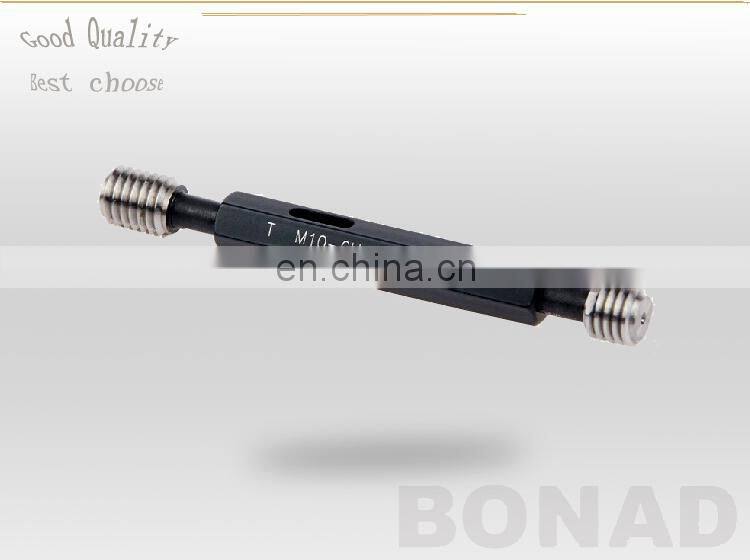

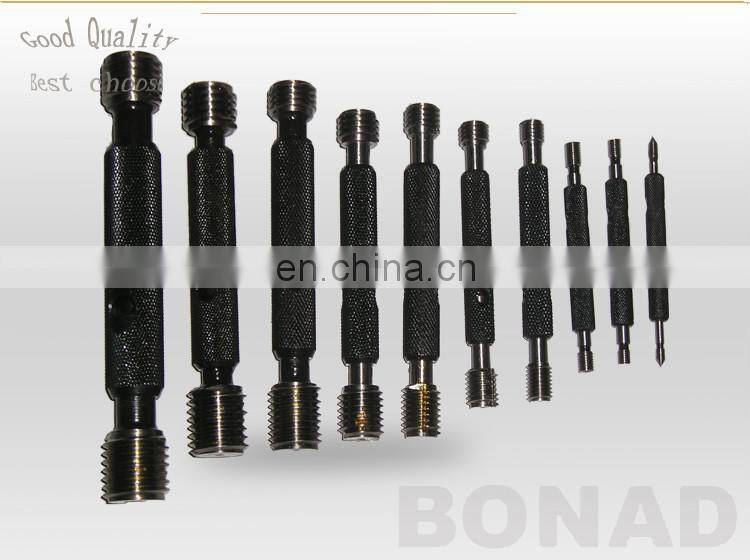

internal thread /external thread gauge/go no go gauge M1 to M36
internal thread /external thread gauge/go no go gauge M1 to M36
We accept custom made including thread ring&plug gauge,master ring gauge&plain ring gauge for
America standard:UN ,UNC,UNF,UNEF,UNS,NPSC,NPSM,NPSH,NPSF,NPSI,NPSL,NH
UK standard: BSW,BSF
JP standard: PT
Germany standard:DIN
and other custom made standard.
please tell us your require dimension that we will provide the best quality and price for you
if you need a certification for the master ring gauges&plain ring gauges, we can send the gauges to The third party testing institutions after we already produce the gauges.
1: Thread Plug Gauges are used to gauge threaded holes prior to insertion of screw thread inserts.
2: Thread plug gauges check the size of internal threads to ensure the threads are within its designed
tolerance limits.
3: Precision hand lapped to provide superior accuracy, optimum finish and maximum wearability.
4: Screw thread inserts are used to repair a damaged thread or to provide stronger thread assembly.
5: GO and/or NO GO thread plug members; Class 6H of fit for metric thread plug;
Class 6H of fit for metric thread plug.
6: Clcoil STI thread plug gages are manufactured of oil hardened tool steel; Most Metric sizes in the stock.
Shipping
1. FedEx/DHL/UPS/TNT/EMS;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: about 7-15 working days after receiving payment.
Payment Terms
1. Payment: T/T, Western Union, PayPal in advance ; 30% deposits,70% balance before delivery
2. MOQ: 1pcs
3. Warranty : 1 year
