Free Shipping IP3X Safety Test Finger IEC61032 Figure3 Test Needle

Packed with Aluminum Foil box +carton box

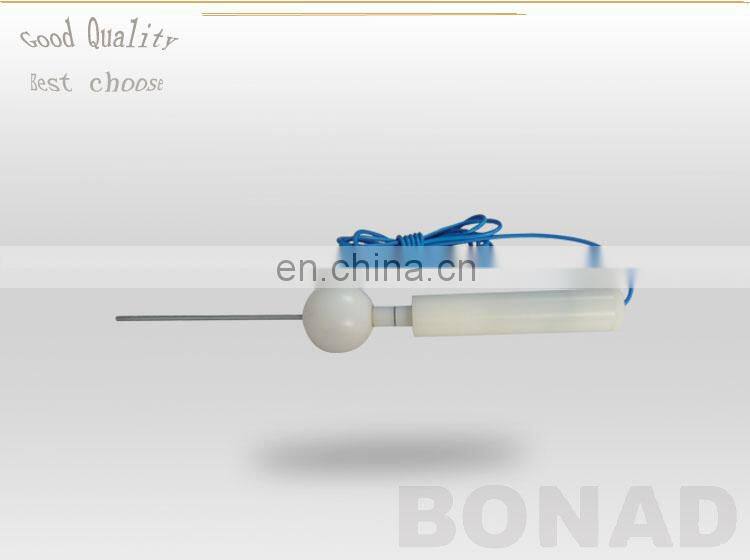

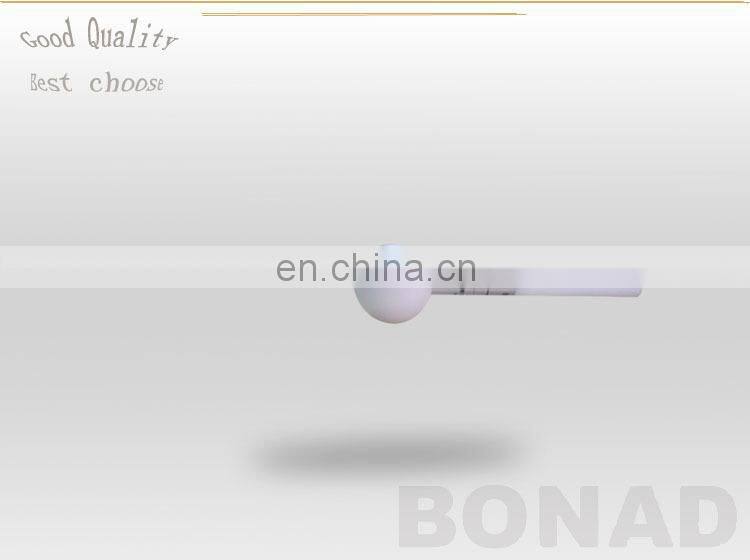

Free Shipping IP3X Safety Test Finger IEC61032 Figure3 Test Probe C

Test Probe C/  IEC61032 IP3X Test Probe C

Article NO.:BND-C

Basic Introduction:

1, According to: IEC61032:1997/IEC60529:2001 AND UL

2, IP3X Test Probe C ( Test Probe C)  is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

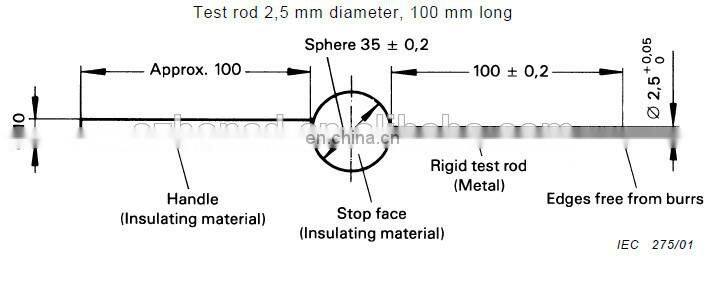

Technical parameters

1,  Test Probe Length :100mm

2,  Test Probe Diameter:2.5mm

3,  Dam- sphere Diameter:35mm

4,  Handle Diameter:10mm

5,  Handle Length 100mm

6,  According to IEC61032 figure 3 (the Test probe C), table 6

Purpose:

This probe is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a tool.

Application:

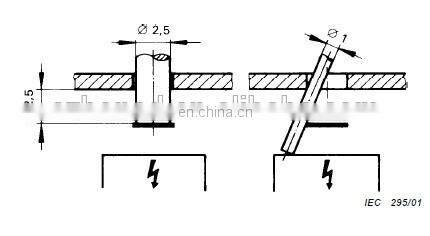

1, Standard test refers to the joint part can't touch the live parts or close to the dangerous parts, and 35mm circular baffle can not be enter .

2, In the test requirement for preventing access to the hazardous parts,  Test Probe C/D need to be with push force 3±0.3N or 1±0.1N

Note:

For the without force products,please use with the dynamometer.

Pictures showing:
