IEC/CEI/EN 61032 Short Test Pin Probe 13

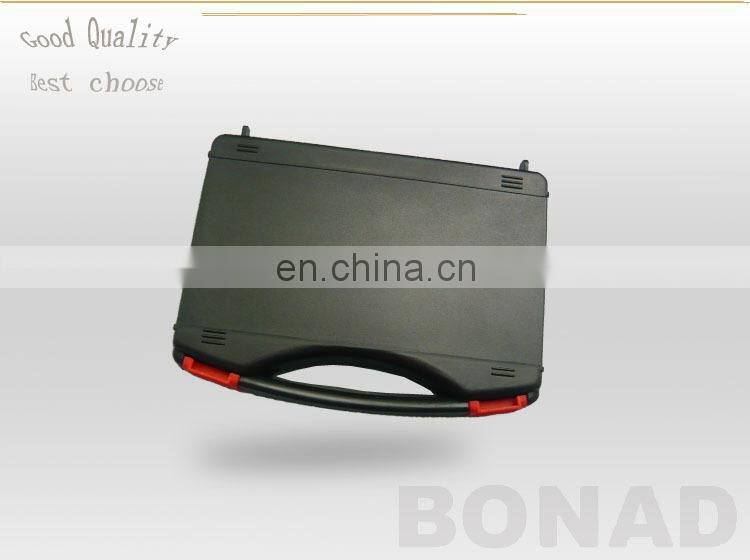

plastic box+carton box

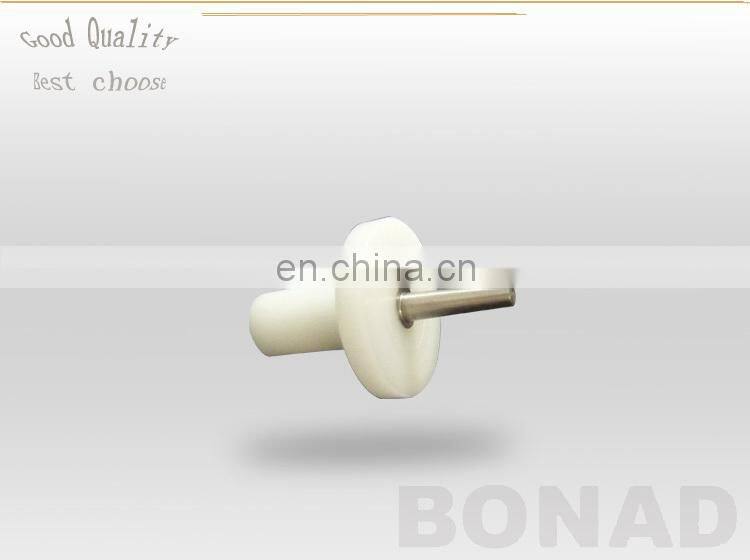

 IEC/CEI/EN 61032 Short Test Pin Probe 13

Article NO.:BND-13

in accordance with VDE 0470 part 2 picture 9 probe 13 resp. IEC/EN 61032
Additional standards: IEC/EN 60950 and IEC 60035
Access probe for the ascertainment of protection of persons against access to dangerous, active parts in the
equipment of protection classes 0 and II.

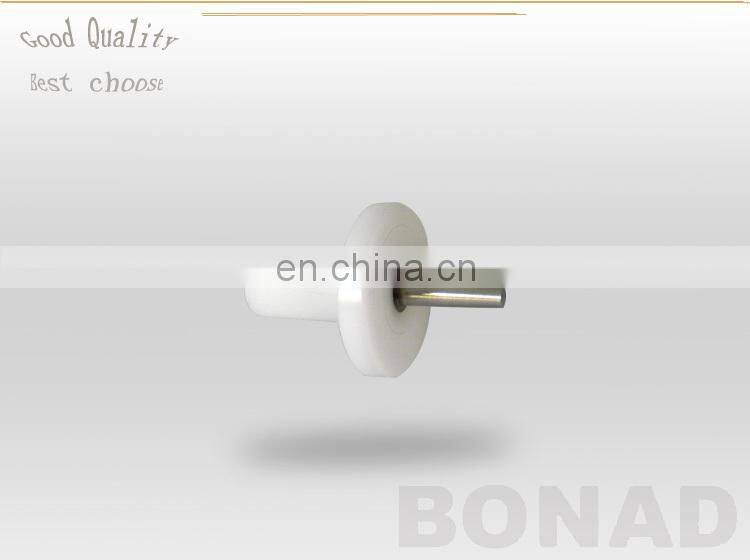

The cylinder test pin is 15 mm long and passes conical from Ø 4 mm to Ø 3 mm. The probe part is made of highgrade
steel and enclosed in a plastic holder.
There is a 4 mm receptacle conductively connected to the probe for contact- and continuity checks.

Specification:

1, According to: IEC950,IEC335-1,IEC61032,IEC60065,IEC60950

Technical Parameters:

1,  Head Diameter:3mm

2,  Tail Diameter : 4mm

3,  Dam-board Diameter: 25mm

4,  Dam-board Thickness:4mm

5,  Reference Standards: IEC61032:1997 in figure 9

Appliance:

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC 60536).Test pin metal parts can not touch the live parts or close to the dangerous parts

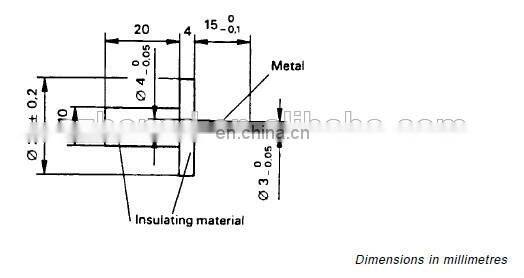

Figure 9 – Test probe 13
