IEC61032 Unjointed Test Finger Probe 11 for Electrical Safety Test

Aluminum box+Carton box

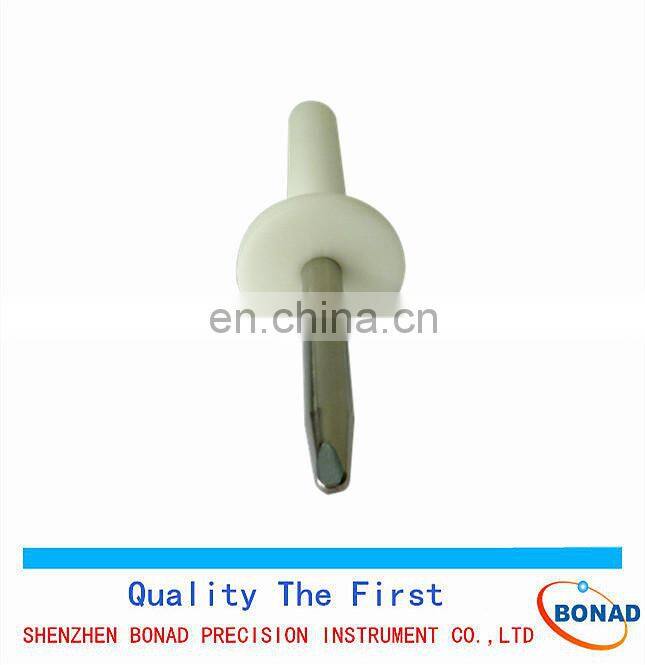

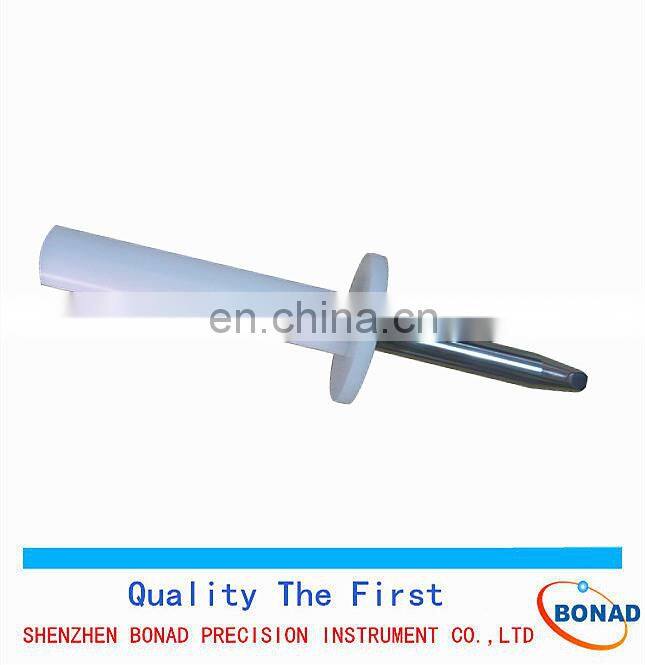

IEC61032 unjointed test finger probe 11 for electrical safety test

Bonad offers a wide range of probes to meet the most common standards including those from IEC, EN, UL, GB, and others. Such standards require the checking of accessibility to dangerous parts of home electronics and appliances, toys, tools, and a host of other products that are intended to be protected by enclosures. These probes simulate human fingers, tools, and other items that would be hazardous to come in contact with certain parts of products.

These probes are constructed from Delrin and appropriate steel with a hardness of at least 50 HRC and a roughness that does not exceed 1.6 um. Each probe is supplied with a certificate of calibration and comes in an individual aluminium box with a clear cover.

Basic Introduction:

1,According to the Standards: IEC61032 IEC60065 IEC60335-1 IEC60884

2,BND11Rigid Test Finger necessary appliances for household and similar electrical appliances to protection against electric shock test.

Technical parameters

1, Nodular Finger Diameter :12mm

2, Nodular Finger Length:80mm

3, Dam- board Diameter:50mm

4, Dam- board Length:100mm

Application:

1.The finger of the Test Finger Probe cannot touch the live parts or close to hazardous parts, and 50mm-20mm dam-board cannot enter.

2.In the test of preventing from accessing to the hazardous parts, the thrust should be applied when using the Test Finger Probe With Force.

3,This probe may be used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers.
