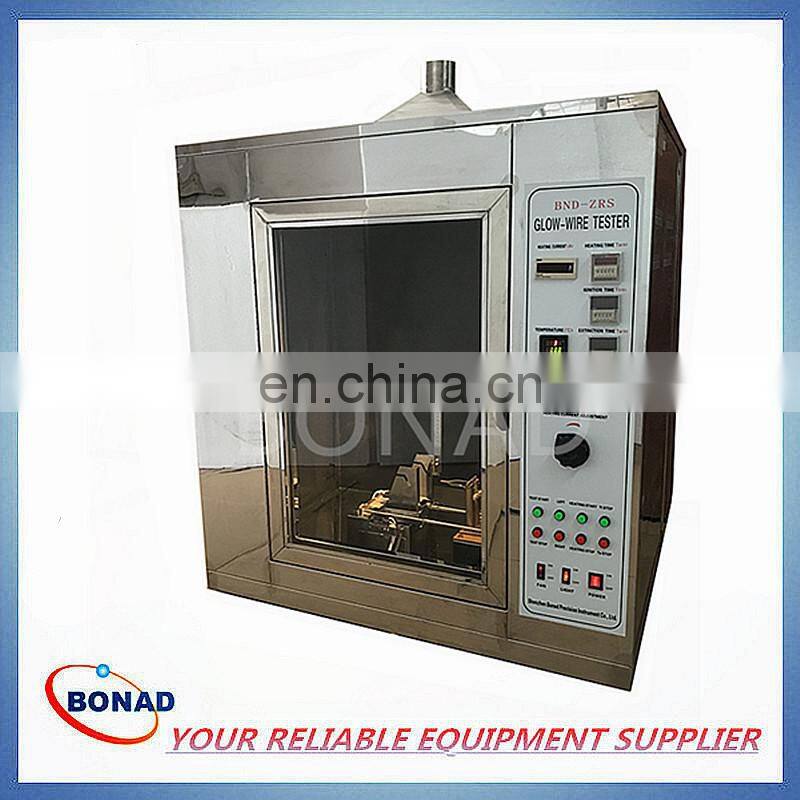

Glow Wire Test Apparatus for GWFI Test of IEC60529

Glow wire test apparatus for GWFI test



Introduction:

1. The glow wire test is an IEC60695-2-10, UL 746A, GB / T5169.10, GB4706.1 and other standards that require the use of flameless ignition source program simulation test items.

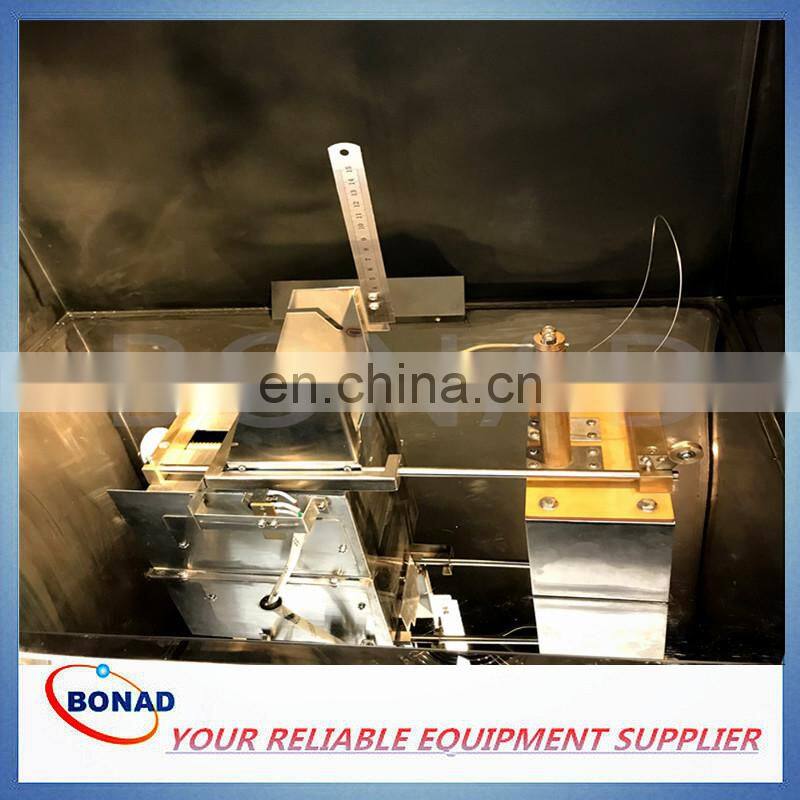

2. The glow wire test chamber heats the specified material (Ni80 / Cr20) and shape of the heating wire (nickel chromium wire of Φ 4 mm) with a large current to the test temperature (550 ℃ ~ 960 ℃ for 1 minute, and then the specified pressure (1.0N) Vertically burn the test sample for 30s. Determine the fire hazard of the finished electrical and electronic equipment depending on whether the test sample and the bedding are on fire or hold time. ), Flammability and Flammability Index (GWFI).

3. Glow wire test chamber is suitable for research, production and quality inspection departments of lighting equipment, low-voltage electrical appliances, electrical instruments, and other electrical and electronic products and their components.

Specification:

1. Glow wire temperature: 500 ~ 1000 ℃ (±2 ℃) continuously adjustable
2. Glow time: 0-999.9s ± 0.1s adjustable (generally select 30s)
3. Ignition time: 0-999.9s ± 0.1s, automatic recording, manual pause
4. Off time: 0-999.9s ± 0.1s, automatic recording, manual pause
5. Thermocouple: Φ0.5mm imported armored (K type) thermocouple
6, glow wire: Φ4 mm nickel-chromium wire
7. Ironing depth: 7mm ± 0.5mm
8. Sample pressure: 1N ± 0.2N
9. Test speed: 14mm / s
10. Test background: black background
11. Test process: automatic control of test procedures, independent ventilation
12. Reference standards: GB / T5169.10-2006, IEC60695-2-10: 2000, UL746A
13. Atelier volume: 0.5 cubic meters, stainless steel cabinet (can be customized according to customer requirements 0.75 cubic meters or 1 cubic meter)
14. External dimensions of the equipment: 1000mm wide × 650mm deep × 1300mm high
