CTI Test House for Insulating Material

CTI test house for insulating material

Instrument

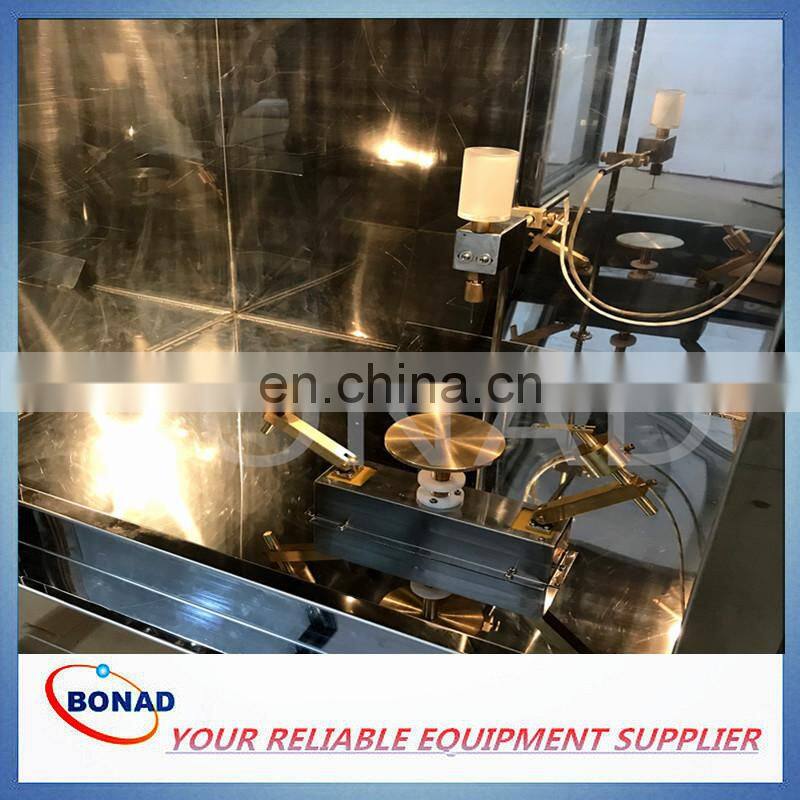

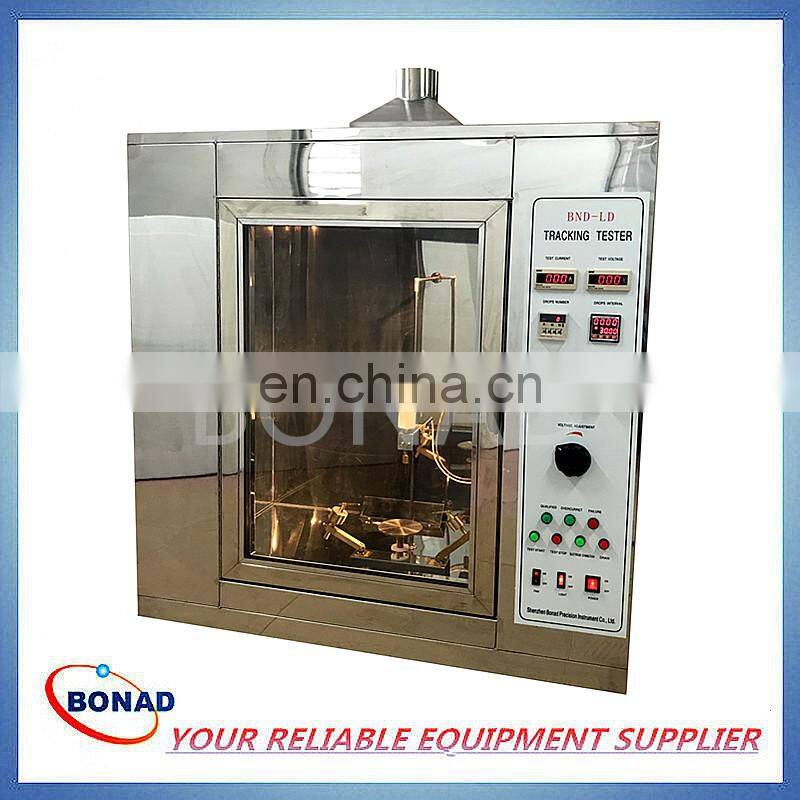

The CTI Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. Inside the well lit cabinet, a test specimen is placed on a glass plate and two platinum electrodes are lowered onto the top surface. A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed. The voltage, limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.

Application

The Tracking Tester is used for the determination of comparative tracking indices of solid electrical insulating materials on pieces taken from parts of electrical and electronic equipment and on plaques of material using alternating voltages. In normal use, components made of insulating material may become moist and dirty. If the impurities are electrically conducting, current will flow between parts of different voltage potentials creating a track. As a result, small flashovers may occur, which cause thermal stresses to the surface of the insulating material. The visual result of thermal decomposition of the insulating material caused by the tracking current is called the track. The interconnecting formation of carbonized material forms a tracking path, by which a lasting current conducting connection results. Thereafter the component cannot fulfill its intended electrical function in the majority of cases and parts may catch fire. The resistance of an insulating material to track formation is called the tracking resistance.

Conforms To:

IEC60112 (2003) ,IEC60745-1, IEC60335-1, IEC60598-1, IEC60884-1, GB7000.1, GB4207

Specification:

1, The electrode material: tip - platinum

2, The electrode pressure: 1.0 ± 0.05N

3, Electrode distance: 4.0mm ± 0.01mm, the angle 60 ° ± 5

4, Electrode voltage: 100 ~ 600V (48 ~ 60HZ) adjustable, short-circuit current 1.0 ± 0.1A voltage drop of less than 10%

5, Dropping height: For 30 ~ 40mm adjustable

6, Dropping size: 44 ~ 55 drops / 1cm3 adjustable

7, Dropping time: 30s ± 5s,

8, Drip: 0 ~ 9999 times available

9, The leakage judgment: loop current is greater than 0.5A and maintained for 2 seconds, cut off the current relay indicates sample failed

10, The testing process: test procedures automatic control, independent ventilation

11, Reference standard: IEC60112, GB / T4207, GB4706.1

12, Studio Volume: 0.5m3
