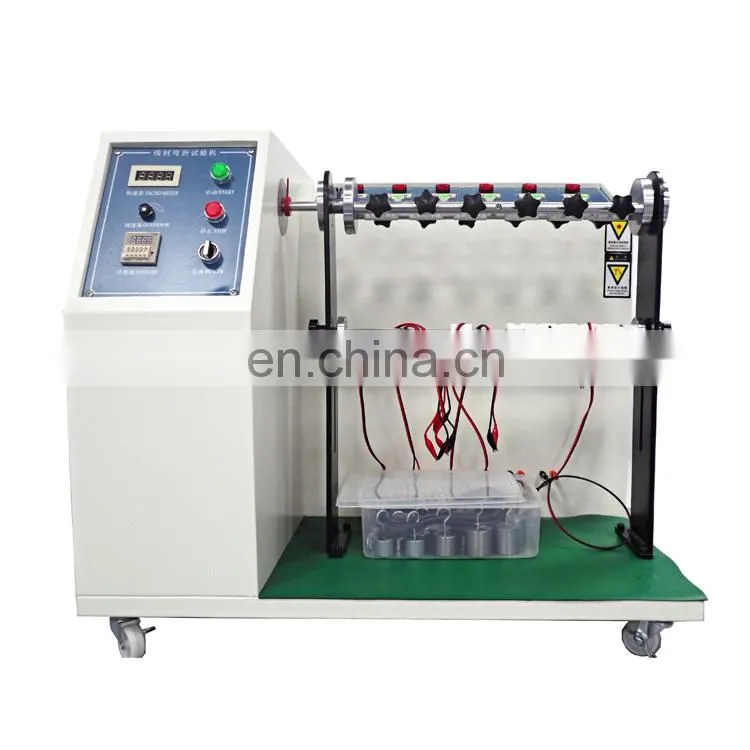

Wire bending test machine Cord wire swing tester
Summary
Wire bending test machine Cord wire swing tester is suitable for the plug pinouts, power cord, USB cable, headphone cable, audio cable, headphone cable and other products wire rod bending tests or swing test. The specimen is fixed at fixture, and adding certain load, test swing around and through a few times, its outage, and view the total number of oscillations, it can automatically count, try to bend to break when not powering on, and automatically stop operation. Native UL817 related standards such as "cords-General safety requirements for components and power supply cords" provisions and general technical requirements for the headphone wire bending tests of the standard GB/T14471-93.
Main Parameters
| Test stations | 6 groups |
| Bending angle | 0-180 ° adjustable |
| Test speed | 10-60/min |
| Control system | Digital with LCD screen |
| Counter | 0-999999 |
| Load weight | 50, 100, 200, 300, 500g |
| Machine weight | Approx 100kg |
| Power | AC220V, 50HZ |
Features
1,The Cabinet with electrostatic paint treatment, according to various standards of design, machine design is reasonable, Fastening structure, safe, stable and accurate;
2, Counter can be preset, test, test automatic counting of conduction, reached number machine Stop with power off memory function, convenient and practical;

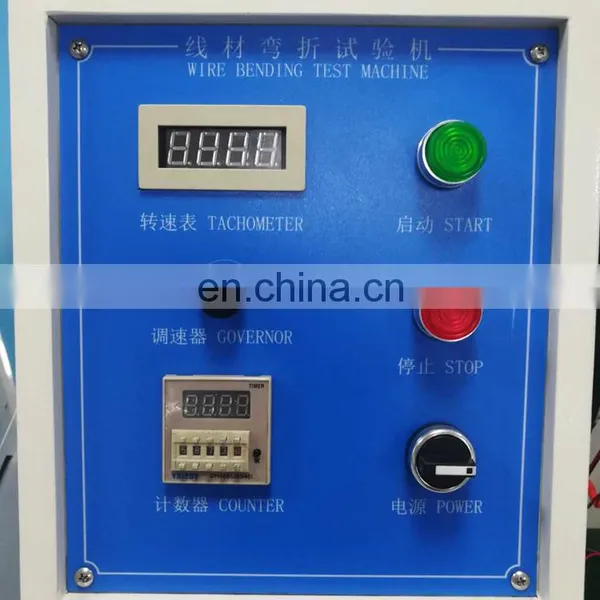

3, Speed knob adjustable, LCD display, set customers according to their requirements, the user-friendly design;
4, Manually adjustable bending angle, indicates the needle indicates the scale dial, to better regulation;

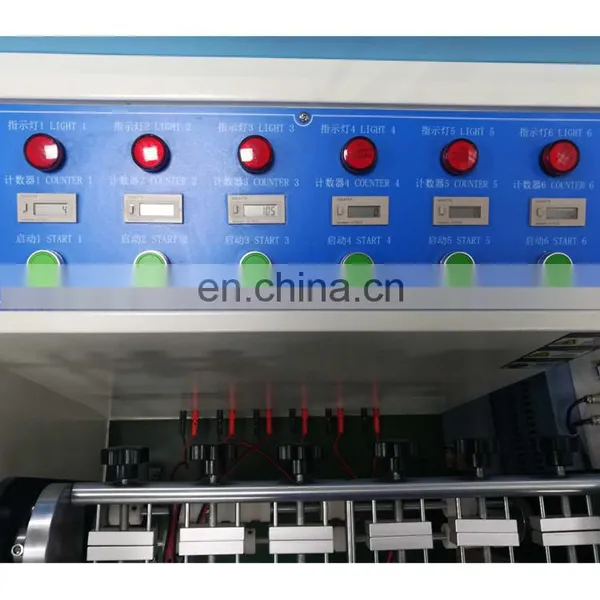

5, Six stations while working independently, respectively, counting, one line, the corresponding counter
Stop counting machine as usual test, improve testing efficiency;

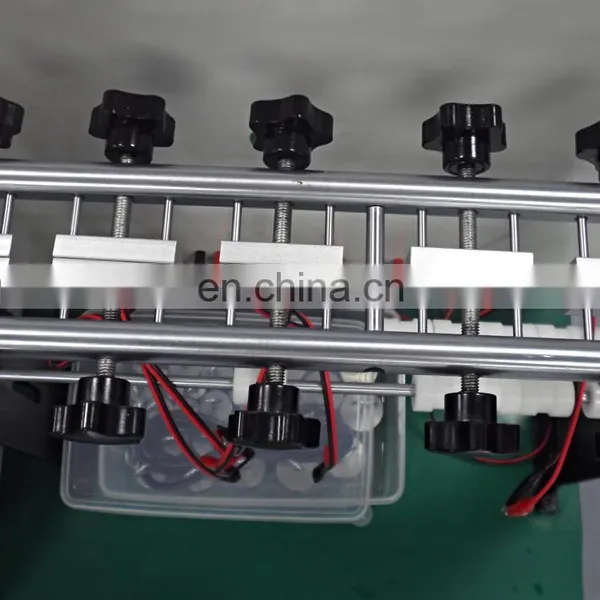

6,Six groups of nonslip, easy to damage materials specially designed handle, clamping products more convenient, fast;
7, Test rods can be adjusted up and down, according to the standard requirements, and test better;
8, The distribution of weights with hook loading, multiple stacking, hanging more convenient.

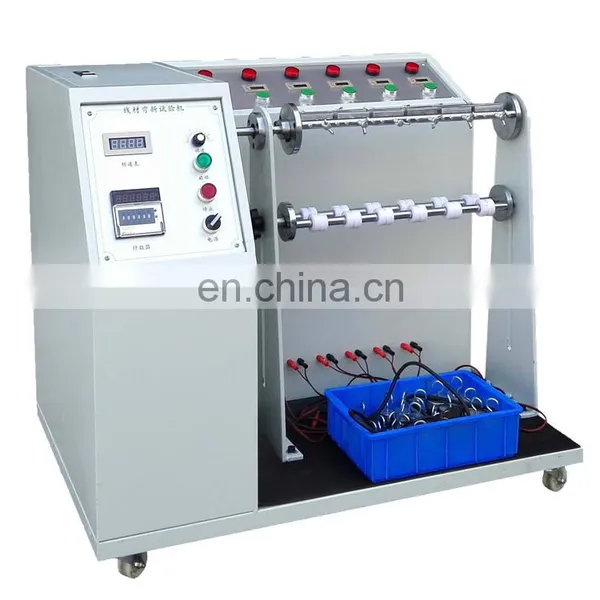

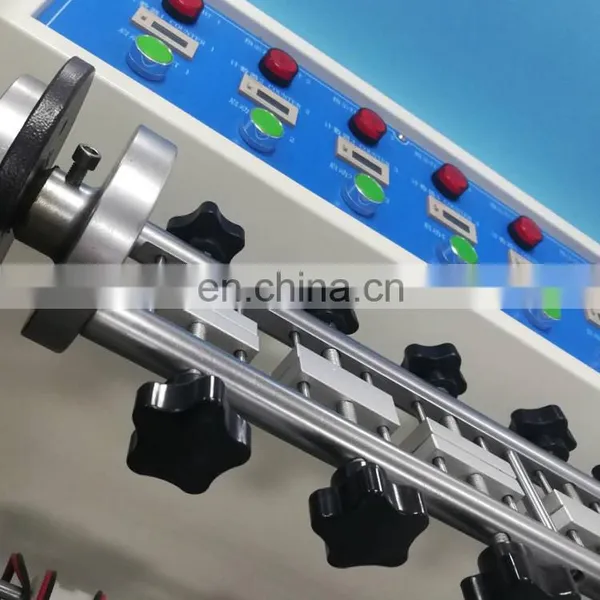

Detailed Images
Customer case 1
Customer case 2
