Taiwan Dongfeng PPG-02 Series PPG-02-315 PPG-02-30 PPG-02-80 PPG-02-180 PPG-02-250 Proportional Reducing Valve
US$ 465 - 495
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
Trade Assurance ATOS QVHZO Series QVHZO-TEB-SN-NP-06/18 Pressure Flow Valve
-
Rexroth Hydraulic Solenoid Valve 4WRL25V370M-30/G24Z4/M MNR 0811404405 4WRPH6C3B24L=20-G24Z4/M=0 R901349901 Made in Germany
-
Rexroth DRE6-1X DRE6-10 DRE6X-1X DRE6X-10 Series DRE6-1X/100MG24K4M Proportional Control Valve
-
Rexroth DRE6-1X DRE6-10 DRE6X-1X DRE6X-10 Series DRE6-1X/50MG24K4M Proportional Control Valve
-
Rexroth DRE6-1X DRE6-10 DRE6X-1X DRE6X-10 Series DRE6X-1X/175MG24-8NZ4M Proportional Control Valve
-
Rexroth DRE6-1X DRE6-10 DRE6X-1X DRE6X-10 Series DRE6X-1X/245MG24-25NZ4M-8 Proportional Control Valve
Product Details
| Brand Name | Dongfeng | Place of Origin | Fujian, China | |
| Type | Valves |
Product Description
Product Description

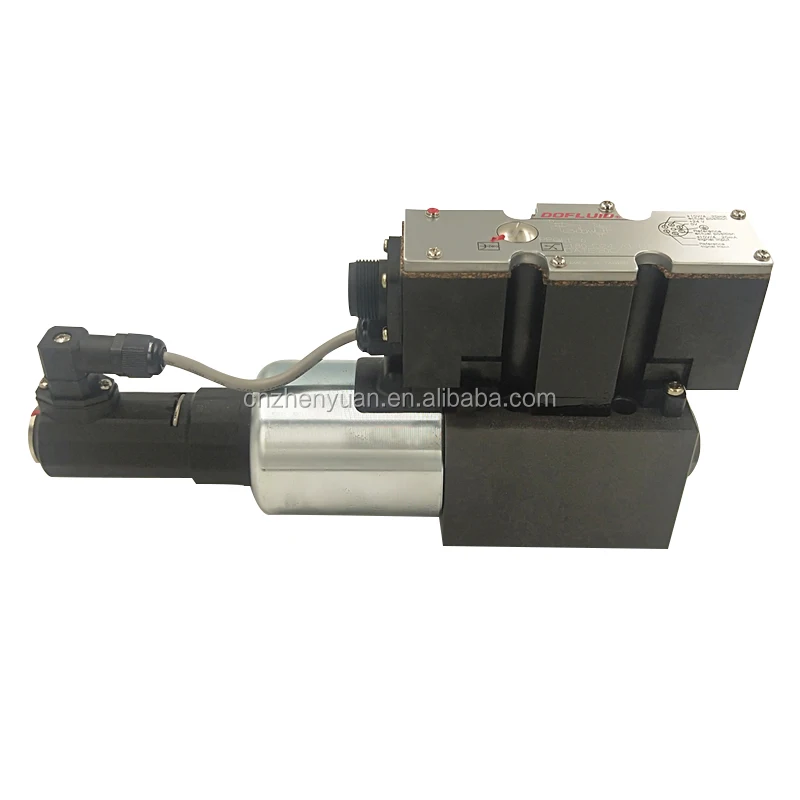

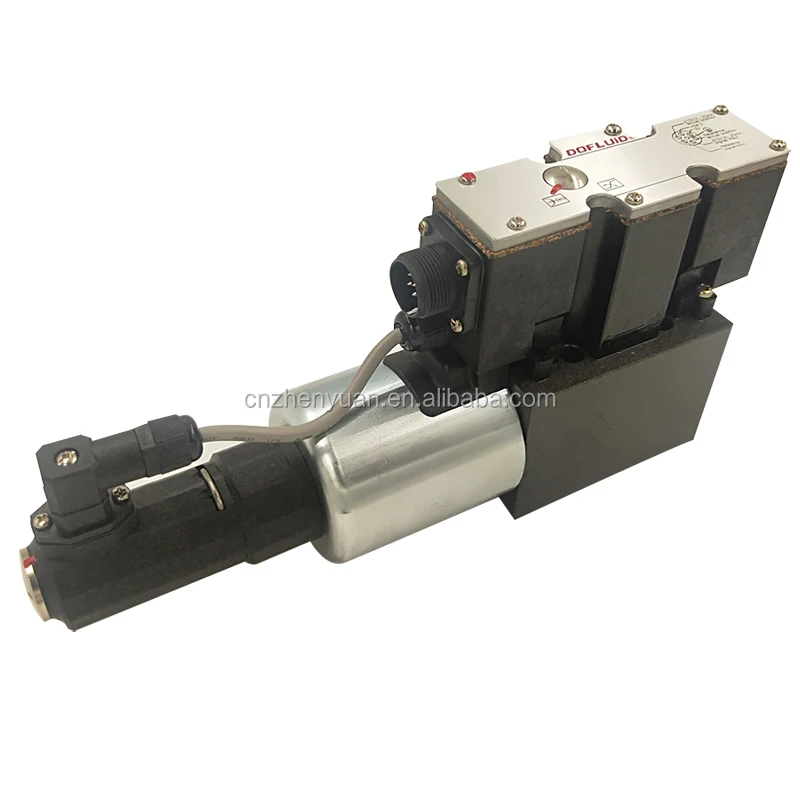

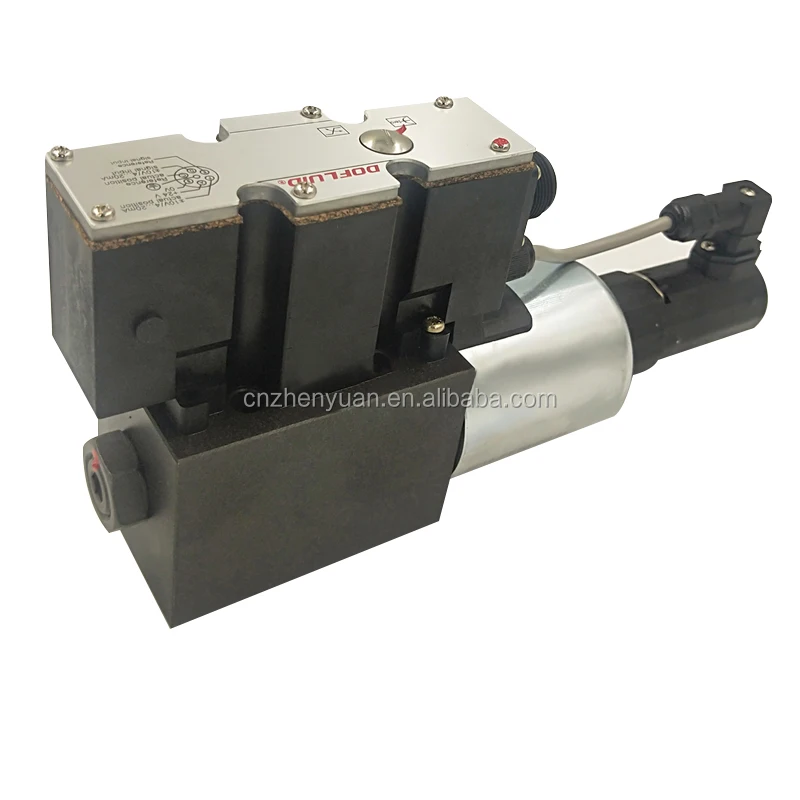

Taiwan Dongfeng PPG-02 series PPG-02-315 PPG-02-30 PPG-02-80 PPG-02-180 PPG-02-250 Proportional reducing valve
Pilot proportional pressure reducing valve
Characteristics of the
-1. Valve for reducing system pressure
-2. Operate by proportional electromagnet
-3. Proportional electromagnet with rotatable and detachable coils
-4. For baseplate mounting: the mounting surface of the oil port conforms to ISO 5781
-5. Third oil route from A to Y (7.5mm)
-6. Linearized pressure/given value characteristic curve
-7. Good transient response
Optional one-way valve can be installed between A and B
-9. Optional pressure limit
-10. Band integrated electronic components (OBE)
The manufacturing tolerance of the pressure characteristic curve of the set value is small
Collecting valve | Maintaining valve | |
Throttle valve | Relief valve | Solenoid directional valve |
Speed regulation valve | Pressure reducing valve | Manual reversing valve |
Diverter valve | Pressure valve | Check valve |
Flow valve | Cartridge valve | Hydraulic control one-way valve |
Collecting valve | Stop valve | Solenoid valve |
Pilot valve | Reverse check valve | Superposition valve |
Direct acting relief valve | Pilot check valve | Directional valve |
Pilot relief valve | Sequence valve | Pilot sequence valve |
Pilot reducing valve | Balance valve | Direct acting sequence valve |
