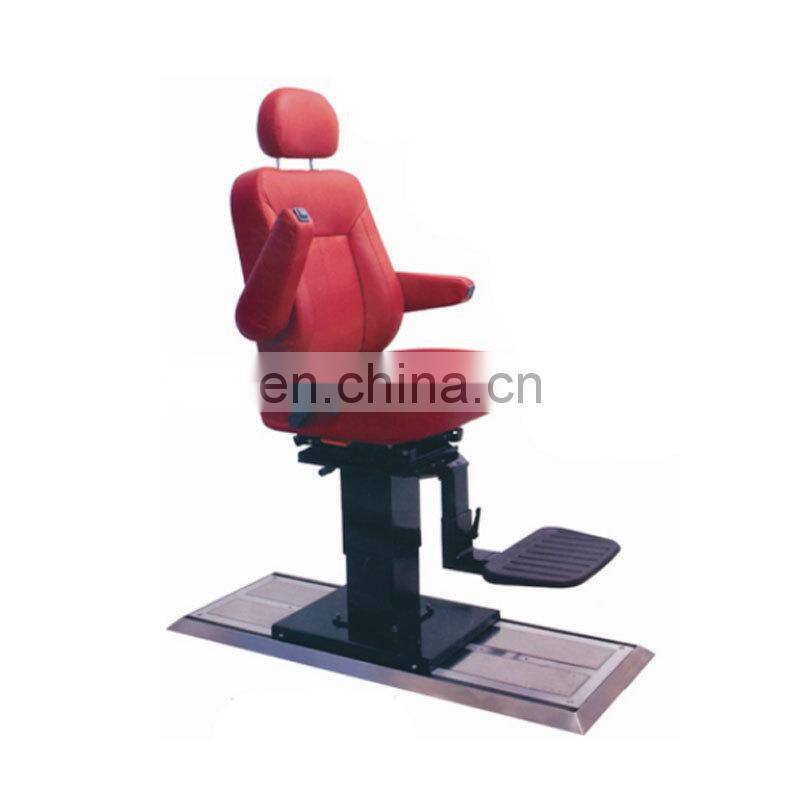

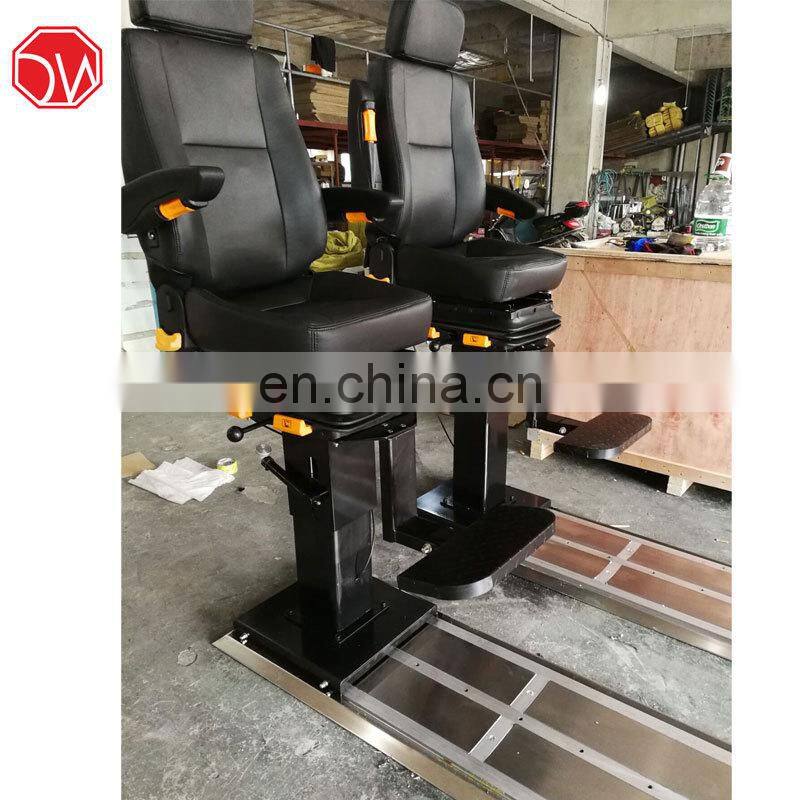

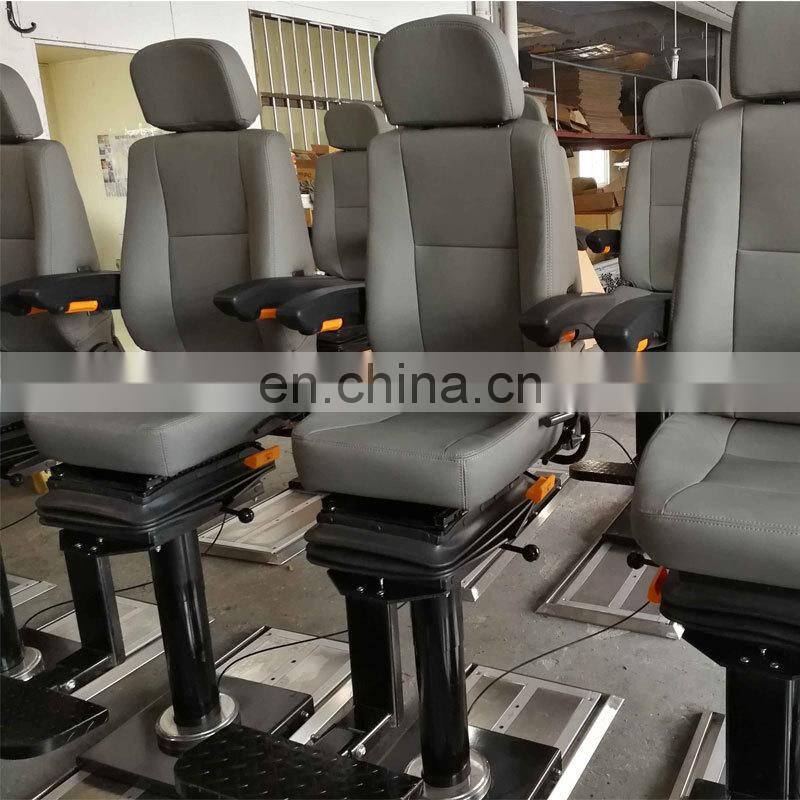

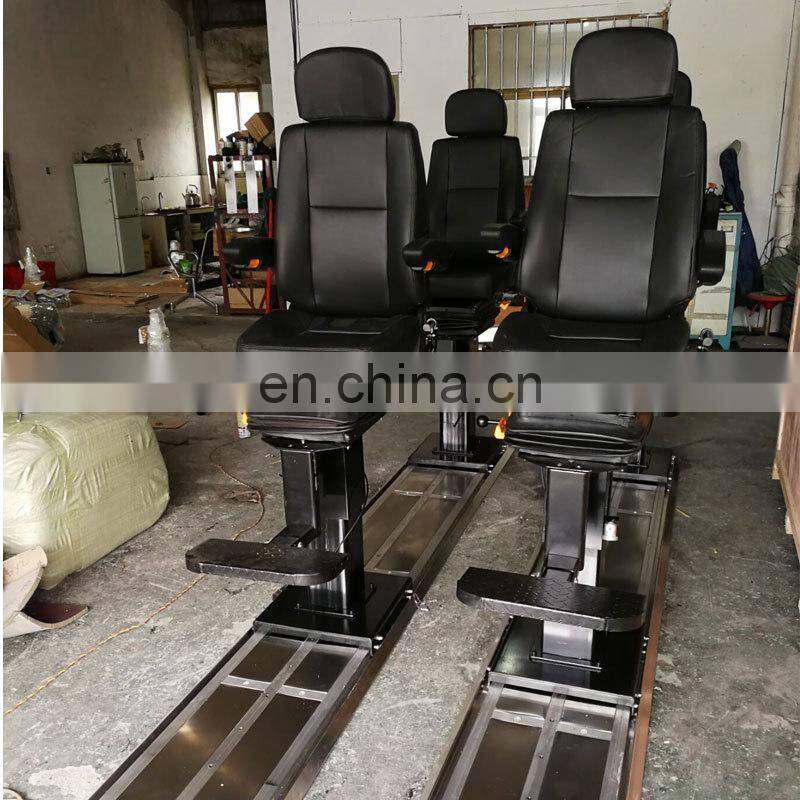

CCS Approved Aluminum Alloy Marine Pilot Chair

Function:

1.Ergonomic design;

2. Seat can move in high strength double-slide rail;

3.Adjustable backrest and headrest;

4.Seat height may be angle adjusted;

5.Seats can be moved back and forth;

6.Folding / angle-adjustable comfortable seat armrest;

7.Seat can rotated 360 degrees, multi-point positioning;

8.Foot pedal height adjustable / folding;

9.Column can be vertically lifting;

Material:

1.Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel;

2.lifting column with steel,stainless steel synthesis;

3.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;

4. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth;

5.Pedal steel plate inner core and environmentally friendly rubber synthetic;

6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;

Function data:

1.Upper part of the seat can be moved back and forth of120mm,height adjustment 60mm, seat inclination angle range of ±12°;

2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;

3. The seat of pneumatic lifting regulating range 0-150mm;

4.The seat can rotate 360°and locked ,4-point positioning control;

5.Seat rail slide in 0-6000mm mobile,500mm rail width and depth 28mm

 6. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;

7.Seat can bear more than 150FT.LB torsion, reached AD grade standard;

  Packed by carton or plywood case.

1. Customized Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 12 hours.
4. After shipping, we will track the products for you every single day until you get the products. When you get the goods,test them, and give me a feedback.Please feel free to contact us if you have any questions, we will offer the solutions for you.

5.24 hours online services.

DOWIN is driven by innovation and aimed for building long lasting relationships with our customers.We are dedicated in the pursuit of good quality of our products in this marketing with high-efficiency and profession. In a word, your concern is our top priority.

Professional technicians, fantastic products, competitive prices and good after-sales services enabled us to earn high reputation among our customers all over the world. We work hard to make sure everything goes as required and with high standard quality. There should be no hesitation in contacting DOWIN for your needs in steel products, marine equipment, automobile and motorcycle parts, for either standard products or new designs.

Just contact DOWIN.We will be your reliable partner.

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T(T/T 30% as deposit, and 70% before delivery),Western Union,Paypal. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU,DDP.

Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
