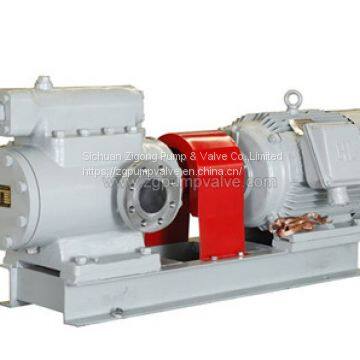

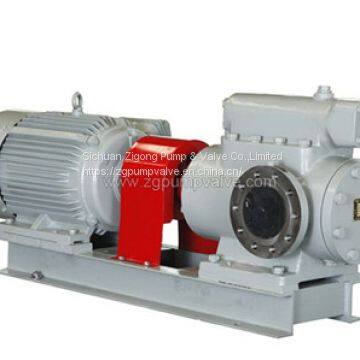

Stainless Steel Three Screw Pump
- 13000 Set / Sets per Month
- T/T L/C
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Brand Name: | ZGPV |
Product Description
Three screw pump
The 3GR type three-screw pump is a rotor type positive displacement pump. The principle is that the primary and secondary moving screws cooperate with the meshing and then use the inner and outer parts of the bushing with three holes to cooperate, so that the oil pump inlet and outlet have a number of sealed chambers. This chamber will allow the oil pump to continuously enter the inside of the oil pump during operation, will enter the screw oil pump, then use the axial movement to move the liquid to the outlet and also allow the input to gradually increase to form a It is continuous, stable and also capable of axially moving the pressurized liquid.
Parameters
Flow rate: Q=2~320m3/h
Pressure: H=0.1~4.0 Mpa
Speed: n=400rpm/630rpm/720rpm/960rpm
Viscosity: 3.0~760mm²/s;
Temperature: T=-20~120℃
ZGPV screw pump Features
3GR screw pump has a simple structure: it has various structural forms, generally a small flow rate of 0.2~6.5m3/h. The pump body and bushing of the 3GR screw pump are integrated (collectively referred to as the pump body), and the shaft seal is a mechanical seal. The pump bushing above the medium flow is a separate part fixed in the pump body. The large flow pump is mostly made into a double suction structure horizontal installation. The shaft seal has two kinds of mechanical seal and packing seal depending on the transport medium. ZGPV screw pump is installed in both horizontal and vertical versions. The prime mover is AC and DC marine motors.
3GR screw pump has a long service life: the active screw of the 3GR screw pump is driven by the motor, there is no mechanical contact between the main and the slave rods, and the pressure liquid is driven to rotate from the rod around the shaft line, between the main and the slave rods. There is a layer of oil film protection between the screw and the bushing, so the mechanical friction of the pump is extremely small and the service life is long.
The liquid pumped by the 3GR screw pump moves linearly in the pump at a constant speed, so the pressure pulsation is small, the flow rate is stable, and the noise is low. Since the inertia of the rotating component is small, the starting torque and vibration are small.
3GR screw pump has high suction capacity.
Structure
MOC
No. | Description | Material | |||||
Anti-corrosion alloy | Cast steel | Stainless steel | |||||
China standard | ASTM standard | China standard | ASTM standard | China standard | ASTM standard | ||
1 | Pump casing | 20# Alloy Titanium Nickel 904L Ti/Pd Alloy Monel
| Hastelloy Monel Ⅱ-B Ⅱ-C Ni-Resist1 Ni-Resist2 Ni-Resist3
| 25# 35# | WCA WCB | ZG1Cr13 ZG2Cr13 ZG00Cr18Ni10 ZG0Cr18Ni9 ZG0Cr18Ni12Mo2Ti ZG0Cr17Ni4CuNb ZG1Cr18Ni9 ZG1Cr18Ni9Ti ZG00Cr17Ni14Mo2 0Cr26Ni5Mo2 0Cr17Mn13Mo2N 00Cr18Ni5Mo3Si2 | CA-15 CA-15M CF-3(304L) CF-8(304) CF-8M(316) CF-3M(316L) CN-7M(320) CD-4MCu |
2 | Stator | ||||||
3 | Rotor | ||||||
4 | Suction chambe | ||||||
5 | Intermediate shaft | Carbon steel SS420 2205 SS304 SS316 | |||||
6 | Bearing housing | Cast iron |
ZGPV screw pump Application
Three-screw pump is suitable for lubricating oil and lubricating liquid for fuel oil, lubricating oil, hydraulic oil, crude oil, and other similar oils.
To handle industrial and domestic wasterwater, and muddy water containing solid particles and short fibre;To handle mediums such as oil remains in oil tankers,oil water,oil residue and etc.;
To handle thick paste ,emulsified paste,unguent cosmetics and etc.;
To handle adhesive starch ,cooking oil ,honey, pulpy sugar, mashed fruit,cream and other leftovers;
To handle paste in the industries of brewage,construction ,mining ,printing ,papermaking and etc
screw pump manufacturer: Sichuan Zigong Pump & Valve Co., Ltd.
