Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CNC Lathe Machine CK500/1000 Automatic Metal Turning Horizontal Lathe

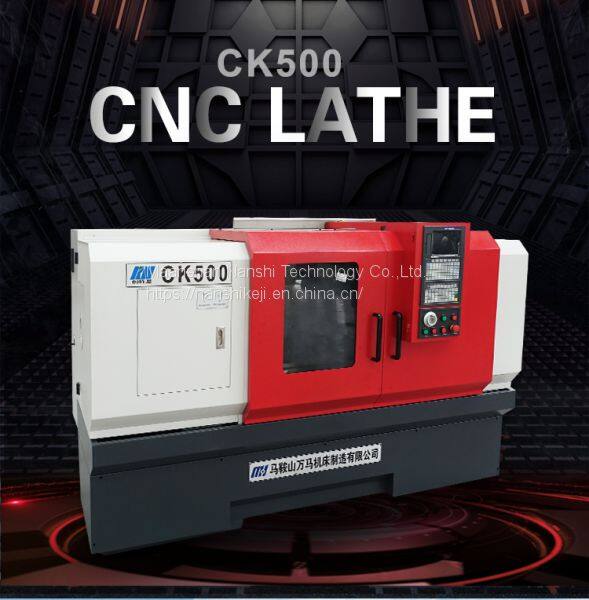

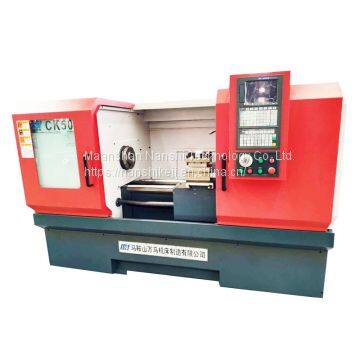

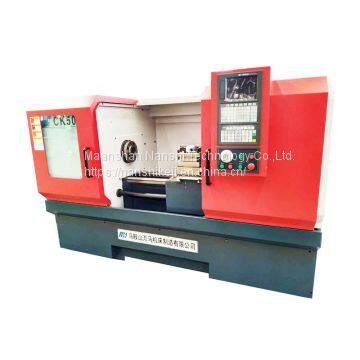

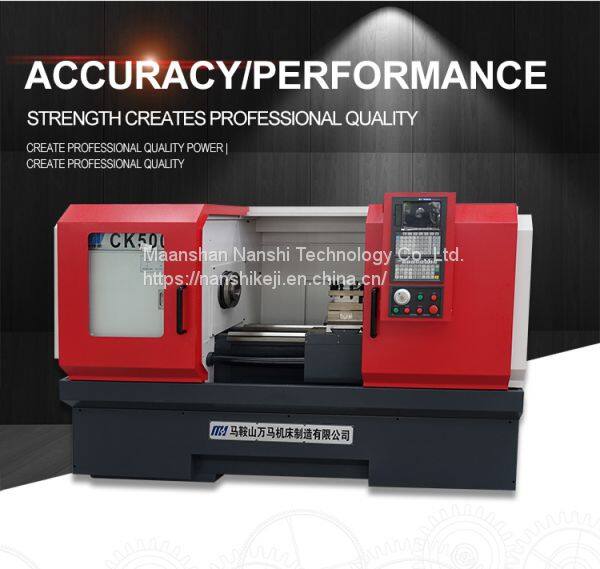

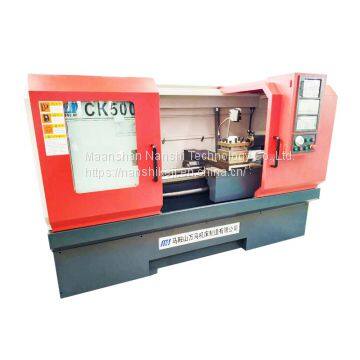

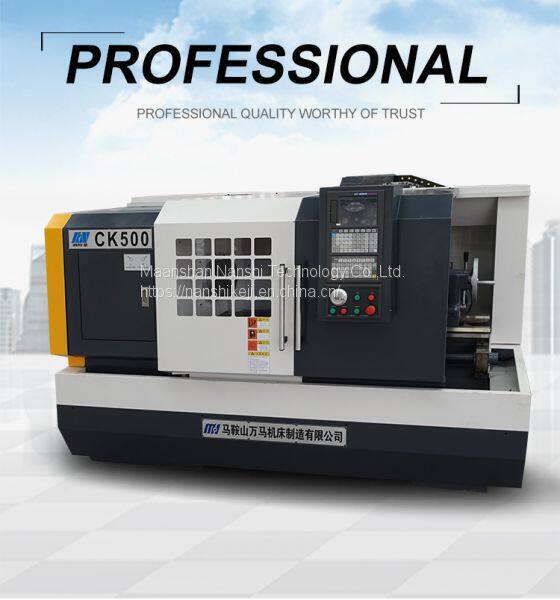

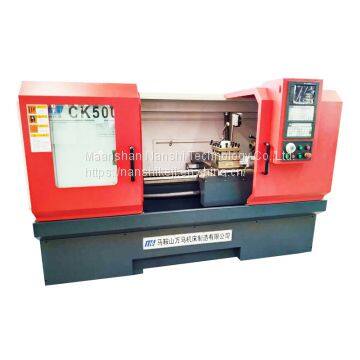

CNC Lathe Machine CK500/1000 Automatic Metal Turning Horizontal Lathe
US$ 10170 - 10420
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
RUNTEEN
Place of Origin:
China
Model Number:
CK500/1000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days
Related Products
-
CNC Horizontal Lathe CK500/1500 GSK System High Precision Machining MetalUS$ 11450 - 11700MOQ: 1 Set -
CNC Flat Bed Lathe CK500/2000 Heavy Cutting With Low Noise Chuck LatheUS$ 12600 - 12850MOQ: 1 Set
-
CK630/1000 CNC Lathe Machine Heavy Duty Metal Turning Flat Bed LatheUS$ 17100 - 17300MOQ: 1 Set
-
Cnc Machine Parts Name & Image High Precision Hydraulic Metal Brake PartsNegotiableMOQ: 1 Piece
-
TCK46A Cnc Lathe Machine PriceNegotiableMOQ: 1
Brand Name
RUNTEEN
Place of Origin
China
Model Number
CK500/1000
Type
Horizontal
Certification
ISO9001
After-sales Service Provided
No overseas service provided
Weight
2100 kgs
Dimension(L*W*H)
2545*1555*1780 mm
Voltage
220V/380V/415V
Condition
New
Power(W)
7.5 kw
Automatic Grade
Automatic
CNC or Not
CNC
Max. Swing Diameter
500 mm
Product Description

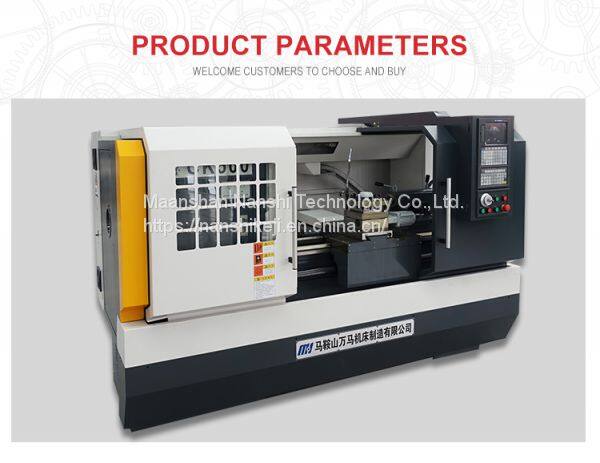

Technical Specifications
| Model | CK500 |
| Max. swing over bed | 500mm |
| Max. swing over slide | 280mm |
| Max. length of the work-piece | 1000mm 1500mm 2000mm |
| Range of the speed | 43-430r/min 170-1700r/min (2 gear stepless) |
| or 170-1700r/min (stepless) | |
| Spindle bore | Φ85mm |
| Taper of bore in spindle | 1:20 |
| Rapid traverse rate | X:3800mm/min Z:7600mm/min |
| Min. feed unit | X:0.0005mm Z:0.001mm |
| Feed motor | Servo motor |
| Main motor power | 7.5kw (frequency conversion) |
| CNC system | GSK980 (or according to customers' requirement) |
| Tool post | 4 station electric tool carrier |
| Net weight | 2.1t / 2.6t / 3.2t |
| Overall dimensions | L: 2545 / 3045 / 3545mm |
| W:1555mm | |
| H:1780mm |
