Home > Products > Brushless DC Products > 24v 78w Winding Machinedual Manufacture Model High Power Solar Roof Robot Arm Brushless dc Motor for Fork Lift
24v 78w Winding Machinedual Manufacture Model High Power Solar Roof Robot Arm Brushless dc Motor for Fork Lift
US$ 25 - 80
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
1.65kg Varia High Speed Dual Shaft High Precis Frameless Control Electric Bldc for Swing Machine Motor
-
63w Design Drive Pancake Speed Control Electric Long Shaft With Hall Effect Sensor Brushless dc Motor for Drill
-
94w Shaft bl Winding Machine Hollow Shaft High Speed Control Board Design Brushless dc Mower Motor for Electric Lawn Mower
-
250W 310V 3000rpm 80mm Power Micro Variable Speed dc Brushless Electr Motor Speed Control With Hall Sensor for Generate
-
Hybrid Solar Roof Ventil With Brushless 400w 310v 3000rpm Small Torque Mini dc Motor Manufacturer in China
-
Low Speed 600w 310v Electric Power Steering Bldc Motor With Hollow Shaft for Milling Machine Micro Generate and Robot Arm
Product Details

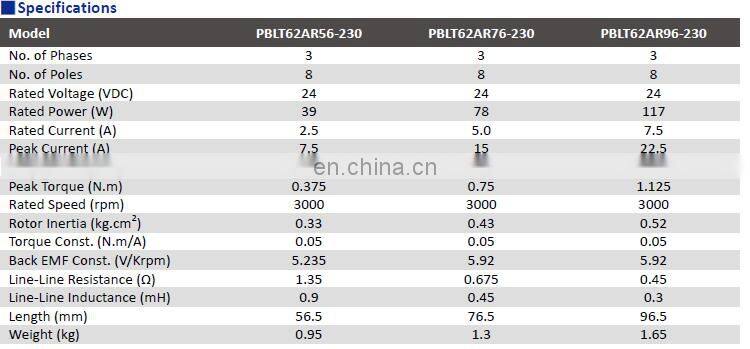

| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PBLT62AR | |||
| Certification | CCC, CE, ROHS, UL, VDE | Torque | 0.125~0.375N.m | |
| Construction | Permanent Magnet | Efficiency | IE 3 | |
| Continuous Current(A) | 2.5~7.5A | |||
| Speed(RPM) | 3000RPM | Commutation | Brushless |
Product Description

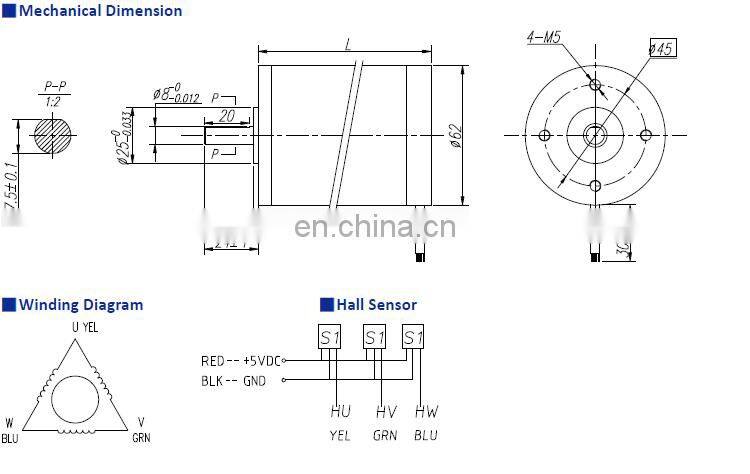

PrimoPal’s PBL series brushless DC motors offer high performance, long life and low maintenance for applications
requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm
(NEMA 42). These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity
loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution,
which are transmission type, high torque type and high efficiency type. In addition to our standard models,
custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle
gear reduction to meet your specific application needs.
requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm
(NEMA 42). These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity
loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution,
which are transmission type, high torque type and high efficiency type. In addition to our standard models,
custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle
gear reduction to meet your specific application needs.
