High Quality Cheap 57mm Linear Stepper Motor
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHBL57 Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description

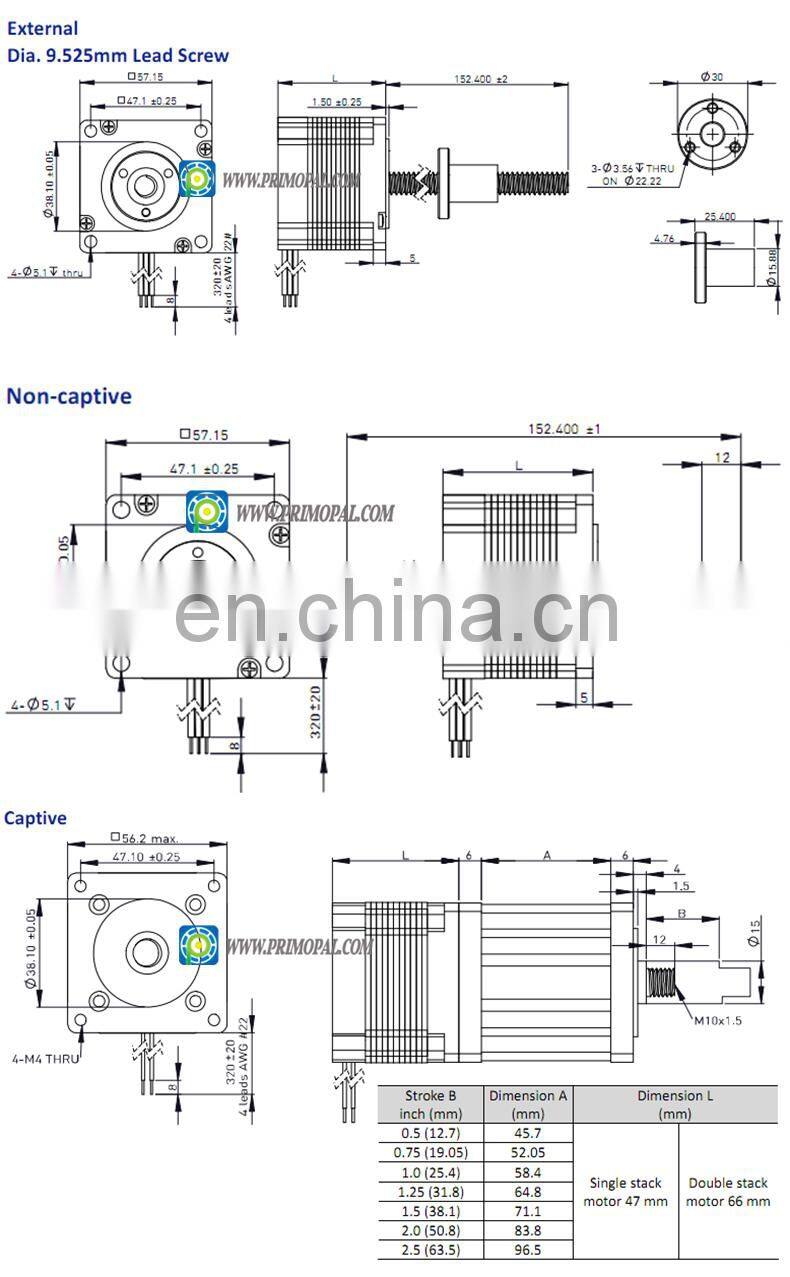

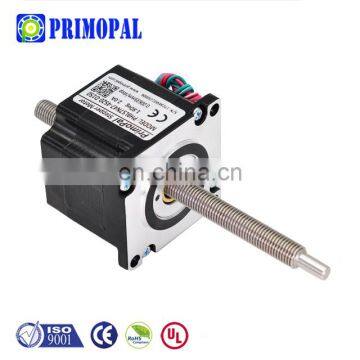

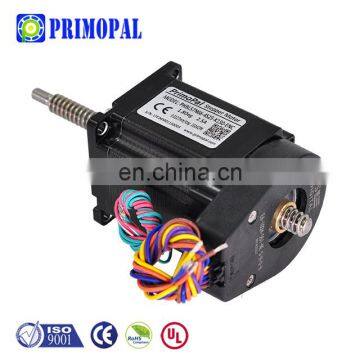

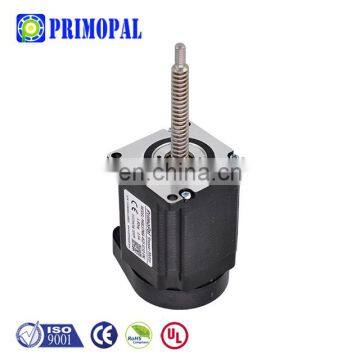

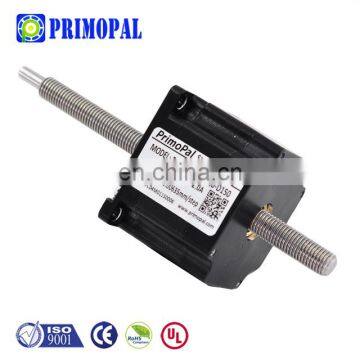

PHBL57 series hybrid linear stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 23 square stepper motor with 1.8°/0.9° step angle (200/400 steps per revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet, which are an excellent solution for positioning applications that require rapid acceleration and high-speed moves with low mass payloads. Three different movement types are available for various applications, which are external, non-captive and captive linear version. Besides, custom motor winding, lead screw and nut specs are available.
| Model | Voltage | Current | Resistance | Inductance | Lead Wire | Motor Length | |
| V/Ø | A/Ø | Ω/Ø | mH/Ø | Pin | inch | mm | |
| PHBL57(*)47-4S10 | 6.4 | 1.0 | 6.4 | 16.4 | 4 | 1.8504 | 47 |
| PHBL57(*)47-4S20 | 3.2 | 2.0 | 1.6 | 4.1 | 4 | 1.8504 | 47 |
| PHBL57(*)47-4S30 | 2.1 | 3.0 | 0.7 | 1.7 | 4 | 1.8504 | 47 |
| PHBL57(*)66-4S10 | 10.8 | 1.0 | 10.8 | 32.0 | 4 | 2.5984 | 66 |
| PHBL57(*)66-4S25 | 4.2 | 2.5 | 1.7 | 5.2 | 4 | 2.5984 | 66 |
| PHBL57(*)66-4S40 | 2.4 | 4.0 | 0.65 | 2.0 | 4 | 2.5984 | 66 |
2. We also could manufacture the custom stepper motors, according to the customer's requirements.
