High Quality 49mm External Linear Stepper Motor
US$ 15 - 30
/ Piece
1 Piece(Min. Order)
- shanghai ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHBL42 Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
PHBL42 series hybrid linear stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 17 square stepper motor with 1.8°/0.9° step angle (200/400 steps per revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet, which are an excellent solution for positioning applications that require rapid acceleration and high-speed moves with low mass payloads. Three different movement types are available for various applications, which are external, non-captive and captive linear version. Besides, custom motor winding, lead screw and nut specs are available.
| Model | Voltage | Current | Resistance | Inductance | Lead Wire | Motor Length | |
| V/Ø | A/Ø | Ω/Ø | mH/Ø | Pin | inch | mm | |
| PHL42_35-4S05 | 7.2 | 0.5 | 14.4 | 19.8 | 4 | 1.3780 | 35 |
| PHL42_35-4S10 | 3.6 | 1.0 | 3.6 | 5.0 | 4 | 1.3780 | 35 |
| PHL42_35-4S15 | 2.4 | 1.5 | 1.6 | 2.2 | 4 | 1.3780 | 35 |
| PHL42_49-4S05 | 11.0 | 0.5 | 22.0 | 46.0 | 4 | 1.9291 | 49 |
| PHL42_49-4S12 | 4.5 | 1.2 | 3.8 | 8.0 | 4 | 1.9291 | 49 |
| PHL42_49-4S25 | 2.2 | 2.5 | 0.87 | 1.8 | 4 | 1.9291 | 49 |

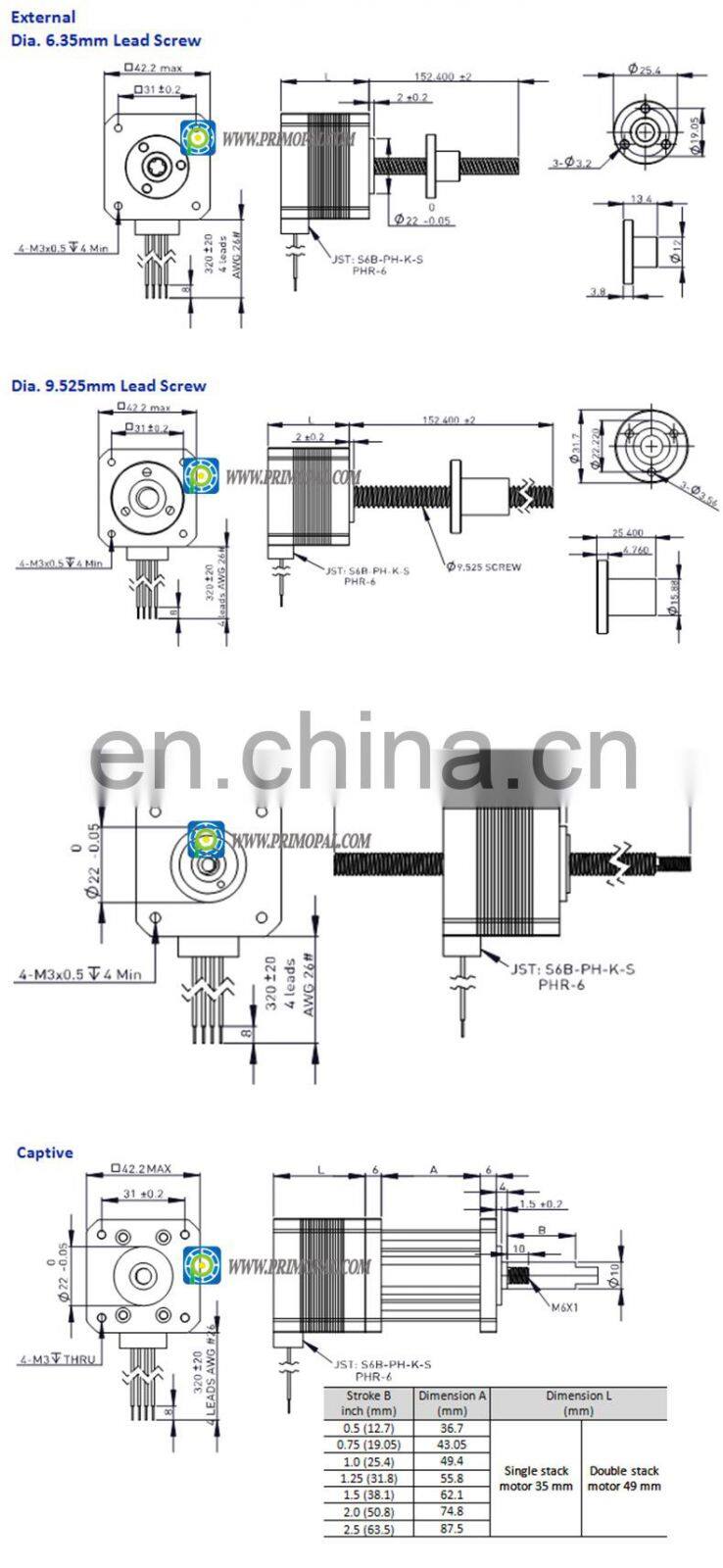

Note: 1. (*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with (*) when ordering.
2. We also could manufacture the custom stepper motors, according to the customer's requirements.
2. We also could manufacture the custom stepper motors, according to the customer's requirements.
