20mm high quality mini external linear stepper motor
- 200000 Piece / Pieces per Month
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
nema 8 external mini linear stepping motor
-
nema 8 small hot sale linear stepper motor for 3d printer
-
20mm external non-captive linear stepping motor
-
20mm external hybrid linear stepper motor for 3d printer
-
Non-captive NEMA 11 linear stepper motor for analysis equipment
-
Nema 11 ratio power Hybrid Stepper Motor
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHBL20 Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |

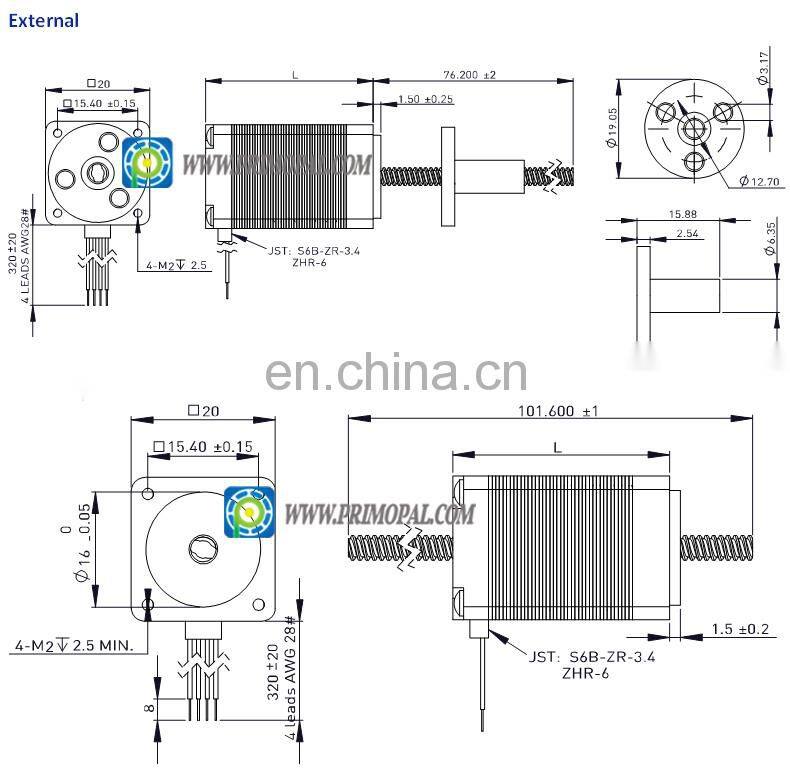

Product Description
PHBL20 series hybrid linear stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 8 square stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet, which are an excellent solution for positioning applications that require rapid acceleration and high-speed moves with low mass payloads. Three different movement types are available for various applications, which are external, non-captive and captive linear version. Besides, custom motor winding, lead screw and nut specs are available.
| Ambient Temperature | -20 °C ~ +50 °C |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Resistance | Class B (Class F also available |
Note: 1. (*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with the hyphen when ordering.
2. We also could manufacture the custom stepper motors, according to the customer's requiremen.
| Model | Voltage | Current | Resistance | Inductance | Lead Wire | Motor Length | Weight |
| V/Ø | A/Ø | Ω/Ø | mH/Ø | Pin | inch | mm | |
| PHBL20-30-4S05 | 2.5 | 0.5 | 5.0 | 1.2 | 4 | 1.1811 | 30 |
| PHBL20-40-4S05 | 4.4 | 0.5 | 8.8 | 2.7 | 4 | 1.5748 | 40 |
| Lead Code | Screw Dia. | Lead | Travel/Step | |||
| inch | mm | inch | mm | inch | mm | |
| AA | 0.138 | 3.5052 | 0.024 | 0.6096 | 0.000125 | 0.003175 |
| B | 0.138 | 3.5052 | 0.048 | 1.2192 | 0.00024 | 0.006096 |
| G | 0.138 | 3.5052 | 0.079 | 2.0 | 0.000395 | 0.01 |
| M | 0.138 | 3.5052 | 0.158 | 4.0 | 0.00079 | 0.02 |
| T | 0.138 | 3.5052 | 0.315 | 8.0 | 0.001575 | 0.04 |

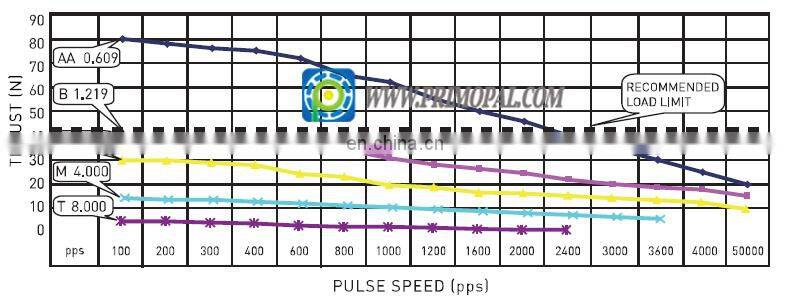

NOTE: The above curve is given for model PHBL35(*)35-4S05. Testing condition is 40VDC.
If needed, please contact us for the curves of the other models.
