Home > Products > Hybrid Stepper Products > Low Price Fast Stepper Linear Actuator
Low Price Fast Stepper Linear Actuator
US$ 25 - 50
/ Piece
2 Pieces(Min. Order)
- T/T Credit Card
You May Like
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PPML25 series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description

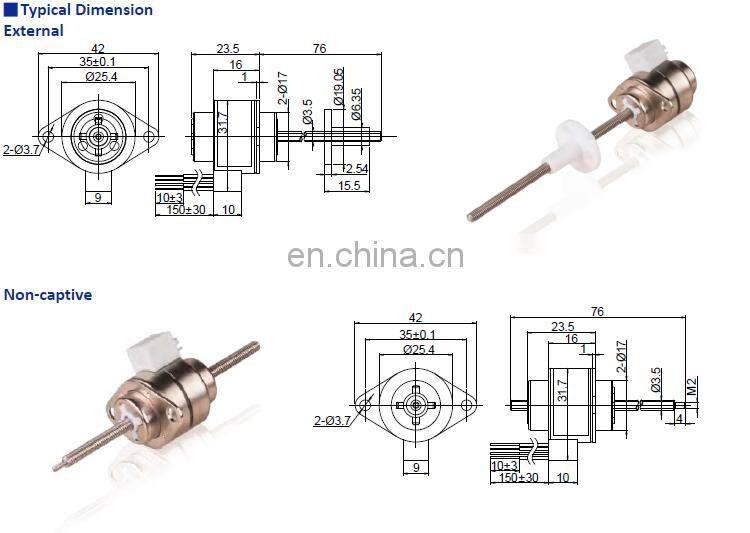

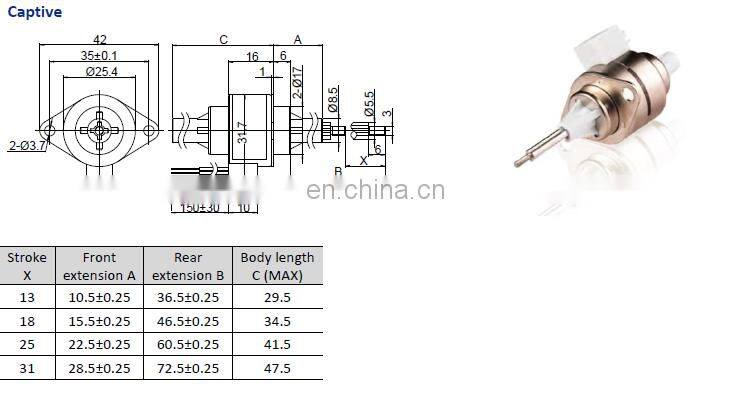

PrimoPal provides three sizes 20 mm, 25 mm and 36 mm PM stepper linear actuators. For each size, three types of
linear structures are available non captive, external and captive. Step travel varies from 0.00625 to 0.3333 mm/step
and the maximum linear force can reach 115 N.
Note: Support for customized services, the above prices are for reference only.
Specific prices are subject to customization.
| Ambient Temperature | -10 °C ~ +50 °C |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Resistance | Class B |
