95.4mm Micro 100 Planetary Micro Reducer Nema 17 Gear Stepper Motor With Gearbox for Electr Cnc
US$ 15 - 15
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
Nema 11 0.6A Current 10N.cm Holding Torque 50mm Length 100 Applicable Ratio Spur Gear for Hybrid Stepper Planetary Motor
-
Nema 14 0.46A Current 12N.cm Holding Torque 28mm Length 264 Applicable Ratio High Torque Gear Reducer Stepper Motor
-
95.4mm Reducer 1.2a Rack 51 Planetary Nema 16 Stepper Motor With Gearbox for Scanner Head Cutter Wire Cut Machine
-
Nema 14 0.8A Current 12N.cm Holding Torque 28mm Length 264 Applicable Ratio Stepper Motor With Gearbox and Encod
-
82.2mm Reducer Rack 71 Planetary Long Micro Cheap Nema 17 Stepper Gear Motor With Gearbox for Laser 1.3a Planetary 4,6 Wires
-
89.4mm 71 Planetary 28N.cm Planetary 1.7a Power Nema 17 Stepper Motor With Gearbox for Cut Machine Cnc Router 4 Wires Cycloid
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHG42S/PTP42E Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
PrimoPal's PHG series hybrid stepper gearmotor offers a wide range of gear ratios to fulfill your project needs. The planetary gearhead (transmission series) and spur gearbox have been strictly tested to ensure long life and maximum efficiency. They are low-cost solutions and can perfectly meet your needs of motion or automation control. Besides, high precision gearhead, custom motor winding and gearhead specs are also available.

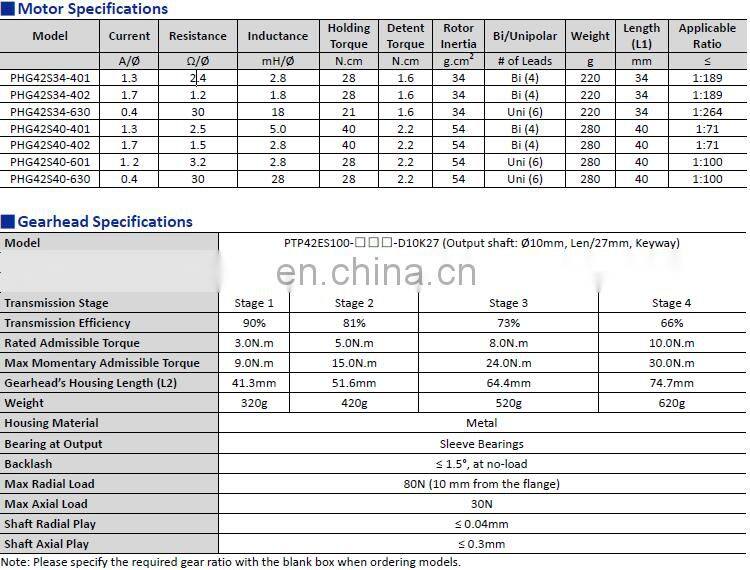

| Step Angle | 0.9° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -20 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500 VAC for one minute |
Shaft Radial Play | 0.02 Max. (450 g-load) |
Shaft Axial Play | 0.08 Max. (450 g-load) |
