1.8 Degree NEMA 17 (42mm*42mm) Dual Shaft Stepper Motor Price
US$ 4 - 6
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
1.8 Degree NEMA 17 (42mm*42mm) Competitive Price Rotary Stepper Motor
-
1.8 Degree NEMA 17 (42mm*42mm) Heavy Duty Arduino Stepper Motor
-
1.8 Degree NEMA 17 (42mm*42mm) High Precision Stepper Motor From Changzhou
-
1.8 Degree NEMA 17 (42mm*42mm) High Torque Cheap Stepper Motor
-
1.8 Degree NEMA 17 (42mm*42mm) High Precision Air Conditioner Stepper Motor, Ptz Motor
-
1.8 Degree NEMA 17 (42mm*42mm) High Precision Cctv System Stepper Motor, Ptz Motor
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB42S Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description

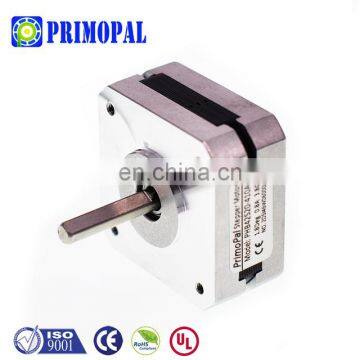

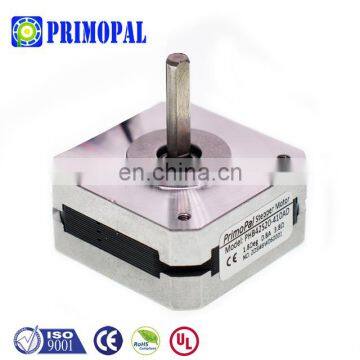

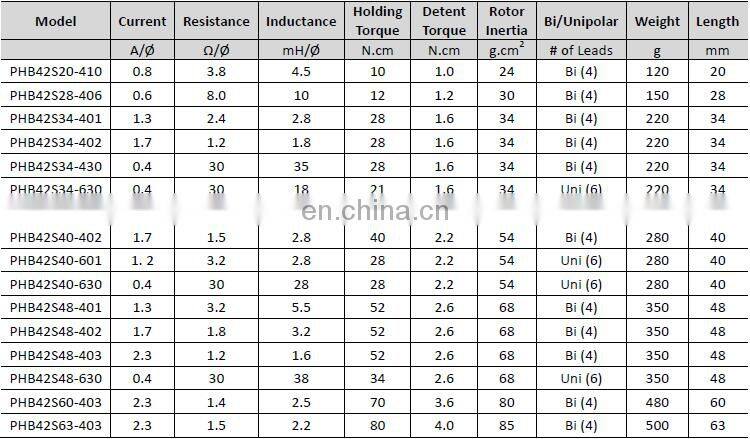

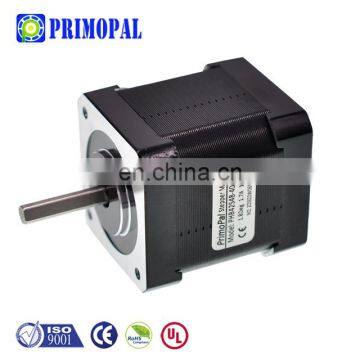

PHB42S series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor), which are very popular in the market. These NEMA 17 square stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 17 stepper motors ranges from 20mm to 63mm, and the holding torque could be as high as 80N.cm (113oz-in). These high-performance and high-reliability NEMA 17 stepper motors are terminated with four or six flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -20 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500 VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according the customer's requirements.
