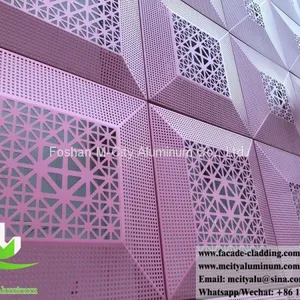

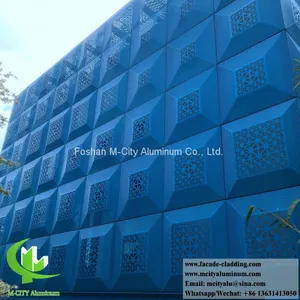

Laser cut metal screen aluminum cladding panels metal facades
- 80000 Square Meter / Square Meters per Month
- guangzhou
- T/T L/C Cash
- 20 days
Product Details
Brand Name: | M-City | Place of Origin: | China | Model Number: | MCT-0019889 |
Material: | Aluminum Alloy |
Product Description
Laser cut metal screen aluminum cladding panels metal facades
· All Aluminum Panel are prefabricated by CNC machine according to customer’s designs and drawings, ready for installation.
· Not only the common curved Aluminum panels but also hyperbolic curved Aluminum panels are available for fabrication, they’re produced by CNC machines.
· With customized designs and fabrications, the curved Aluminum panels match the design of building very well.
· With special design various customized shapes and structures, the curved Aluminum panels can help to realize the architect’s special ideas and concepts, giving unique styles and designs for the buildings.
· The Aluminum panels are fixed to the frame which is extended from the main structure of building but separate from the main structure to be an independent curtain wall system, they don’t give extra weight to the building; this system can also give good thermal insulation and sound insulation to the building.
· As the Aluminum panels are fixed in separate system, it is very easy to maintain the building and replace any damaged panel, and it is also very easy for innovation when the building looks old and needs to be refreshed.
· The Aluminum panels are very light and prefabricated, so you can quickly install them and finish the building easily.
· With PVDF coating, the Aluminum panels are very well weather-resistant, corrosion-resistant and discoloration-resistant. This helps the building to stay durable color and clean look.
· The Aluminum panels are fixed with anchor bolts in strong system; this gives the building with very good impact strength and anti-shock of earthquake.
· Aluminum panel is recyclable material; you can also have some value even though the building is re-built.
Materials: | Aluminum alloy 3003 series |
Standard size: | 1000mmx2000mm |
Other size: | Max. Width: 1500mm Max. Lenght: 5000mm |
Thickness: | 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm |
Surface treatment: | Powder coated, PVDF paint |
Color: | Any RAL colors, wooden grain color, stone color, etc. |
Coating: | Akzo Nobel, PPG, kge, tiger, etc. |
Application: | Cladding, Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers etc. |
Patterns | Any patterns can be made, just supply us the drawing or picture |
Description of solid aluminum panels/metal facades
The surface of the solid aluminum panel are generally treated with fluorocarbon coating.
Adopting the fluorocarbon spraying treatment, the fluorocarbon coating and varnishes are generally divided into two coats, three coats or four coats, the fluorocarbon coating has excellent corrosion resistance properties and weather resistance properties against acid rain and salt spray and various air pollutants.
Fluorocarbon coating and powder coating has excellent cold and heat resistance properties that can also resist strong ultraviolet radiation, and can maintain Color vibrancy and no Color fading for a long period of time.
Long service life features are as follows,
1 Aluminum cladding had good rigidity, light weight, high strength, good corrosion resistance, fluorocarbon paint will not fade for as Long as 25 years.
2 aluminum solid panels are not easily stained and easy to maintain.
3 The installation and construction of the aluminium solid panel is convenient and fast.
4 Solid aluminum panel can be recycled and reused, which is environmentally friendly.
The texture is unique, the color is rich and durable, and the appearance of its shape can be diversified, and it can be combined with glass curtain wall material and stone.
The material of the aluminium solid panels are perfectly combined. Its excellent perfect appearance and qualities make it favored by the building owners across the world.
Its light weight is only one-fifth compare to marble,
one-third compared to glass curtain wall, which greatly reduces the Structural and foundation loading of the building or structure, low maintenance cost and high performance ratio.
Advantage for the aluminum facade / Aluminum cladding
1. Fast and Easy to install:
Solid aluminum cladding installation method is simple and fast as it is not restricted by seasonal climate and geographical environment, suitable for all year installation.
The significantly shortened engineering cycle not only speeds up the project schedule, but also saves construction costs thus reduces overall cost.
The metal engraved panels achieve the decorative and thermal insulation effects while minimizing the external wall load and enhancing the availability of space and land.
1. Thermal Insulation reduces energy consumption:
Aluminum cladding has excellent thermal insulation properties,
and has excellent cold resistance and heat insulation performance compared to traditional exterior wall insulation used as decorative building materials.
Energy consumption through heating and cooling is greatly reduced, therefore saving energy costs and cost-effective.
Applications of solid aluminum panel
1, Aluminum panel is the most popular for cladding and decoration of curtain walls, façade systems, ceilings, partitions and roofs of buildings, especially the offices and hotels
2, Aluminum panel is also widely used for cladding and decoration of subways, tunnels, airport and railway buildings
3, With customized designs, Aluminum panel with perforations or engraved patterns is also very popular for decoration of buildings.
