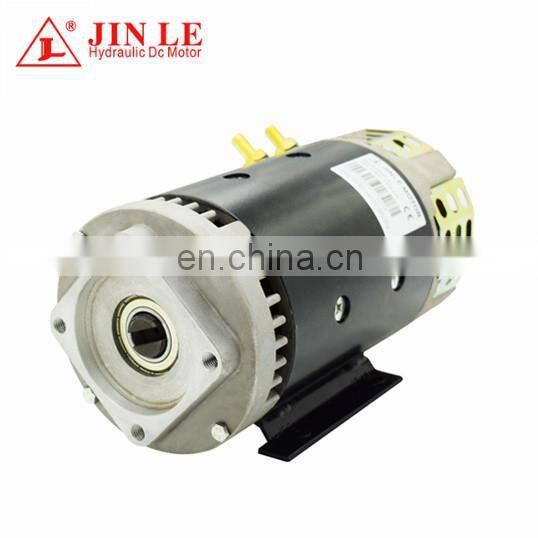

Hydraulic 12 Volt Dc Motor ZD1201

FOB Price

USD $40 - $50 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JINLE	Place of Origin	China
Model Number	ZD1201
Certification	CE	Torque	6N.m
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Series Wound
Efficiency	IE 4	Protect Feature	Drip-proof
Continuous Current(A)	Current	Speed(RPM)	2500RPM
Commutation	Brush

Product Description

Hydraulic 12 Volt Dc Motor ZD1201

Product Description

Features of Hydraulic 12 Volt Dc Motor ZD1201 :

100% copper wire

stable running, high efficiency, low noise

good service after sale

12V, 24V, 48V, 60V etc. on your request

Customized production is available!

Supply for OEM Production!

nearly 20 years' manufacturing experience

Specification of Hydraulic 12 Volt Dc Motor ZD1201 :

Type	ZD1201
Voltage	12V
Power	1.6W
Speed	2500RPM
Rotation	CW
O.D.	114mm
Operating Mode	S3
Insulation Class	F
Protection Degree	IP54
Weight	7.5kg
Torque	6N.m

Curve for Hydraulic 12 Volt Dc Motor ZD1201 :

Parameter for Hydraulic 12 Volt Dc Motor ZD1201 :

Unload	Speed	6815 RPM
Unload	Current	66.3 A
Max_Torque	Torque	6.39 N.m
	Current	219.91 A
	Speed	2356 RPM
	Efficiency	59.22%
	Output Power	1575.2 W
Max_Efficiency	Efficient	77.63%
	Speed	5472 RPM
	Torque	1.22 N.m
	Current	75.36 A
	Output Power	699 W
Max_Pout	Efficiency	59.22%
	Speed	2356 RPM
	Torque	6.39 N.m
	Current	219.91 A
	Output Power	1575.02 W

Welcome to inquire about Hydraulic 12 Volt Dc Motor ZD1201 .

Hot Products:

12V 1.7KW DC Motor 24V 3.5KW DC Motor 24V 0.8KW DC Motor 48V 2.0KW DC Motor

FAQ

Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.

Q: Can we design our own package or print our own logo?

A: Yes! You could! Package will be acording to your requirements?

Q: Could we get the samples?

A: Yes! Definitly! The samples will be sent to you.
