24v dc Gear Motor Specifications

FOB Price

US$ 36 - 39 / Piece

1 Piece(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JINLE	Place of Origin	Jiangsu, China
Model Number	ZD2930
Certification	CE	Torque	6N.m
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Series Wound
Efficiency	IE 4	Protect Feature	Drip-proof
Continuous Current(A)	Current	Speed(RPM)	2600RPM
Commutation	Brush

Product Description

24v dc gear motor specifications

We attend several fairs in domestic and overseas.

1) Canton Fair in Spring and Autumn

2) PTC in Shanghai

3) Hannover in Germany

4) Win Eurasia in Turkey

Product Description

500Watt and 800Watt motors are only 80mm in diameter with a variety of start switch mounting points. 1800Watt and 2kW motors have an integrated thermal overload to ensure that the brush temperature inside the motors are limited.

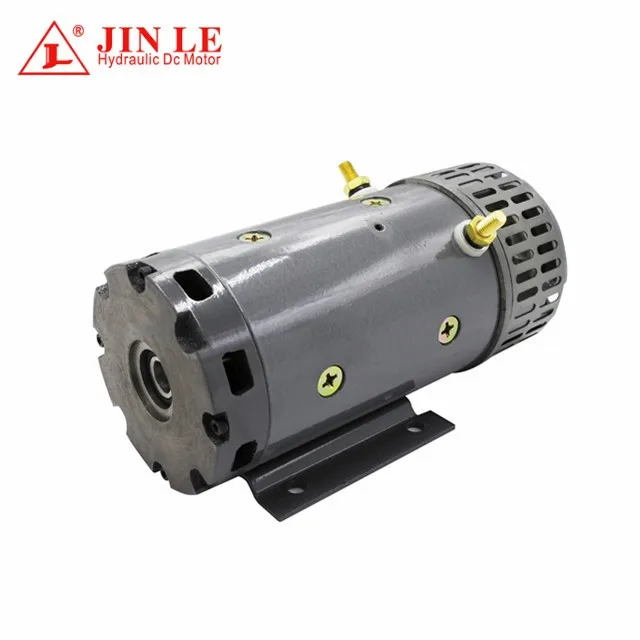

The 3kW 24VDC motor has a built in ventilation fan to give extended running times. This motor is extremely strong and can give the highest pressure and flows with S2 ratings up to 10 minutes.

Our Wound Field DC Motors are available in 3", 4.5″, 5", 5.6" diameters. They have outputs ranging from 1/3 to 5 HP and produce speeds from 2,000 to 3,600 RPM's at 12 to 72 volts.

SPECIFICATION FOR High Torque 3KW 24 Volt DC Motor Electric For Excavator

Type

Voltage

Power

Speed

Rotation

O.D.

Current

ZD2930

24V

2.0KW

2600RPM

114mm

160A

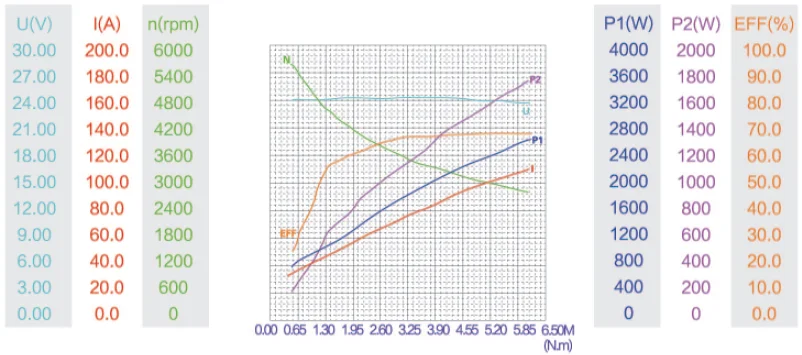

Unload	Speed	5570RPM
Unload		Current	28.410A
Max_Torque	Torque	6.060N.m
		Current	109.360A
		Speed	2573RPM
		Efficiency	67.12%
		Output Power	1747.20W
Max_Efficiency	Efficiency	67.25%
		Speed	2914RPM
		Torque	5.160N.m
		Current	98.260A
		Output Power	1575.70 W
Max.Pout	Efficiency	67.12 %
		Speed	2753RPM
		Torque	6.060N.m
		109.360Current	22.620A
		Output Power	1747.20W

Packing & Delivery

Packaging
Size	100(L) * 83(W) * 83(D)
Weight	16kg/pc
Packaging Details	The normal package is carton box. It also could be according to customers special request.

Payment & Shipment

Full payment for samples orders.
For mass orders, 30% T/T deposit, 70% T/T balance before delivery.
