Home > Products > Hydraulic dc motors > 1.5KW 12V DC High Torque Electric Motor
1.5KW 12V DC High Torque Electric Motor
- 10000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Brand Name: | Wuxi Jinle | Place of Origin: | Jiangsu, China | Model Number: | W8901P |
Certification: | CE | Torque: | 6N.m | ||
Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Series Wound | Efficiency: | IE 4 |
Continuous Current(A): | Current | Speed(RPM): | 2220rpm | ||
Commutation: | Brush |
Product Description
1.5KW 12V DC High Torque Electric Motor
Our Jinle hydraulic DC Motors are widely used in forklift lifting, van tail board, wing plate and hydraulic power unit equipment etc. Consists of stator, 100% copper wire armature, commutor and carbon brush etc.
Specifications of 1.5KW 12V DC High Torque Electric Motor
Model: W8901P
Material: 100% copper wire armature
Voltage: 12V
Power: 1500W
Speed: 2220rpm
Rotation: Bi-directional
O.D: 114mm

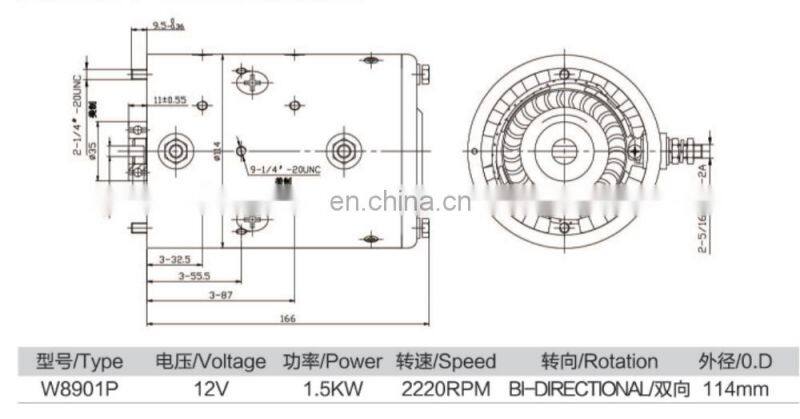

Outline Dimension of 1.5KW 12V DC High Torque Electric Motor

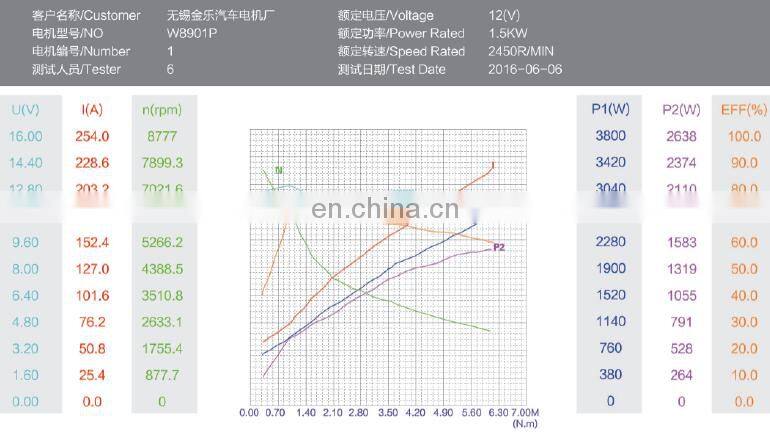

Motor Load Characteristic Curve of 1.5KW 12V DC High Torque Electric Motor
Parameter of 1.5KW 12V DC High Torque Electric Motor
Unload: | ||
Speed(n) | = | 7314rpm |
Current(l) | = | 57.920A |
Max_Torque: | ||
Torque(M) | = | 6.020N.m |
Current(I) | = | 211.930A |
Speed(n) | = | 2325rpm |
Eff | = | 57.86% |
Output Power(P2) | = | 1465.60W |
Max_Efficiency: | ||
Eff | = | 67.04% |
Speed(n) | = | 5947rpm |
Torque(M) | = | 1.010N.m |
Current(I) | = | 74.140A |
Output Power(P2) | = | 628.90W |
Max_Pout: | ||
Eff | = | 57.86% |
Speed(n) | = | 2325rpm |
Torque(M) | = | 6.020N.m |
Current(I) | = | 211.930A |
Output Power(P2) | = | 1465.60W |
Advantage of 1.5KW 12V DC High Torque Electric Motor
1) Low noise, easy brush replacement, 100% copper wire, good quality fresh raw materials
2) Strictly control every production, inspection, packing link
3) Efficient and stable running time,one year warranty
4) OEM and customized service avaliable
5) Advanced automatic and semi-automatic equipments
6) Robust construction for long and reliable service life
7) 12V, 24V, 36V, 48V,60V,72V as per customers' option
8) High class professional R&D team and skilled workers
9) Factory established in 1996 over 20 years' manufacturing experience
10)Highly qualified service, able to solve any problems
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v and power pack unit
1. Business Type
a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters
c. Employees: over 80 in office & workshops
2. Certificates
CE, ISO9001:2000 etc.
3. How long could we get the goods?
a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders
4. Quality Control
We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
a. 100% inspection before packing
b. Spot inspection before shipment
