114mm 100% Copper Wire 48V Forklift Motor
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | China | |
| Model Number | ZD4201 | Type | Micro Motor | |
| Certification | CE | Torque | 6N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Speed(RPM) | 2700RPM | Commutation | Brush |
Product Description

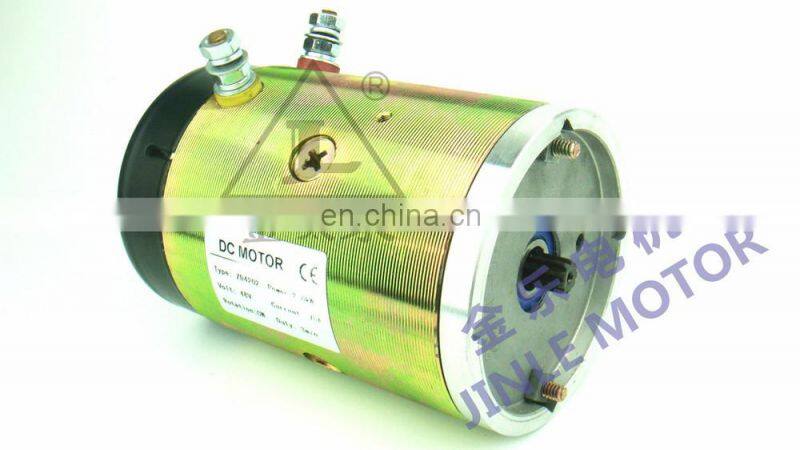

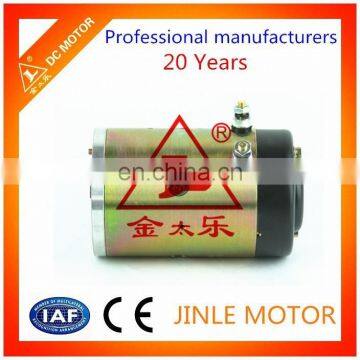

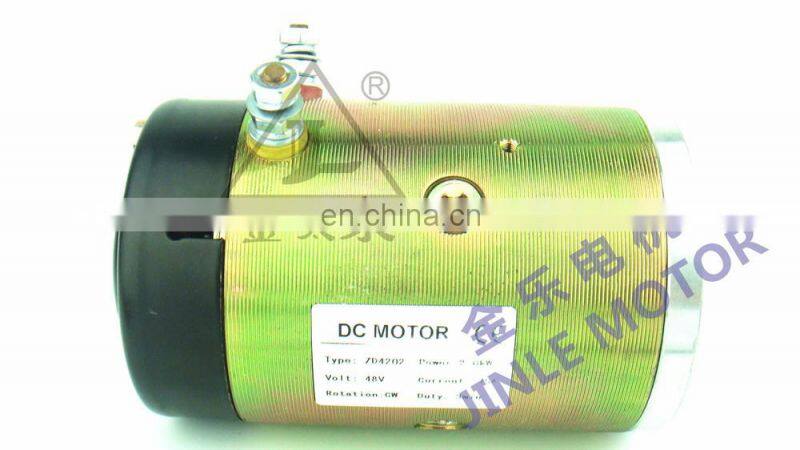

114mm 100% Copper Wire 48V Forklift Motor
Model: ZD4201
Parameters:
| Model | Voltage(V) | Power(KW) | Speed(RPM) | Rotation | O.D(MM) | Duty |
| QZD2402 | 24 | 2.2 | 1750 | Bi-directional | 164 | S1 |
| QZD2409 | 24 | 0.9 | 2150 | Bi-directional | 126 | S1 |
| QZD2411 | 24 | 1.1 | 2160 | Bi-directional | 127 | S1 |
| QZD2412 | 24 | 2.2 | 1750 | Bi-directional | 164 | S1 |
| QZD2422 | 24 | 2.2 | 1750 | Bi-directional | 164 | S1 |
| QZD2445 | 24 | 4.5 | 1750 | Bi-directional | 180 | S1 |
| QZD4840 | 48 | 4.8 | 1750 | Bi-directional | 218 | S1 |
| QZD4841 | 48 | 4 | 2030 | Bi-directional | 170 | S1 |
| ZD2973A | 24 | 3 | 3100 | CW | 127 | S2 |
| ZD2973 | 24 | 3 | 3100 | CW | 127 | S2 |
| XQD-3C | 24 | 4 | 3100 | CW | 142 | S2 |
| W5692 | 12 | 1.6 | 2500 | CW | 114 | S3 |
| W6599 | 12 | 1.7 | 2720 | CW | 114 | S3 |
| W8799 | 12 | 1.5 | 2400 | CCW | 114 | S3 |
| W8923 | 12 | 1.4 | 2250 | Bi-directional | 114 | S3 |
| W8930B | 12 | 1.5 | 2380 | Bi-directional | 114 | S3 |
| W8935 | 12 | 1.5 | 2460 | CCW | 114 | S3 |
| W8941 | 12 | 1.5 | 2400 | Bi-directional | 114 | S3 |
| W8950 | 24 | 2 | 2600 | CCW | 114 | S3 |
| W8999 | 12 | 1.6 | 2500 | CCW | 114 | S3 |
| W9144 | 12 | 1.5 | 2150 | Bi-directional | 114 | S3 |
| W9405 | 24 | 1.5 | 2400 | CCW | 114 | S3 |
| W9789 | 12 | 1.6 | 2500 | CW | 114 | S3 |
| ZD193A | 12 | 1.6 | 2500 | CCW | 114 | S3 |
| ZD4201 | 48 | 2 | 2700 | CW | 114 | S3 |
| ZD223A | 24 | 2.2 | 2700 | CCW | 114 | S3 |
| ZD1223 | 12 | 2 | 2800 | CW | 114 | S3 |
| ZD293A | 24 | 2.2 | 3000 | CCW | 114 | S3 |
| ZD293 | 24 | 2.2 | 3000 | CW | 114 | S3 |
| ZD2930 | 24 | 2.2 | 2700 | CW | 114 | S3 |
| ZD1221 | 12 | 2 | 2900 | CW | 114 | S3 |
| ZD2931 | 24 | 2 | 2600 | CW | 114 | S3 |
| W7923 | 12 | 1.2 | 1700 | Bi-directional | 114 | S3 |
| ZD223 | 24 | 2.2 | 2700 | CW | 114 | S3 |
| ZDY113 | 12 | 0.8 | 3500 | CW | 80 | S3 |
| ZD2373 | 24 | 3 | 2850 | CW | 125 | S3 |
Product advantages:
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% copper wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 20 years' manufacturing experience
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops

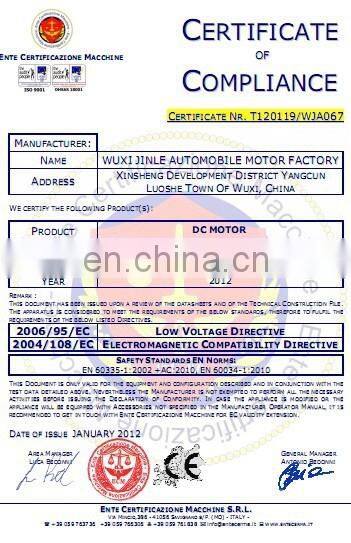

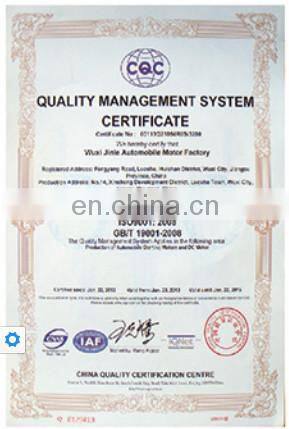

2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
