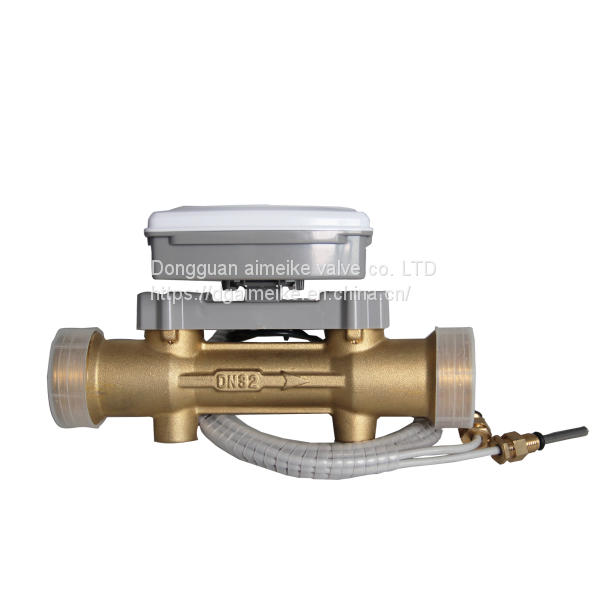

Max Working Pressur 1.6 Mpa Horizontal Ultrasonic Heat Meter Class B Residential Water Meter
- ShenZhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
You May Like
-
Residential Water Meter Max Working Pressur 1.6 Mpa Horizontal Ultrasonic Heat Meter Class B
-
DN50 Ultrasonic Heat Meter Instructions Manual Max Working Pressur 1.6 Mpa Horizontal Ultrasonic Heat Meter Class B
-
Ultrasonic Water Meter With Intelligent Measuring Instruments Digital Water Meter
-
With Intelligent Measuring Instruments Ultrasonic Water Meter Digital Water Meter
-
Dn125 Large-caliber Ultrasonic Water Meter With Intelligent Measuring Instruments Digital Water Meter
-
Digital Water Meter DN125 Large-caliber Ultrasonic Water Meter With Intelligent Measuring Instruments
Product Details
| Brand Name | Yomtey |
Product Description
The Ultrasonic Heat Meter is the meter that measures the flow volume and displays the heat energy released or absorbed by water flow when passing through the heat exchange system. It measures and captures the physical quantity - the flow volume of the heat carrier and the temperature of inlet and outlet by two kinds of sensors, and it captures the heat energy value by the compensation of the density and the heat enthalpy and the integral computation.
Parameters
Nominal diameter | 15 | 20 | 25 | 32 | 40 |
Max flow Qs(m3/h) | 3 | 5 | 7 | 12 | 20 |
Nominal flow Qp(m3/h) | 1.5 | 2.5 | 3.5 | 6 | 10 |
Transitional flow Qt(m3/h) | 0.15 | 0.25 | 0.35 | 0.6 | 1 |
Min flow Qi(m3/h) | 0.03 | 0.05 | 0.07 | 0.12 | 0.2 |
Max flow indication | 9999.999 m3 | ||||
Heat max indication | 99999999kW.h | ||||
Accuracy class | Class B | ||||
Pressure loss | ≤0.025 Mpa | ||||
Max working pressure | 1.6 Mpa | ||||
Temperature difference range | (3~75)K | ||||
Temperature range | (4~95)℃ | ||||
Resolution temperature | 0.01℃ | ||||
Environmental category | Class A | ||||
Battery life | ≥8years | ||||
Installation position | Horizontal or Vertical | ||||
Temperature sensor | Pt1000 | ||||
Display | LCD, 8 digits + additional characters | ||||
Interface | Optical/RS 485/M-bus | ||||
