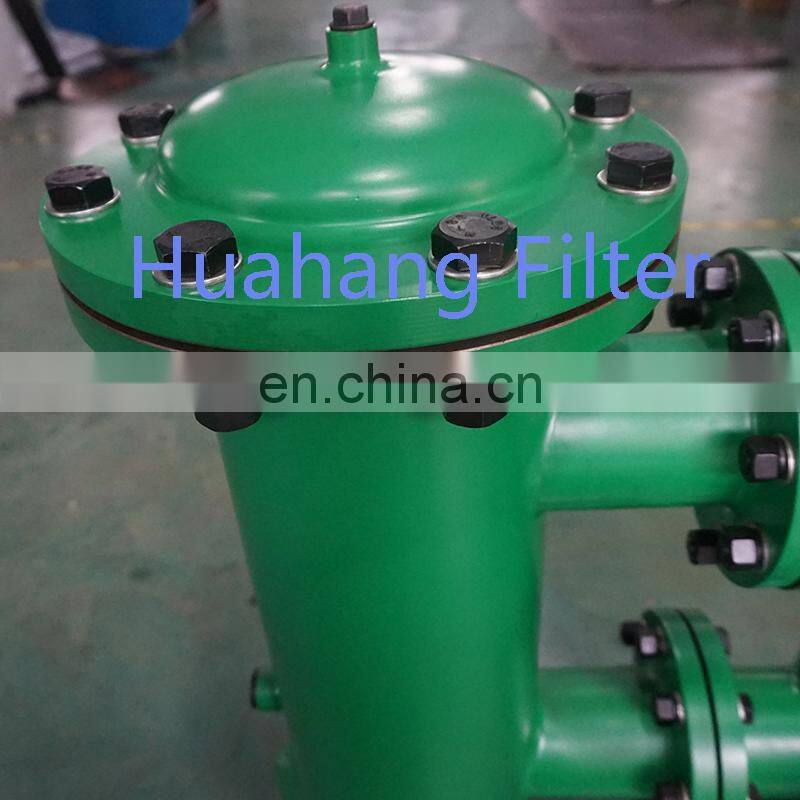

SDRLF-1300W/80 High Flow Double Cartridge Return Oil Filter Housing for High Pressure Hydraulic Oil System

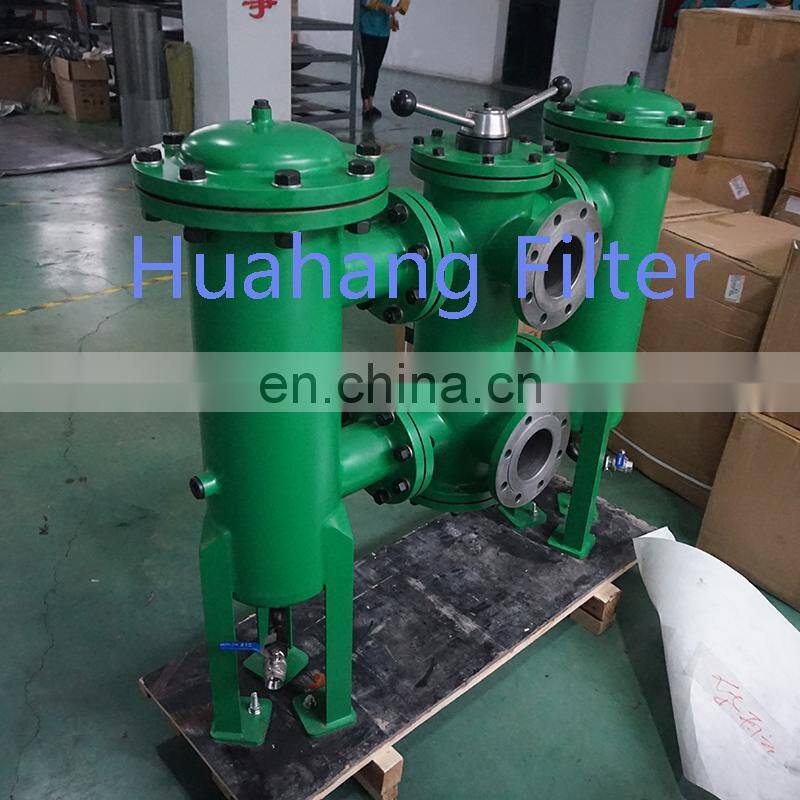

SDRLF double cylinder high flow oil return filter is composed of two single cylinder filter and two six-way reversing valve, simple structure, easy to use, and with bypass valve and filter element pollution blocking transmitter, in order to ensure the safety of the system.

Single drum filter filter plug to a certain extent in the working process of the need to clean or replace the host to stop work, this is not only a waste of time can't meet the needs of the host work continuously, binocular filter can effectively solve the single drum filter of the defects in the in the case of non-stop to clean or replace the filter element to guarantee the normal work of the host.

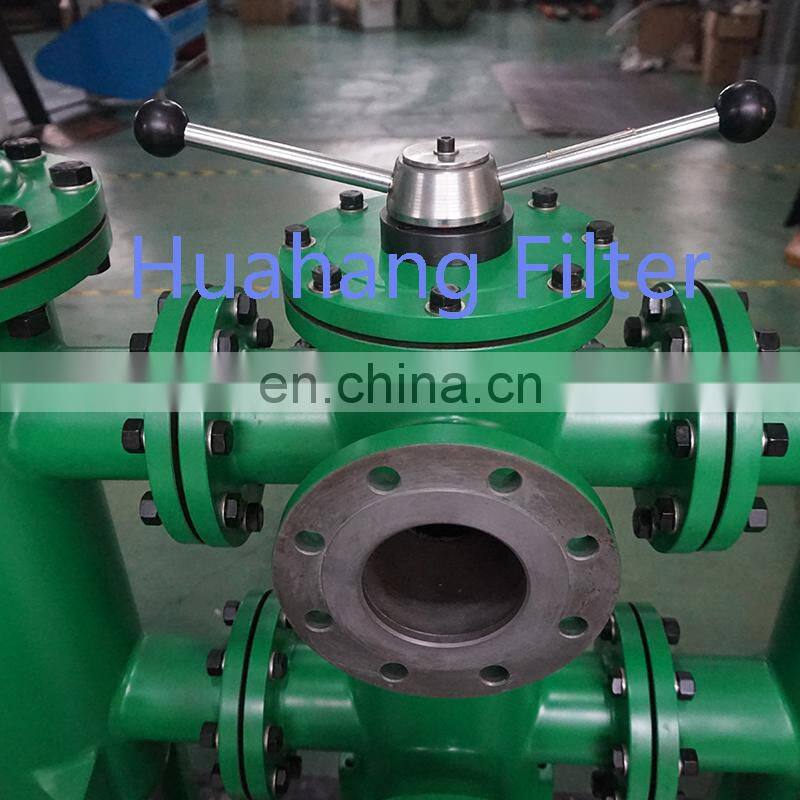

Its working characteristic is that when a filter element is blocked and needs to be replaced, there is no need to stop the main machine working, just open the pressure balance valve and turn the reversing valve, the other filter can participate in the work, and then replace the clogged filter element, need to replace the filter element side cartridge, allowing a small amount of internal leakage.

The filter is widely used in heavy machinery, mining machinery, metallurgical machinery and other hydraulic systems.

TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max): 1.6MPa       Operating temperature: -25°C~110°C

Indicating pressure drop: 0. 5MPa     By-pass valve unlocking pressure: 0.4MPa

Filter element No,:2 pcs
