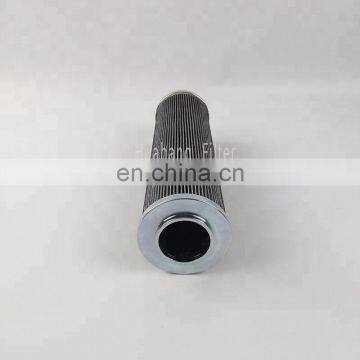

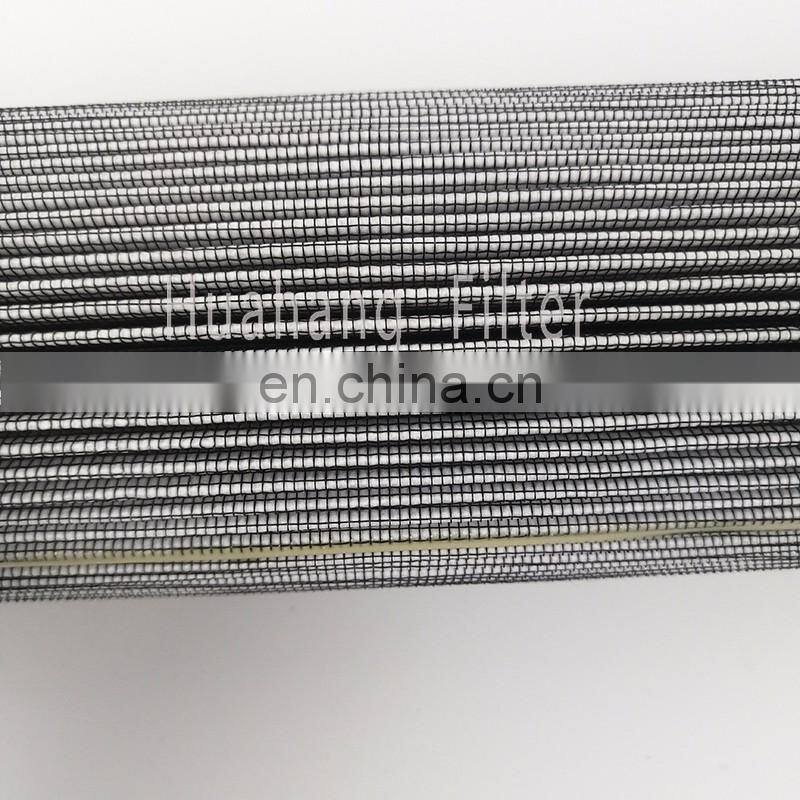

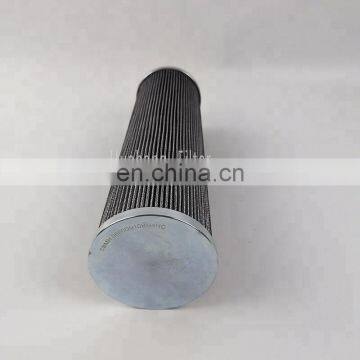

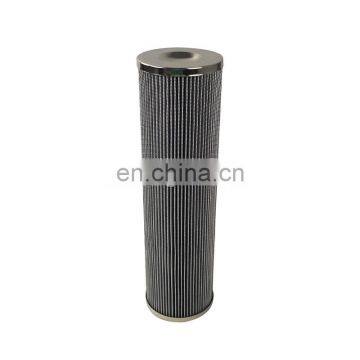

Replacement 10 micron 0660D010BN4HC Hydraulic Oil Filter Element Used for Electric Power Plant
Hydraulic filters are mainly installed on the suction oilway, oil pressure pipeline , return oilway, and bypass system.effectively used for removing particles and rubber impurities from the hydraulic system, providing a raised cleanness in hydraulic systems to ensure accurate operation of the systems and prolonged service life of the accessories, and to reduce hydraulic system’s downtime and hence improve the performance of the system , also helps in reducing component repair cost of the system. It plays important role in protecting a hydraulic system. Hydraulic filters are made by single layer or multi-layer metal mesh and filter material, layer number and wire mesh are different according to conditions of use and purpose.
Specifications
Pressure stability (permitted Δp across element) | 10 to 210 bar depending on the selection of filter material |
Temperature range | -30 °C to +100 °C for FPM seal material to -10 °C 0 °C to +100 °C (for water absorbing filter material) |
Filtration ratings | 3 μm to 200 μm (1 μm on request) |
Filtration performance | depending on filter material, nominal or absolute filtration up to βx(c) ≥ 1000 |
Seals | NBR |
Installation
l in return line filters
(element type R)
l in return line filters to DIN 24550
(element type RN)
l in inline filters
(element type D)
l in inline filters to DIN 24550
(element type DN)
l in inline filters MFX
(element type MX)
l in return line suction filters
(element type RK)
l in suction filters
(element type RS)
Filter materials
The following materials are available for filtering solid particles:
Filter material | Short description | Filtration rating in μm | Pressure stability |
BN4HC BH4HC BNK BHK | Betamicron®4 glass fibre, multi-layer with support (BNK and BHK: with synthetic support) | 3, 5, 10, 20* 3, 5, 10, 20* 3, 5, 10, 20* 3, 5, 10, 20* | 20 bar 210 bar 20 bar 210 bar
|
MM | Mobilemicron synthetic fibre, multi-layer with support | 10, 15 | 10 bar |
ECON2 | ECOmicron glass fibre, multi-layer with support | 3, 5, 10, 20
| 10 bar |
G/HC | Lubimicron synthetic fibre, multi-layer with support | 10 | 10 bar
|
W, W/HC | Stainless steel wire mesh | 25, 50, 100, 200,.... | 20 bar |
P, P/HC | Paper (cellulose fibre) | 10, 20 | 10 bar
|
V VB | Metal fibre | 3, 5, 10, 20 3, 5, 10, 20 | 210 bar 210 bar |
