Home > Products > turbocharger repair kits > K16 49.52/61.98mm 5324-123-2202 6+6 BLADES Performance Design Turbocharger Milling/aluminum 2618/Billet Compressor Whee

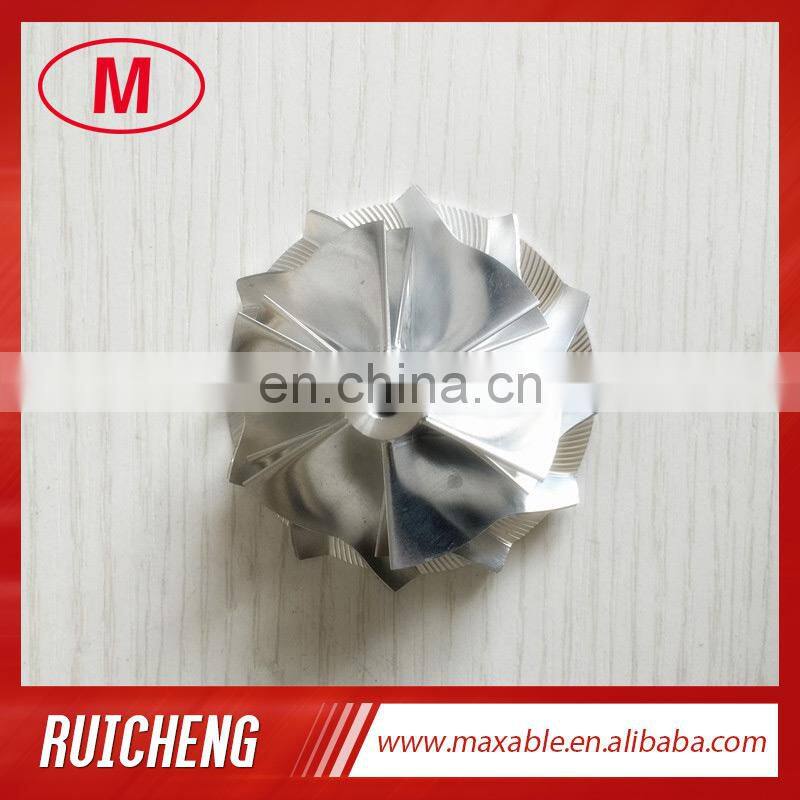

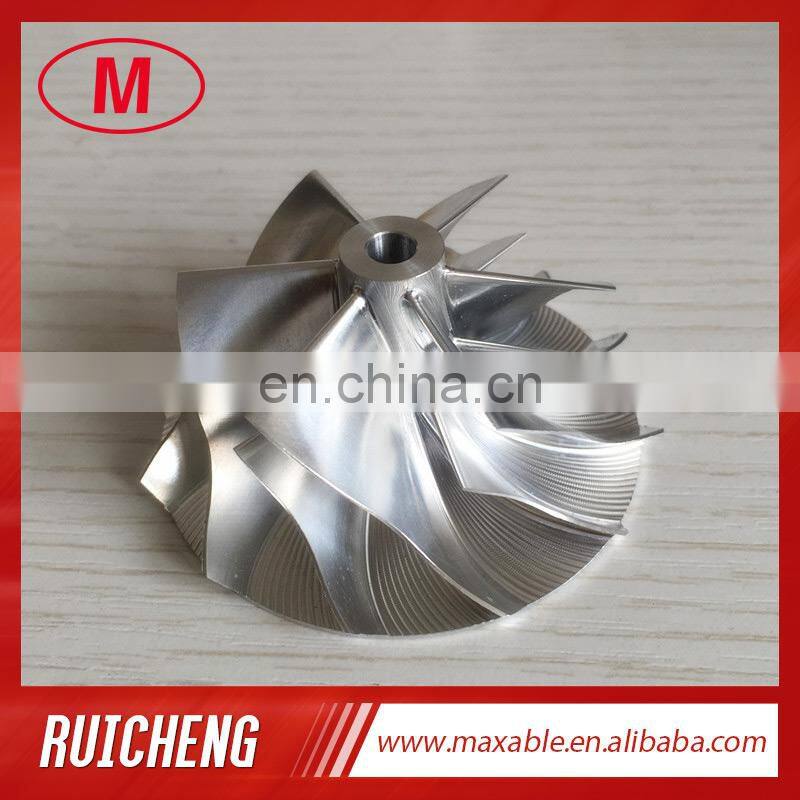

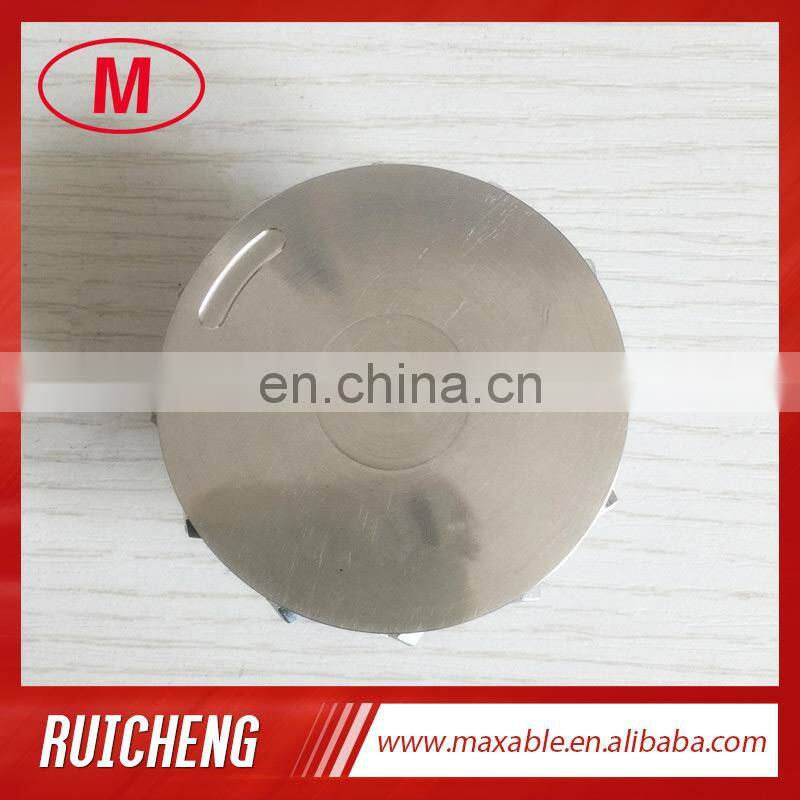

K16 49.52/61.98mm 5324-123-2202 6+6 BLADES Performance Design Turbocharger Milling/aluminum 2618/Billet Compressor Whee
US$ 53 - 53
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
GT3584R 10+0 Blades Point Milling 67.30/84.44mm High Performance Turbo Billet/milling/aluminum 2024 Compressor Wheel
-
ACTUATOR Valve G009 G09 G-009 G-09 781751 6NW009660 6NW-009-660 For Sprinter E ML Class 2.7L 3.0L
-
GT15-25 48.30/68.00mm 11+0 Blades Forward Turbo Billet/milling/aluminum 2024 Compressor Wheel
-
HX50 HX52 HX55 67/99mm Turbocharger Casting Compressor Wheel
-
T88 34D 6+6 Blade 69.67/95.00mm High Performance Turbo Milling/aluminum 2618 /billet Compressor Wheel for Greddy 49188-02700
-
CT26 Upgrade 50.39/68.01mm 6+6 Blades17291-54060 High Performance Turbo Billet/milling Compressor Wheel for Supra/Celica
Product Details
| Brand Name | NO | Place of Origin | China | |
| Model Number | K16 | |||
| Size | 49.52/61.98mm | Car Make | - | |
| Warranty | 12 Months |
Product Description
1. MODEL:K16 Forward
2. K16 49.52/61.98mm 5324-123-2202 6+6 BLADES performance design Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.59mm
Inducer:49.52mm
Exducer:61.98mm
Tapered tip exducer:66.36mm
Tip height:4.8mm
Superback:-0.02mm
Overall height:29.68mm
Bore:5.41mm
Trailing angle:55
Cutback:8.0
Sp height angle:-2.20
Splitter height:17.30mm
Blade height:27.43mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced .
we can also produce as your requirement.
| OE Model | replaces OE CW P/N | Suitable for Turbo/Chra or Upgrade for | Nose Diameter | Inducer | Base exducer | Tapered TIp Exducer | Tip Height | Superback | Bore Size |
| K16 | 5324-123-2039/2066/2100? | 5316-970-7023/7129 | 44.06 | 62.50 | 3.94 | 3.99 | 5.41 | ||
| K16 | 5324-123-2039/2066/2100? | 5316-970-7023/7129 | 44.17 | 63.50 | 65.21 | 3.63 | 3.99 | 5.41 | |
| K16 | K16-7135 | 5316-970-7023/7129 | 44.20 | 63.50 | 3.70 | 3.99 | 5.42 | ||
| K16 | 5316-123-2005 | 5316-970-6000/6001/6002/6003 | 10.69 | 33.03 | 54.90 | 57.85 | 3.55 | -0.02 | 5.41 |
| K16 | 5316-123-2007 | 5314-970-6707/6708/6709/5316-970-6715 | 10.69 | 36.83 | 54.90 | 58.27 | 3.93 | -0.02 | 5.41 |
| K16 | 5324-123-2006 | 5316-988-6735/6736/6726/6727 | 11.66 | 40.50 | 60.50 | 64.18 | 4.17 | -0.02 | 5.41 |
| K16 | 5324-123-2002 | 5324-970-6480 | 11.66 | 38.50 | 60.50 | 64.81 | 4.74 | -0.02 | 5.41 |
| K16 | K16-7135 | 5316-970-7023/7129 | 44.20 | 63.50 | 3.70 | 3.99 | 5.42 | ||
| K16 | K16-7135 | 5316-970-7023/7129 | 11.12 | 44.20 | 63.50 | 3.97 | 3.99 | 5.42 | |
| K16 | 5324-123-2201 | 5324-970-7401 / 5324-970-7400 | 11.68 | 45.78 | 61.98 | 65.57 | 4.63 | 2.67 | 5.41 |
| K16 | 1853-970-0003/7 | 11.58 | 45.81 | 62.00 | 66.02 | 4.48 | 3.81 | 5.41 | |
| K16 | K16-7135 | 5316-970-7023/7129 | 11.57 | 44.25 | 63.50 | 3.91 | 3.99 | 5.41 | |
| K16 | 5324-123-2206 | 1855-970-0000 | 11.68 | 49.62 | 61.98 | 65.90 | 4.95 | 2.67 | 5.41 |
| K16 | 5324-123-2206 | 1855-970-0000 | 11.72 | 49.62 | 61.98 | 66.40 | 4.82 | 2.67 | 5.41 |
| K16 | 5324-123-2202 | 49.52 | 61.98 | 66.36 | 4.80 | 0.00 | 5.41 | ||
| K16 | 5324-123-2203 | 11.68 | 47.56 | 61.98 | 66.29 | 4.73 | 2.67 | 5.41 | |
| K16 | Unknown | 12.10 | 52.50 | 68.00 | 73.20 | 5.50 | 0.00 | 5.41 | |
| K16 | 5324-123-2202 | Unknown | 11.59 | 49.52 | 61.98 | 66.36 | 4.80 | -0.02 | 5.41 |
