Home > Products > turbocharger repair kits > TD04HL 19T 46.02/58.00mm 5+5 Blades 49189-X Turbocharger Milling/aluminum 2618/billet Compressor Wheel for Volvo

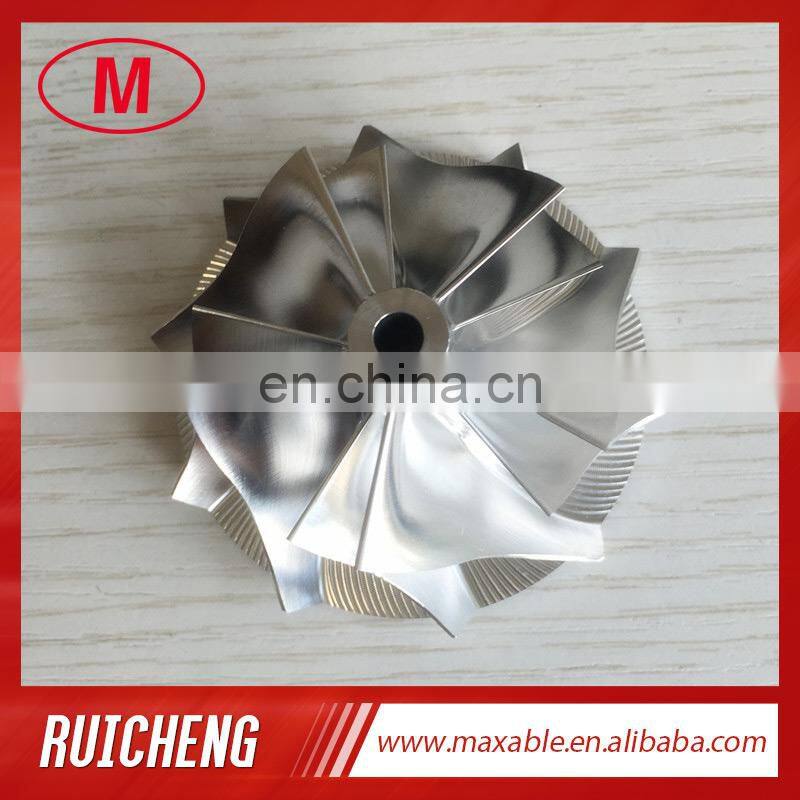

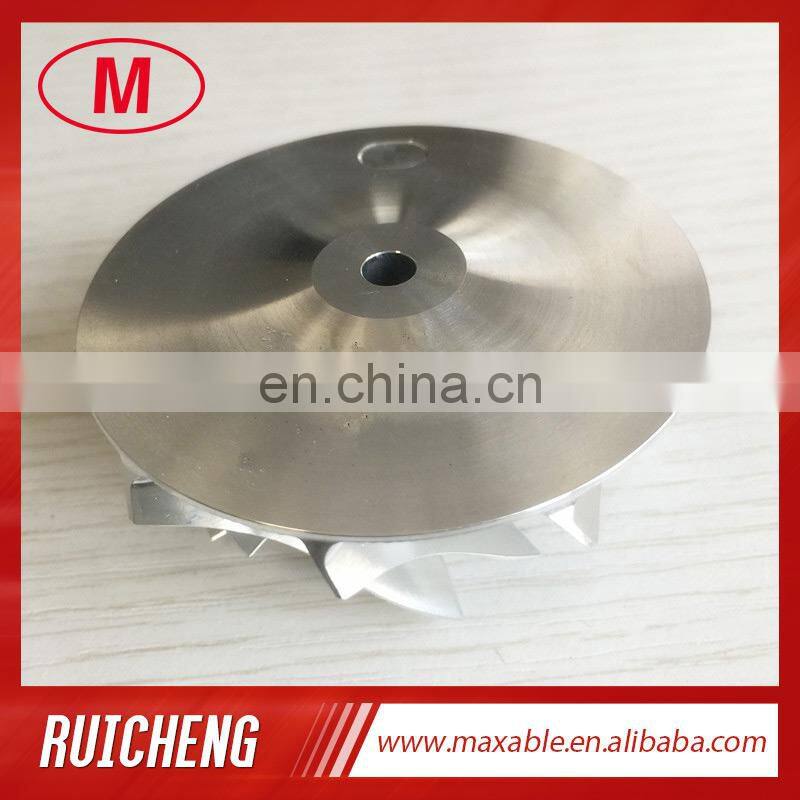

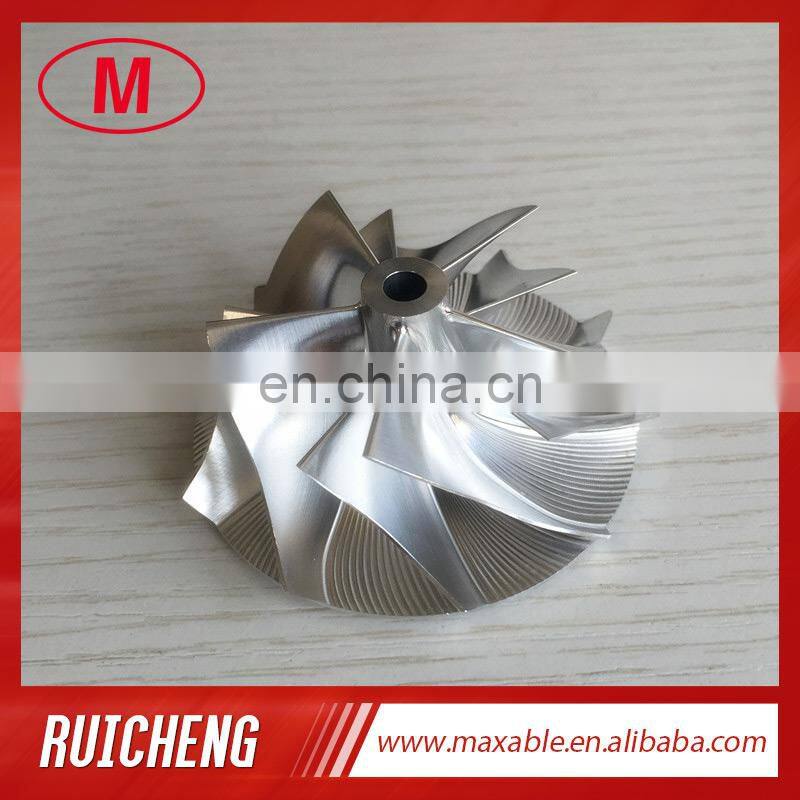

TD04HL 19T 46.02/58.00mm 5+5 Blades 49189-X Turbocharger Milling/aluminum 2618/billet Compressor Wheel for Volvo
US$ 53 - 53
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
HE551/HX55 4035398/3526177/4045209 71.75/109.00mm 8+8 Blades High Performance Turbo Milling/billet Compressor Wheel
-
RHF55 48.62/65.00mm 6+6 Blades High Performance Turbocharger Milling/aluminum 2618/billet Compressor Wheel for VIET
-
TD04HL 43.00/63.80mm 6+6 Blades Performance Design Turbocharger Milling/aluminum 2618 /Billet Compressor Wheel
-
K16 49.52/61.98mm 5324-123-2202 6+6 BLADES Performance Design Turbocharger Milling/aluminum 2618/Billet Compressor Whee
-
GT3584R 10+0 Blades Point Milling 67.30/84.44mm High Performance Turbo Billet/milling/aluminum 2024 Compressor Wheel
-
ACTUATOR Valve G009 G09 G-009 G-09 781751 6NW009660 6NW-009-660 For Sprinter E ML Class 2.7L 3.0L
Product Details
| Brand Name | NO | Model Number | TD04HL | |
| Size | 46.02/58.00mm | |||
| Car Make | VOLVO | Warranty | 12 Months |
Product Description
1. MODEL:TD04HL 19T forward
2.TD04HL 19T 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Inducer:46.02mm
exducer:58.00mm
Nose diameter:10.05mm
Tapered tip exducer:62.58mm
Tip height:4.97mm
Superback:1.90mm
Overall height:26.13mm
bore size :5.0mm
Traling angle:70
Cutback:0.0
SP Height angle:-4.50
Blade height:22.40mm
Splitter height:17.35mm
5+5 blades
Forward rotation
It is for OE compressor housing.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
| OE Model | replaces OE CW P/N | Group/MHI Short Spec | Applied to engine/vehicle | BCCW Blades | Inducer | Base exducer | Tapered TIp Exducer | Tip Height | Superback | Overall height | Bore Size | BCCW BL Ht |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 5.00 | 21.90 | |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 5.00 | 21.83 | |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 5+5 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 22.70 |
| TD04HL | 49189-x | 19T | Volvo | 5+5 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 5.00 | 22.70 | |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 23.03 |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 7+7 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 22.70 |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 23.03 |
