Home > Products > turbocharger repair kits > TD04HL 19T 46.02/58.00mm 11+0 Blades 49189-X High Performance Turbocharger Milling/aluminum 2618/billet Compressor Wheel

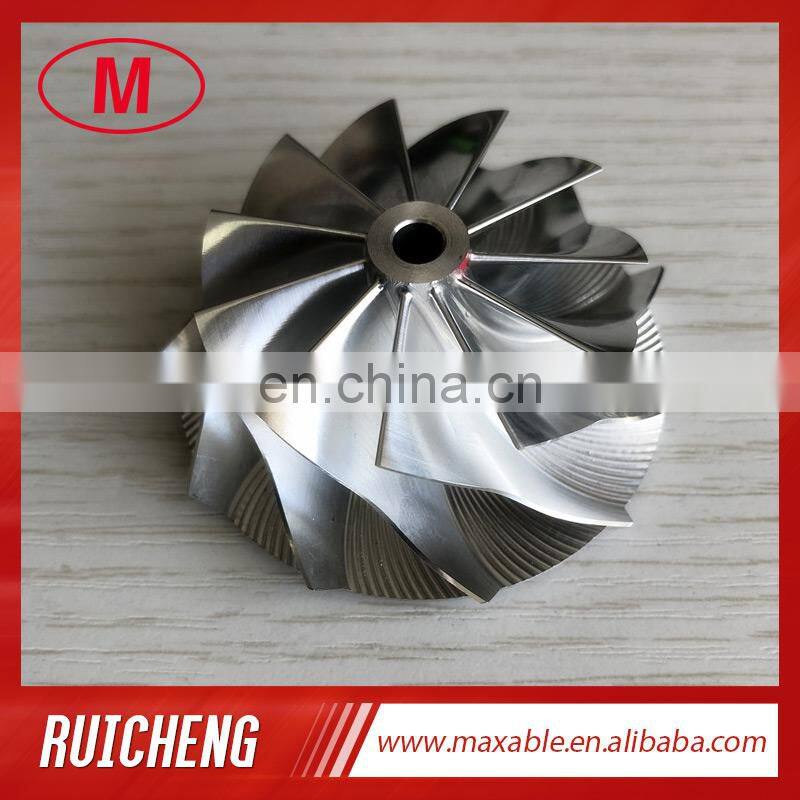

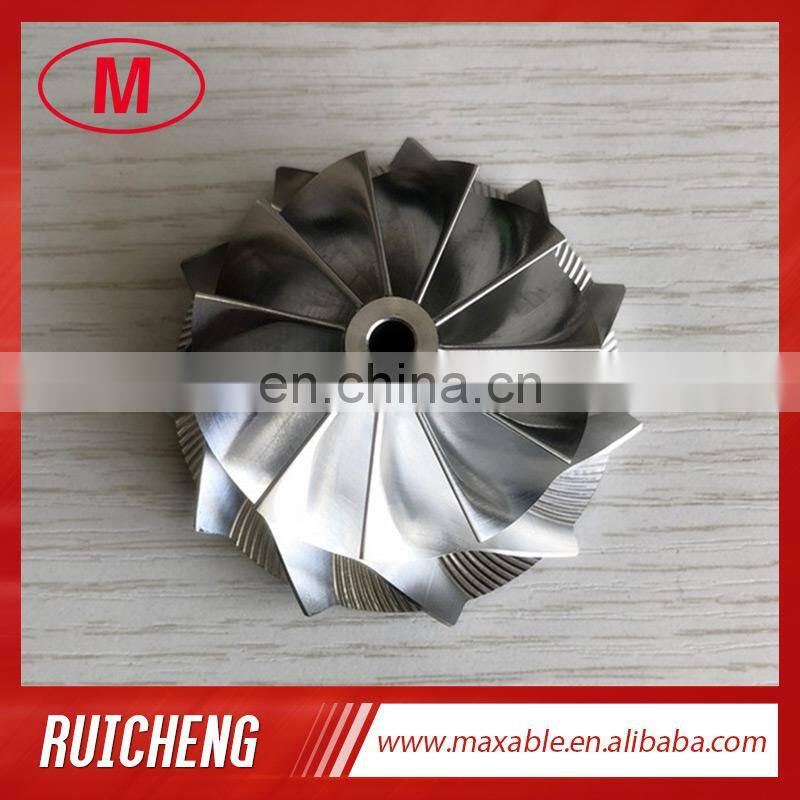

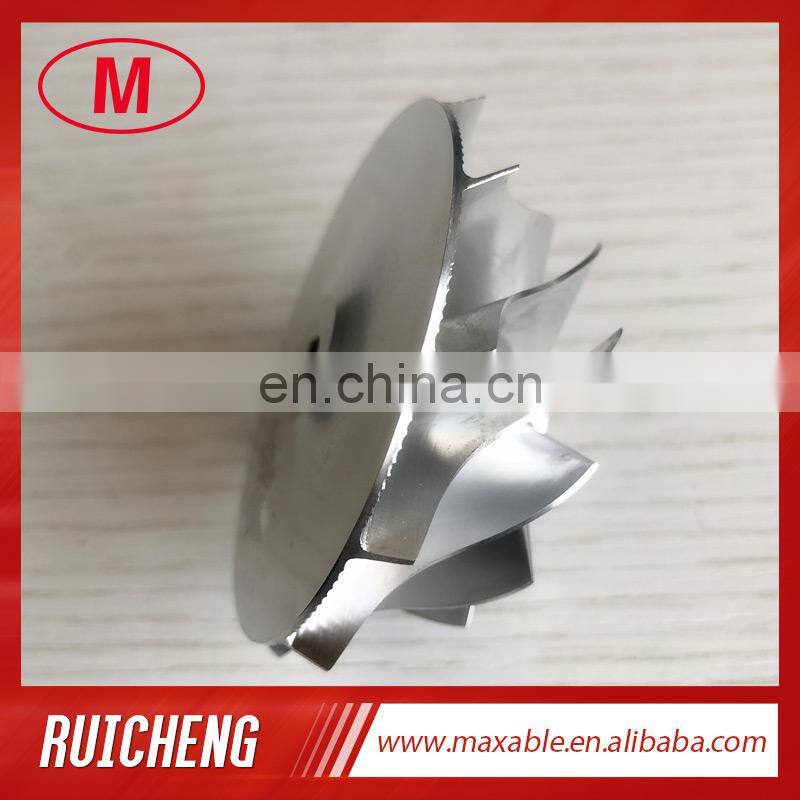

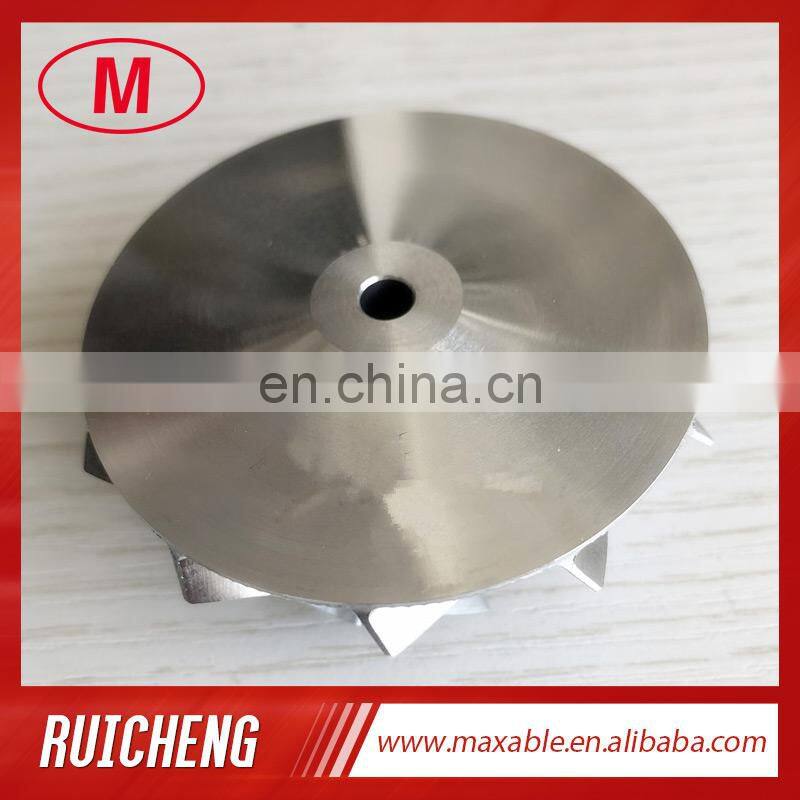

TD04HL 19T 46.02/58.00mm 11+0 Blades 49189-X High Performance Turbocharger Milling/aluminum 2618/billet Compressor Wheel
US$ 53 - 53
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
GTX3071 6+6 Blades 54.06/73.40mm Bore 5.99mm High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
-
KP31 5+5 Blades 22.10/33.00mm 5431-123-2001 High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
-
S200 50.60/75.20mm 7+7 Blades High Performance Turbo Billet/milling/aluminum 2618 Compressor Wheel
-
RHF5HB 5+5 Blades 47.20/60.00mm 93844S High Performance Turbocharger Billet/milling/aluminum 2618 Compressor Wheel for VF22
-
K04 36.00/49.97mm 5304-123-2018 6+6 Blades Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
-
K04 36.00/49.97mm 5304-123-2018 6+6 Blades High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
Product Details
| Brand Name | NO | Place of Origin | China | |
| Model Number | TD04HL | |||
| Size | 46.02/58.00mm | Car Make | VOLVO | |
| Warranty | 12 Months |
Product Description
1. MODEL:TD04HL 19T forward
2. TD04HL 19T 46.02X58.00mm 11+0 blades 49189-X performance design Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.10mm
Inducer:46.02mm
Exducer:58.00mm
Tapered tip:62.58mm
Tip height:4.97mm
Superback:1.90mm
Overall height:26.13mm
Bore size:5.00mm
Trailing angle:60
Cutback:6.0
SP Height angle:0.00
Blades height:22.74mm
Splitter height:0.00
11+0 blades
Forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application: Volvo
7.All the compressor wheel have been balanced.
| OE Model | replaces OE CW P/N | Group/MHI Short Spec | Applied to engine/vehicle | BCCW Blades | Inducer | Base exducer | Tapered TIp Exducer | Tip Height | Superback | Overall height | Bore Size | BCCW BL Ht |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 5.00 | 21.90 | |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 5.00 | 21.83 | |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 5+5 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 22.70 |
| TD04HL | 49189-x | 19T | Volvo | 5+5 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 5.00 | 22.70 | |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 23.03 |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 7+7 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 22.70 |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 23.03 |
