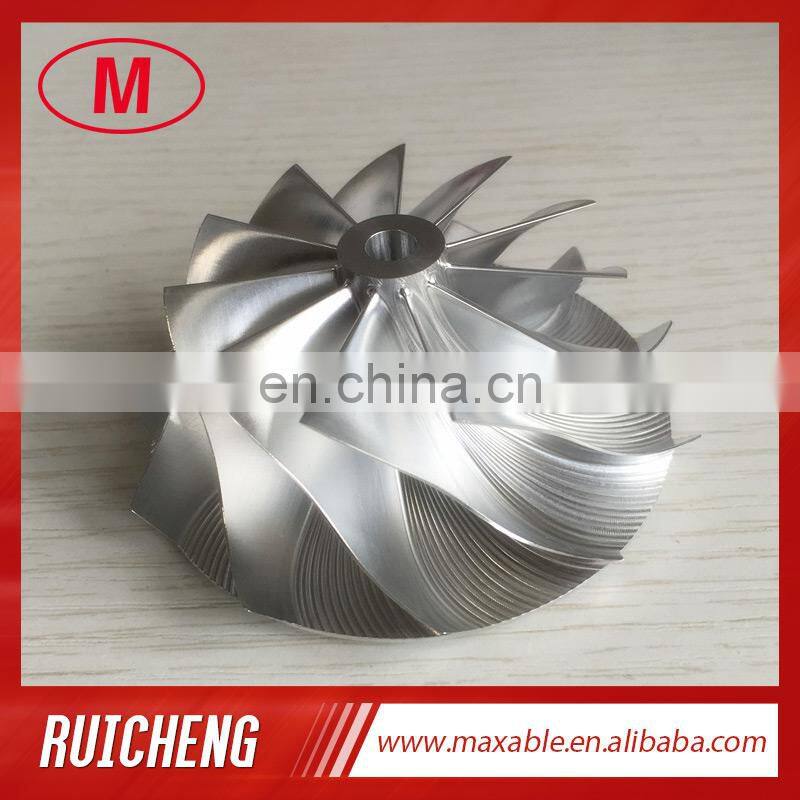

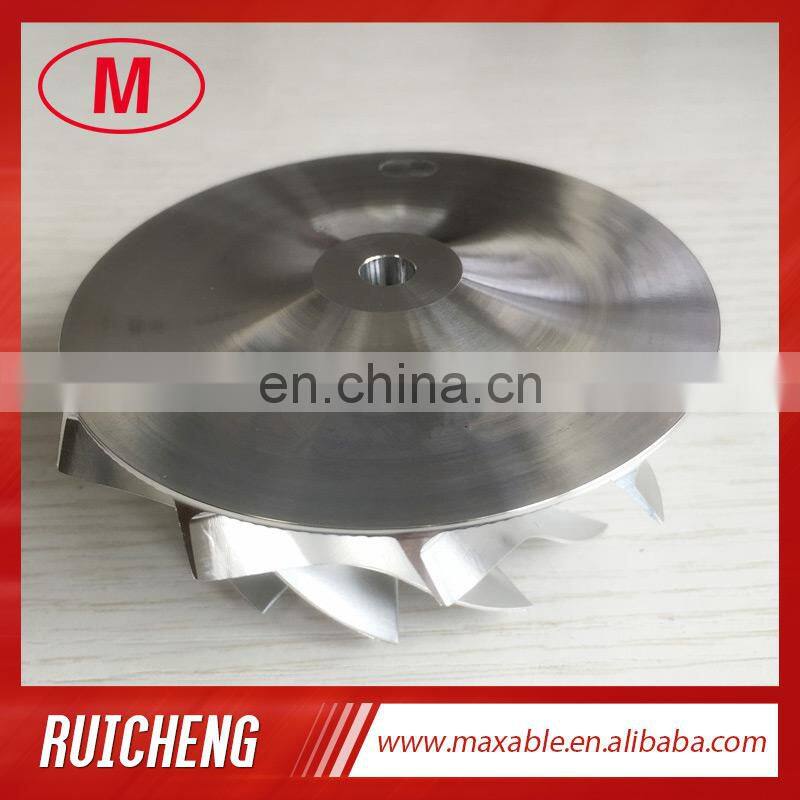

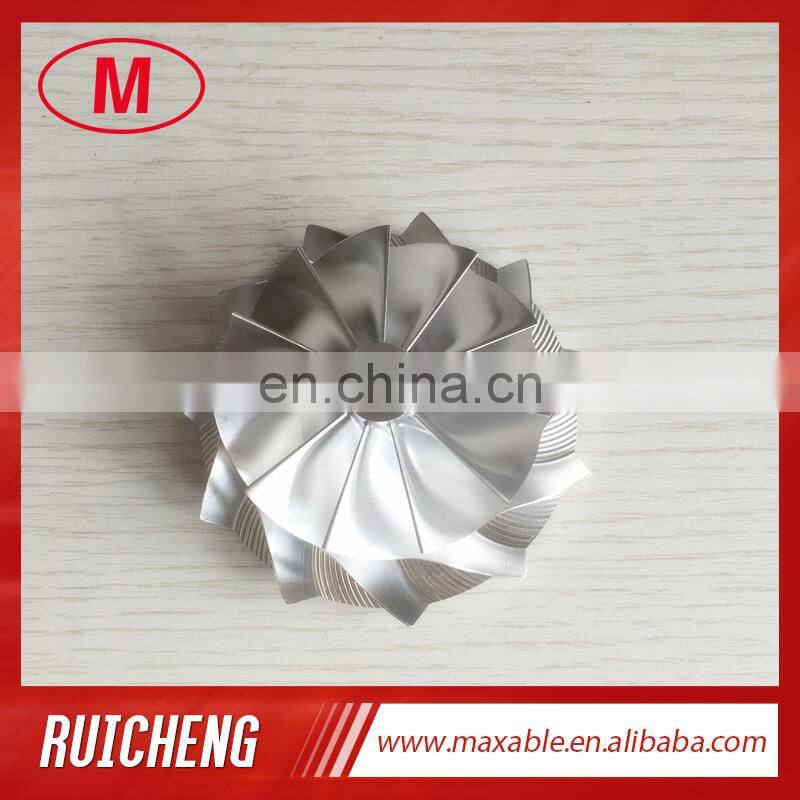

TD05H 59.05/76.13mm 11+0 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

1.  MODEL:TD05H

2. TD05H 59.05/76.13mm 11+0blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:

Inducer:59.05mm

Exducer:76.13mm

Nose diameter:13.93mm

Tapered tip exducer:83.13mm

Tip height:7.06mm

Superback:2.90mm

Overall height:34.10mm

Bore:6.50mm

Trailing angle:60mm

Blades height:28.73mm

Cutback:0.0

Sp height angle:0.00

Splitter height:0.00mm

11+0 blades

Tapered tip angle:30 degree

Forward rotation

Custom size ,please check the size carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me

We can produce as your requirement.

All the compressor wheel have been balanced.
