Home > Products > turbocharger repair kits > TD04HL 19T 46.02/58.00mm 11+0 Blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618compressor Wheel

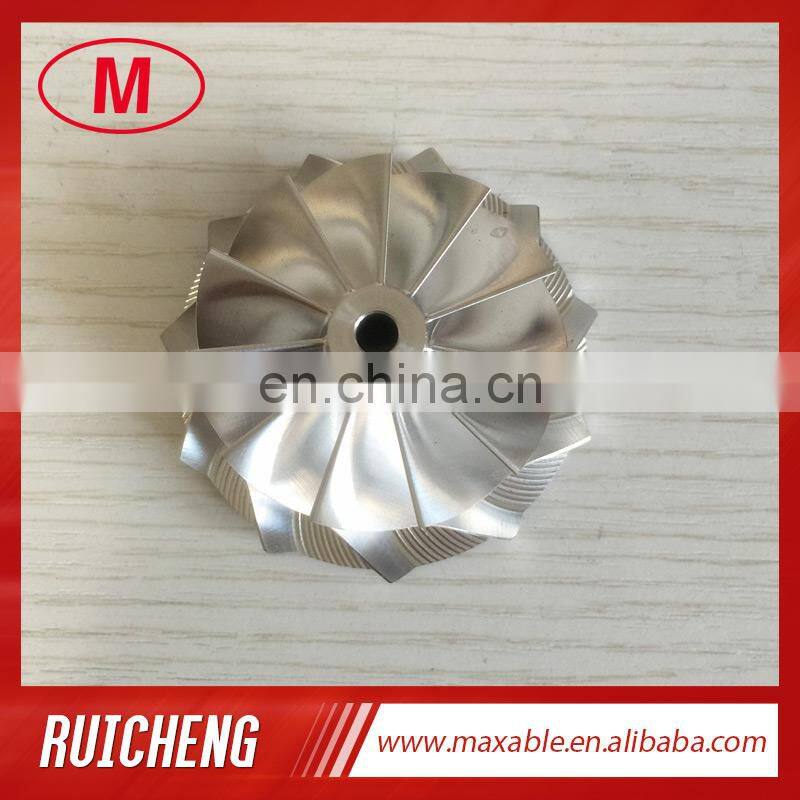

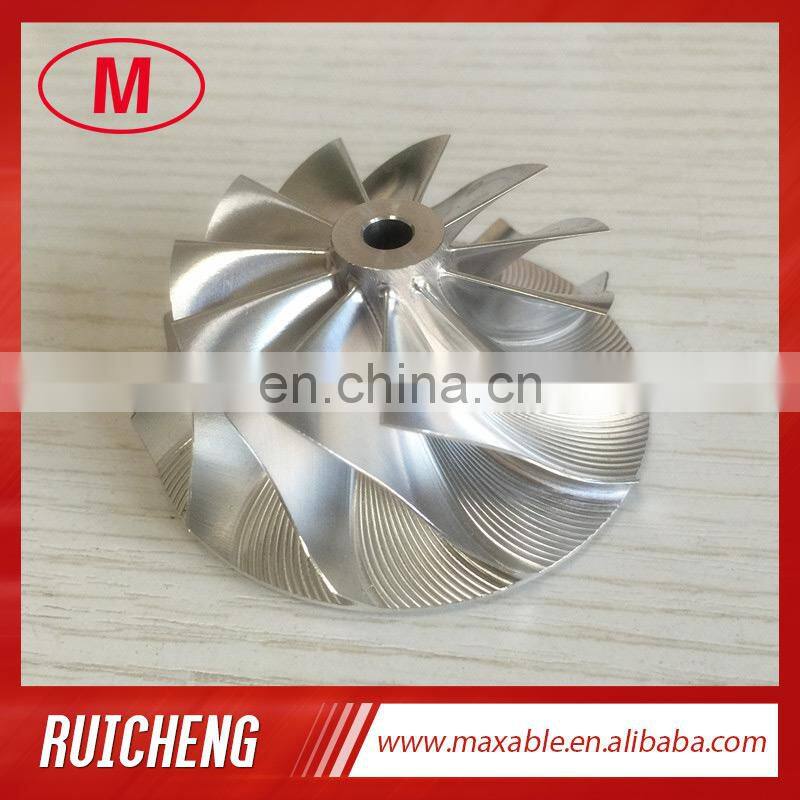

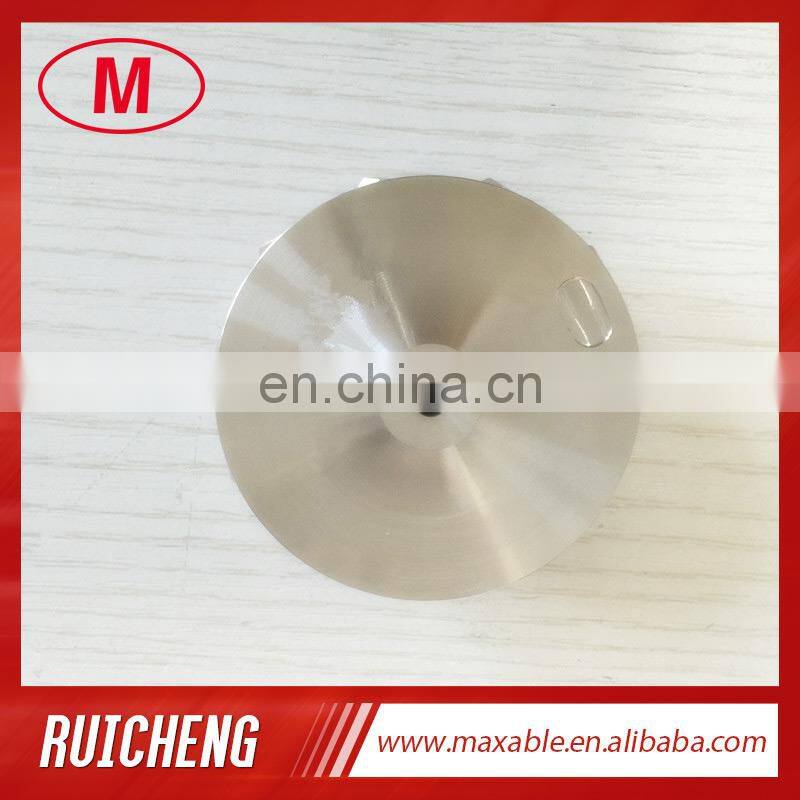

TD04HL 19T 46.02/58.00mm 11+0 Blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618compressor Wheel
US$ 42 - 42
/ Piece
10 Pieces(Min. Order)
- T/T Credit Card
You May Like
-
K04 41.94/56.08mm 5306-123-2203 1302-003-411 4+4 Blades High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
-
HY35 55.96/78.00mm 5+5 Blades High Performance Turbocharger Aluminum 2618/milling/billet Compressor Wheel
-
TD04HL 13T+ 43.61/56.02mm 49377-04200HF 6+6 Blades Turbocharger Milling/aluminum 2618/billet Compressor Wheel for SUBA*RU
-
GT15-25 720915-0004/737692-0002 44.39/60.01mm 6+6 Blades Billet/millingal /aluminum 2618 Compressor Wheel
-
RHF5 49.50/63.80mm 6+6 Blades High Performance Turbo Turbocharger Aluminum 2618/Billet/milling Compressor Wheel
-
GT15-25 Reverse 44.50/60.40mm 9+0 Blades 782847-01B High Performance Turbo Aluminum 2618/milling/billet Compressor Wheel
Product Details
| Brand Name | NO | Model Number | TD04HL | |
| Size | 46.02/58.00mm | |||
| OE NO. | TD04HL | Car Make | VOLVO | |
| Warranty | 12 Months |
Product Description
1. MODEL:TD04HL 19T
2.TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.63mm
Inducer:46.02mm
exducer:58.00mm
Tapered tip exducer:60.77mm
Tip height:5.26mm
Superback:1.90mm
Overall height:26.13mm
bore size :5.00mm
Trailing angle:60mm
Cutback:0.0
SP Height angle:0.00
Blades height:21.53mm
Splitter height:0.00mm
11+0 blades
forward rotation
Tapered tip angle:18 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
| OE Model | replaces OE CW P/N | Group/MHI Short Spec | Applied to engine/vehicle | BCCW Blades | Inducer | Base exducer | Tapered TIp Exducer | Tip Height | Superback | Overall height | Bore Size | BCCW BL Ht |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 5.00 | 21.90 | |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 5.00 | 21.83 | |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 5+5 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 22.70 |
| TD04HL | 49189-x | 19T | Volvo | 5+5 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 5.00 | 22.70 | |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 23.03 |
| TD04HL | 49189-x | 19T | Volvo | 6+6 | 46.02 | 58.00 | 60.77 | 5.26 | 1.90 | 26.13 | 5.00 | 22.40 |
| TD04HL | 49189-x | 19T | Volvo | 7+7 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 22.70 |
| TD04HL | 49189-x | 19T | Volvo | 11+0 | 46.02 | 58.00 | 62.58 | 4.97 | 1.90 | 26.13 | 5.00 | 23.03 |
