Home > Products > turbocharger repair kits > TD05H 20G 49179-43400 52.56/68.01mm 9+0 Blades High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel

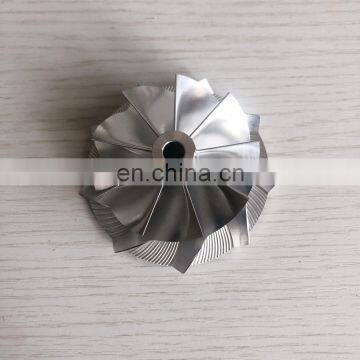

TD05H 20G 49179-43400 52.56/68.01mm 9+0 Blades High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
US$ 68 - 68
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
HE351VE 4046837/ 4046836 Variable Geometry Turbo Nozzle Ring for 2834220/ 2834603/ 3770973
-
BV40 Turbocharger Piston Ring /seal Ring Turbine Side And Compressor Side for 53039880268 53039700373 53039700341
-
BV40 Turbocharger Piston Ring/seal Ring Compressor Side for Turbo Repair Kits For 53039880268 53039700373 53039700341
-
BV40 Turbocharger Piston Ring/seal Ring Turbine Side for Turbo Repair Kits for 53039880268 53039700373 53039700341
-
BV40 Turbocharger Thrust Collar&spacer for Turbo Repair Kits for 53039880268 53039700373 53039700341
-
BV40 Turbocharger Thrust Bearing for Turbo Repair Kits for 53039880268 53039700373 53039700341
Product Details
| Brand Name | NO | Model Number | TD05H | |
| Warranty | 12 Months |
Product Description
1. MODEL:TD05H 20G foward
2.TD05H 20G 52.56/68.01mm 49179-43400 9+0 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for MITSUBISHI
3.Size:
Nose diameter:13.51mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
Trailing Angle:45
Cutback:0.0
sp Height angle:0.00
Blade height :28.90mm
Splitter height:0.00
Tapered tip Angle:30 degree
9+0 BLADES.
reverse rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
