Home > Products > turbocharger repair kits > TD04 11G-FB 49177-43300 6+6 Blades 37.90/49.00mm Turbo Milling/aluminum 2618/billet Compressor Wheel for 49177-02500

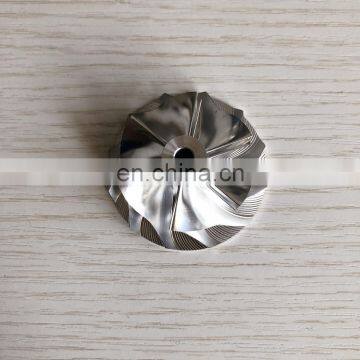

TD04 11G-FB 49177-43300 6+6 Blades 37.90/49.00mm Turbo Milling/aluminum 2618/billet Compressor Wheel for 49177-02500
US$ 23 - 23
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
KP35 29.60/41.00mm 5+5blades High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
-
KP35 29.45/41.00mm 6+6blades Turbo Milling/aluminum 2618/billet Compressor Wheel for 1000-988-0018
-
CT26 50.39/67.00mm 10+0 Blades High Performance Turbo Billet/milling/aluminum 2618 Compressor Wheel
-
GT15-25 38.62/52.19mm 729612-0005 11+0 Blades High Performance Billet/aluminum 2618/milling Turbo Compressor Wheel for MG 1.8
-
GT15-25 38.62/52.19mm 729612-0005 6+6 Blades High Performance Aluminum 2618/milling/billeteturbo Compressor Wheel for MG 1.8 76
-
K16 50.33/71.00mm 7+7blades High Performance Milling/aluminum 2618/billet Compressor Wheel
Product Details
| Brand Name | NO | Place of Origin | China | |
| Model Number | TD04 | Warranty | 12 Months |
Product Description
1. MODEL:TD04 Forward
2. TD04 11G-FB 49177-43300 6+6 blades 37.90/49.00mm Turbo Billet/Milling/aluminum 2618 compressor wheel for 49177-02500
3.Size:
Nose diameter:11.76mm
Inducer:37.90mm
Exducer:49.00mm
Tip height:4.76mm
Superback:0.00mm
Overall height:22.49mm
Bore size:5.00mm
Trailing angle:50
Cutback:0.0
SP height angle:-6.70
Blade height:18.99mm
Splitter height:13.45mm
6+6 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
We can do as your requirement .
All the compressor wheels have been balanced
