Home > Products > turbocharger repair kits > TD04HL 49.04/60.13mm 11+0 Blades High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel

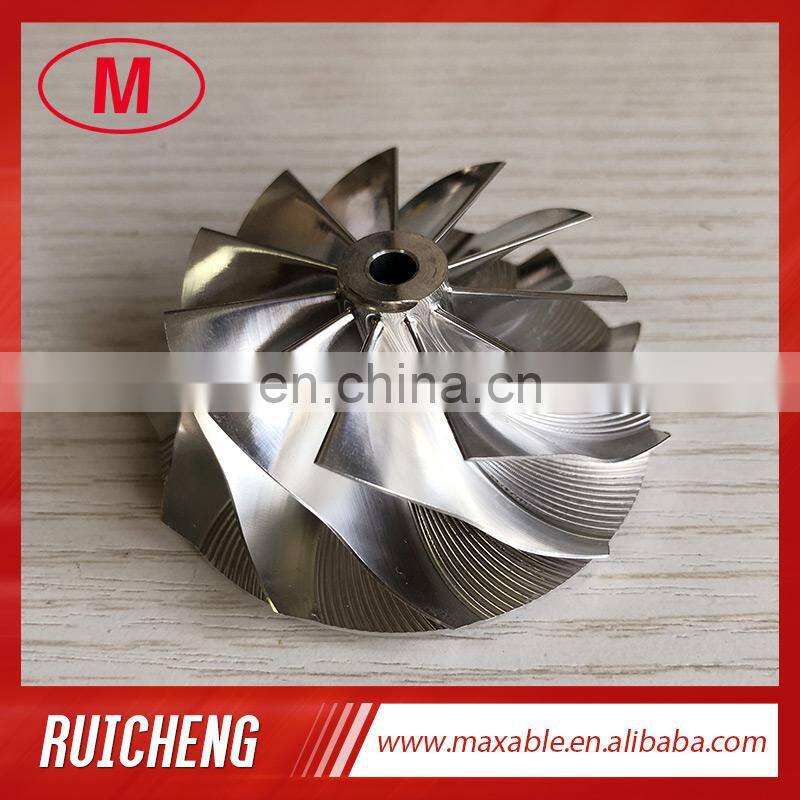

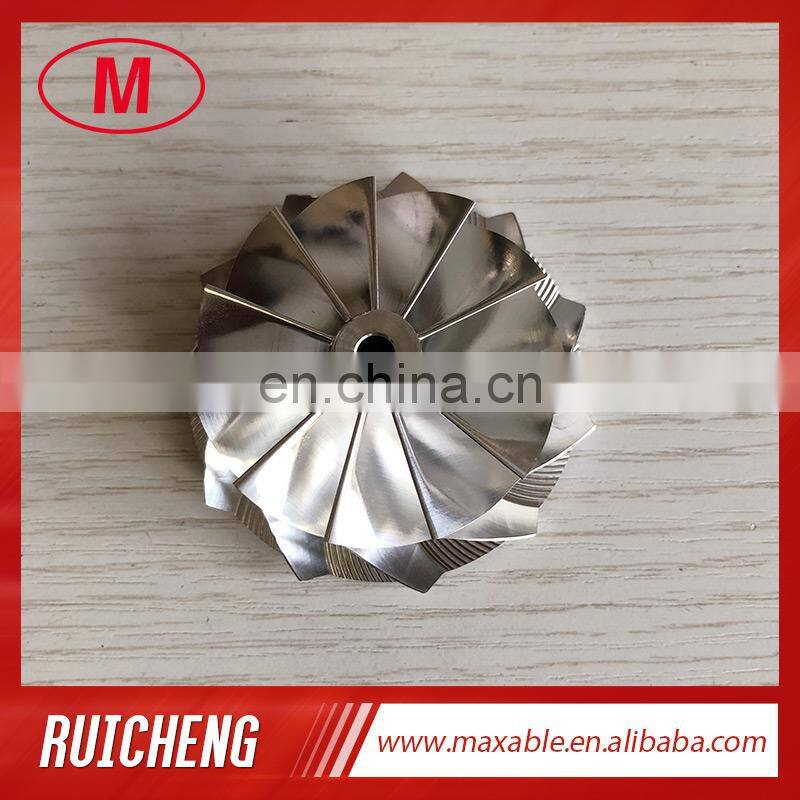

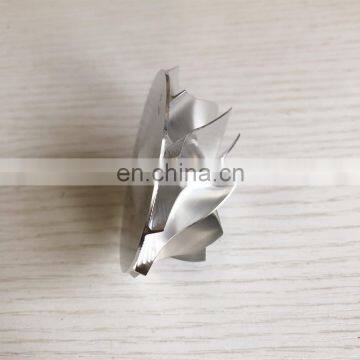

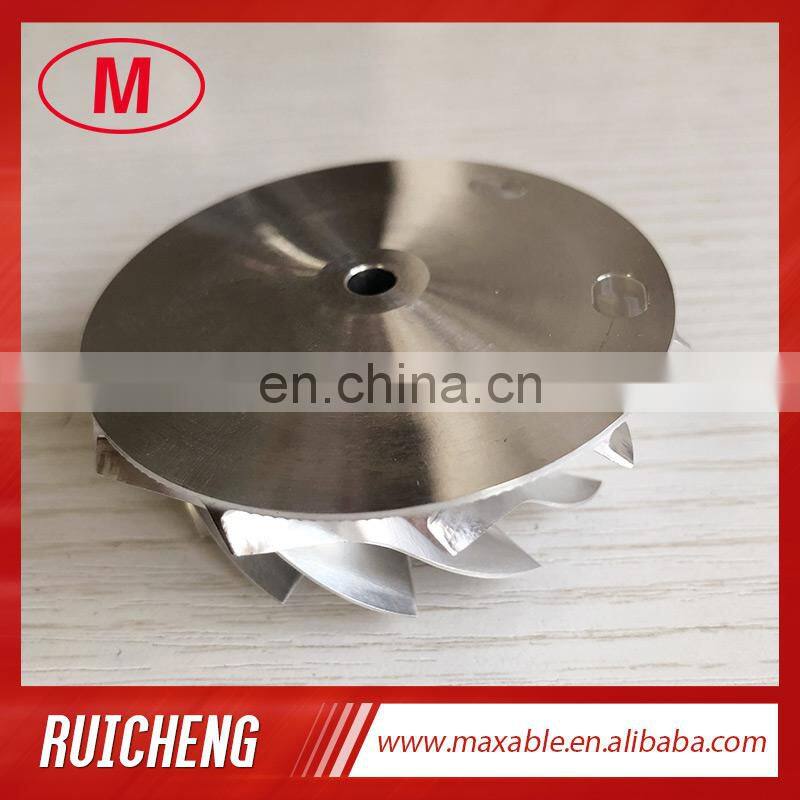

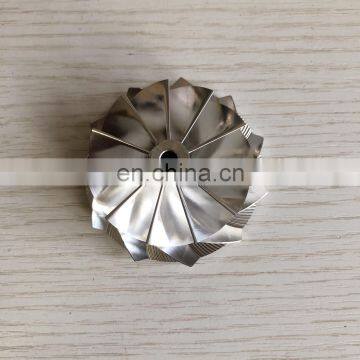

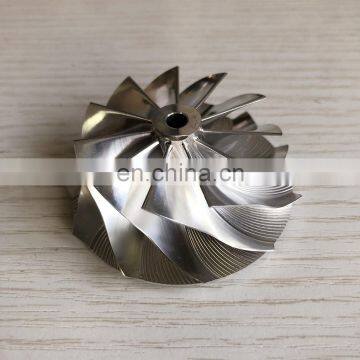

TD04HL 49.04/60.13mm 11+0 Blades High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
US$ 48 - 48
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
B03G 46.00/61.00mm 6+6 Blades Turbo Milling/aluminum 2618/billet Compressor Wheel
-
GT42 76.25/102.50mm 6+6 Blades Point Milling High Performance Turbo Milling/aluminum 2618/billet Compressor Wheel
-
HX40 11+0 Blades 67.00/89.00mm High Performance Turbo Turbocharger Milling/aluminum 2618/billet Compressor Wheel
-
K26 55.00/72.00mm 7+7 Blades Turbo Milling/aluminum 2618/billet Compressor Wheel
-
GT15-25 Reverse 46.70/59.40mm 6+6 Blades Turbocharger Milling/aluminum 2618/billet Compressor Wheel
-
CT10V 38.87/58.01mm 17291-0L040 6+6 Blades High Performance Turbo Billet/milling/aluminum 2618 Compressor Wheel
Product Details
| Brand Name | NO | Warranty | 12 Months |
Product Description
1.Model:TD04HL Forward
2.TD04HL 49.04/60.13mm 11+0 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.66mm
Inducer:49.04mm
Exducer:60.13mm
Tapered tIp exducer:63.97mm
Tip height:4.33mm
Superback:1.90mm
Overall height:26.13mm
Bore size:5.00mm
Trailing angle:75-90
Cutback:0.0
SP Height angle:0.00
Blade height:22.26mm
Splitter height:0.00mm
11+0 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size,please check carefully before buying.
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
